Fork Wall Bracket - Stainless Steel Wall Plate for Fork Attachment

Fork Wall Plate

Stainless Steel Wall Plate for Fork Attachment

Fork Wall Bracket

Available Options h
(mm)		 c
(mm)		 b
(mm)		 Ød
(mm)		 e
(mm)		 g
(mm)		 Code Price (ex VAT)
Wall Bracket - 8mm Slot 150 120 30 12 8 6 FWB-08 £44.53
Wall Bracket - 14mm Slot 262 210 53 14 14 12 FWB-14 £80.25

Stainless Steel Wall Plate for Fork Attachment

CLICK on an image to view a higher resolution image

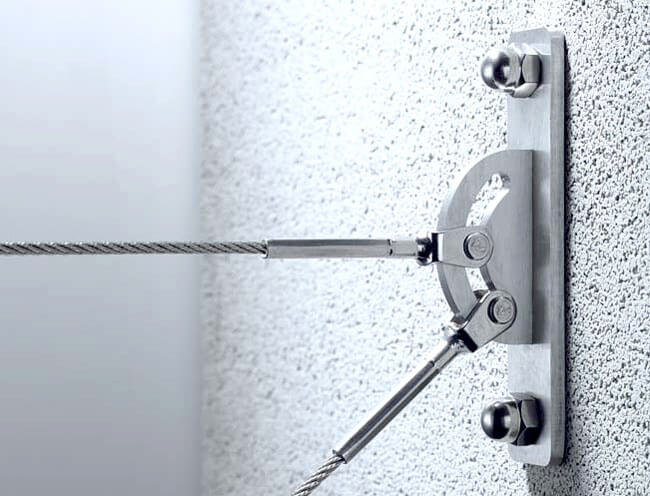

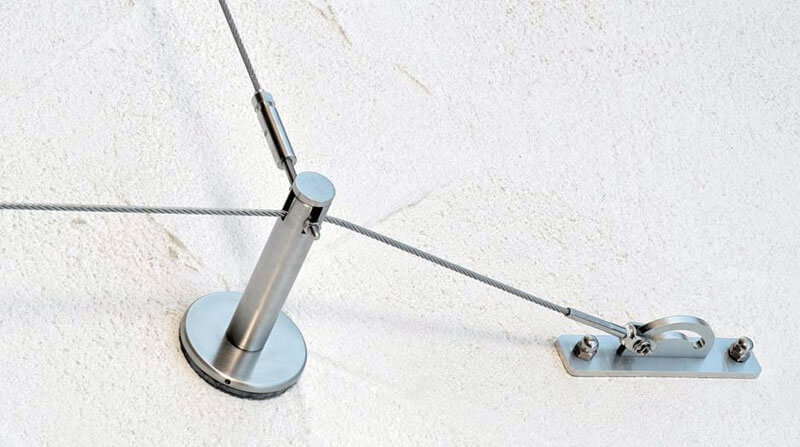

Stainless Steel Wall Plate for Fork Attachment Example Fork Wall Bracket Example

8mm Fork Bracket will suit forks with pin sizes of 4mm to 6mm

14mm Fork Bracket will suit forks with pin sizes of up to 10mm

Pre-made wire rope fork assemblies can be found here: Fork Assemblies
