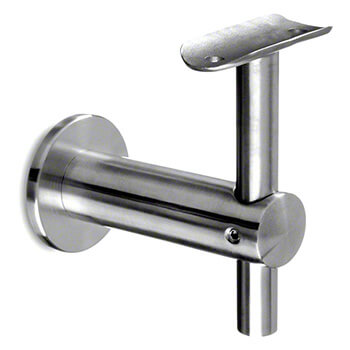

Handrail Bracket - Flat Disc to Tube Support

Stainless steel handrail bracket - flat disc mounting to tube support for modular balustrade

Flat Disc To Tube Support Handrail Bracket For Modular Stainless Steel Balustrade

Interior Use:

Handrail Bracket - Flat Disc to Tube - Modular

Available Options Grade Handrail Ø
(mm)		 Code Price (ex VAT)
42.4mm Ø, 304 Grade : 304 42.4 13.0140.042.12 £15.95
48.3mm Ø, 304 Grade : 304 48.3 13.0140.048.12 £15.95

Exterior Use:

Handrail Bracket - Flat Disc to Tube - Modular

Available Options Grade Handrail Ø
(mm)		 Code Price (ex VAT)
42.4mm Ø, 316 Grade : 316 42.4 14.0140.042.12 £20.65
48.3mm Ø, 316 Grade : 316 48.3 14.0140.048.12 £20.65
Key Features:
304 grade stainless steel Available in 304 grade (interior) stainless steel.
316 grade stainless steel Available in 316 grade (exterior) stainless steel.
To support 42.4mm diameter tube To support 42.4mm diameter stainless steel tube.
To support 48.3mm diameter tube To support 48.3mm diameter stainless steel tube.
320 grit satin finish To a superb brushed 320 grit satin finish.
Selection of fitting options available Selection of fitting options available.
Hex head key required Hex head key is required for installation - more
Drill required for installation Drill required for installation.

Stylish tubular handrail bracket support with cover disc for installation onto flat surfaces.

Designed to support 42.4mm or 48.3mm diameter tube with adjustable height stem.

Produced from high quality 304 (interior) grade and 316 (exterior) grade stainless steel to a superb brushed 320 grit satin finish.

On wood, plasterboard, masonry and concrete we recommend using a M8 x 12 dual head screw.

Height Adjustable Handrail Bracket Fixing

Fixings
M8 Dual Thread Screw

For installation on to wood, plasterboard, masonry and concrete we recommend using a M8 x 12 dual thread screw to attach this bracket - more

M5 Hex Head Button Cap Screw

For attaching stainless steel handrail we recommend using two M5 x 16 hex head button cap screws - more

Hex Head Key Sets

Use of a head head key is required for installation - more



Product Information downloads here:

CAD File (dwg)

13014004212

(Compatible software required)

PDF Data Sheet

Handrail Bracket Flat Disc To Tube Mount Information Sheet

Term/Symbol
Refers to
Relates to
316
Stainless Steel Grade
Suitable For Exterior Use
304
Stainless Steel Grade
Suitable For Interior Use
Ø
Diameter
Tube, Handrail or Fitting Diameter
