Navtec Norseman Gibb Swageless Stud Terminal
Navtec Norseman Gibb Swageless Stud

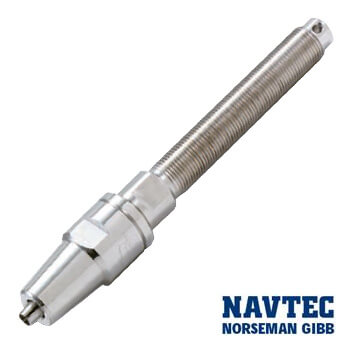

Norseman Swageless Stud - self assembly wire rope terminal
All in 316 grade stainless steel
Norseman Gibb Swageless Stud
| Available Options | Wire (mm) |
Thread (UNF) |
B (mm) |
Code | Price (ex VAT) (1x19) | |
|---|---|---|---|---|---|---|
| 2.5mm Norseman Stud : | 2.5 | 1/4 | 57 | N030-M02508 | £15.86 | |
| 3mm Norseman Stud : | 3 | 1/8 | 57 | N030-M0308 | £15.86 | |
| 4mm Norseman Stud : | 4 | 5/16 | 48 | N030-M0410 | £18.26 | |
| 5mm DS Norseman Stud : | 5 | 5/16 | 48 | N030-M0510 | £20.79 | |
| 5mm Norseman Stud : | 5 | 3/8 | 65 | N030-M0512 | £20.79 | |
| 6mm DS Norseman Stud : | 6 | 3/8 | 65 | N030-M0612 | £26.79 | |
| 6mm Norseman Stud : | 6 | 7/16 | 75 | N030-M0614 | £26.79 | |
| 6mm US Norseman Stud : | 6 | 1/2 | 83 | N030-M0616 | £26.79 | |
| 7mm Norseman Stud : | 7 | 1/2 | 83 | N030-M0716 | £31.80 | |
| 8mm DS Norseman Stud : | 8 | 1/2 | 83 | N030-M0816 | £42.65 | |
| 8mm Norseman Stud : | 8 | 5/8 | 98 | N030-M0820 | £42.65 | |
| 10mm Norseman Stud : | 10 | 5/8 | 98 | N030-M1020 | £59.90 | |
| 12mm Norseman Stud : | 12 | 3/4 | 115 | N030-M1224 | £142.53 | |
| 14mm Norseman Stud : | 14 | 7/8 | 138 | N030-M1428 | £170.55 | |
| 16mm Norseman Stud : | 16 | 1 | 155 | N030-M1632 | £199.57 | |
| 19mm Norseman Stud : | 19 | 1 1/8 | 180 | N030-M1936 | £399.17 | |
| 22mm Norseman Stud : | 22 | 1 1/4 | 200 | N030-M2240 | £498.96 | |
| 26mm Norseman Stud : | 26 | 1 3/8 | 219 | N030-M2644 | £636.17 |
Information
Norseman terminals are an ideal replacement rigging fitting.
These fittings provide a fast and secure, yet highly corrosion-resistant end fitting for all types of wire rope rigging.
They are manufactured from marine grade 316 stainless steel.
Norseman terminals can be installed rapidly at sea, making them ideal fitting for emergency repairs.
Norseman terminals can be re-used, but you must ensure a new cone is installed.
