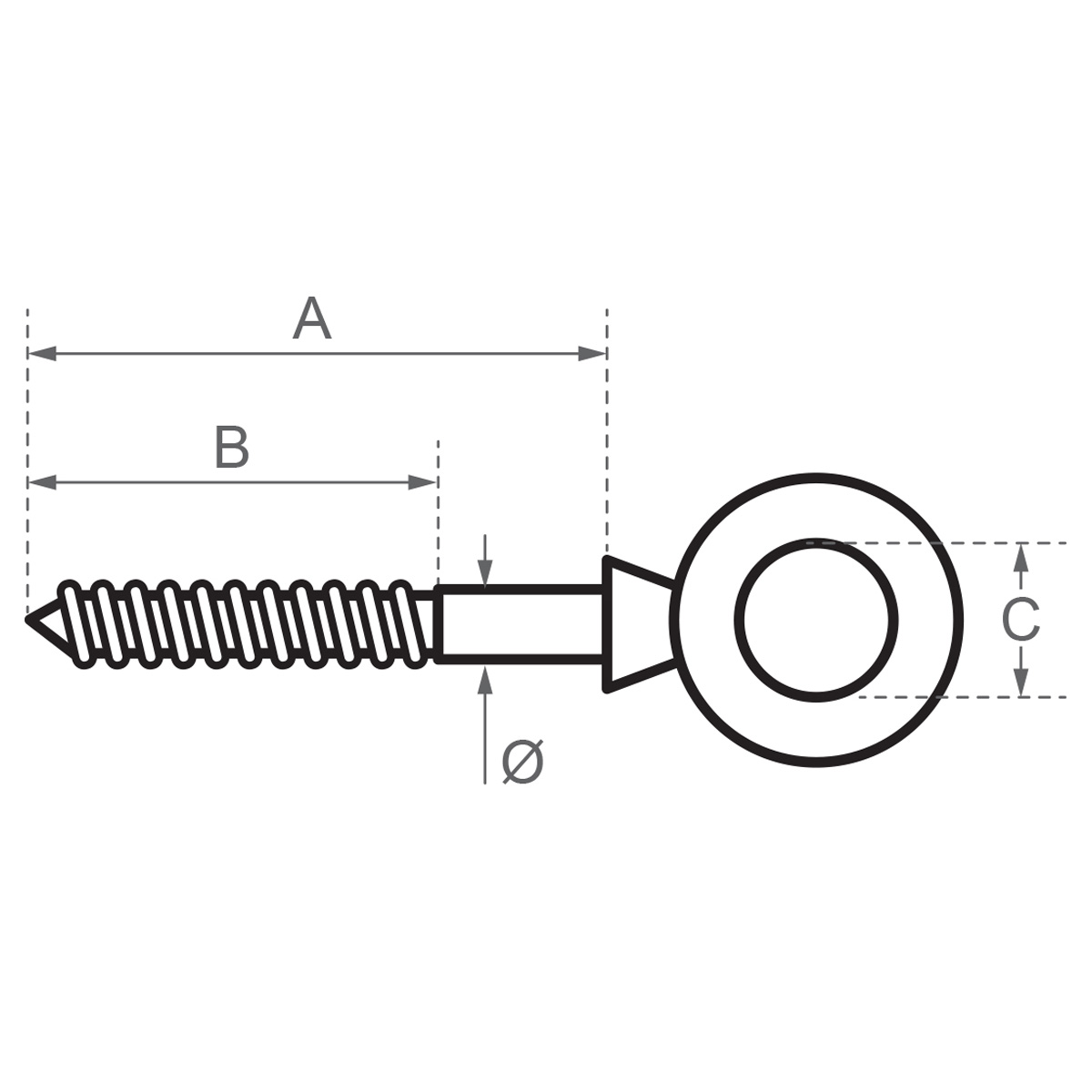

Available Options	A (mm)	B (mm)	C (mm)	Code	Price (ex VAT)
5mm x 50mm Eye Bolt :	50	20	11	EBWT-05-050	£1.47
6mm x 60mm Eye Bolt :	60	36	14	EBWT-06-060	£1.60
6mm x 100mm Eye Bolt :	100	60	14	EBWT-06-100	£1.84
8mm x 60mm Eye Bolt :	60	36	18	EBWT-08-060	£2.20
8mm x 80mm Eye Bolt :	80	50	18	EBWT-08-080	£2.45
8mm x 100mm Eye Bolt :	100	60	18	EBWT-08-100	£2.83
10mm x 80mm Eye Bolt :	80	48	22	EBWT-10-080	£4.36
10mm x 100mm Eye Bolt :	100	60	22	EBWT-10-100	£5.45

Information

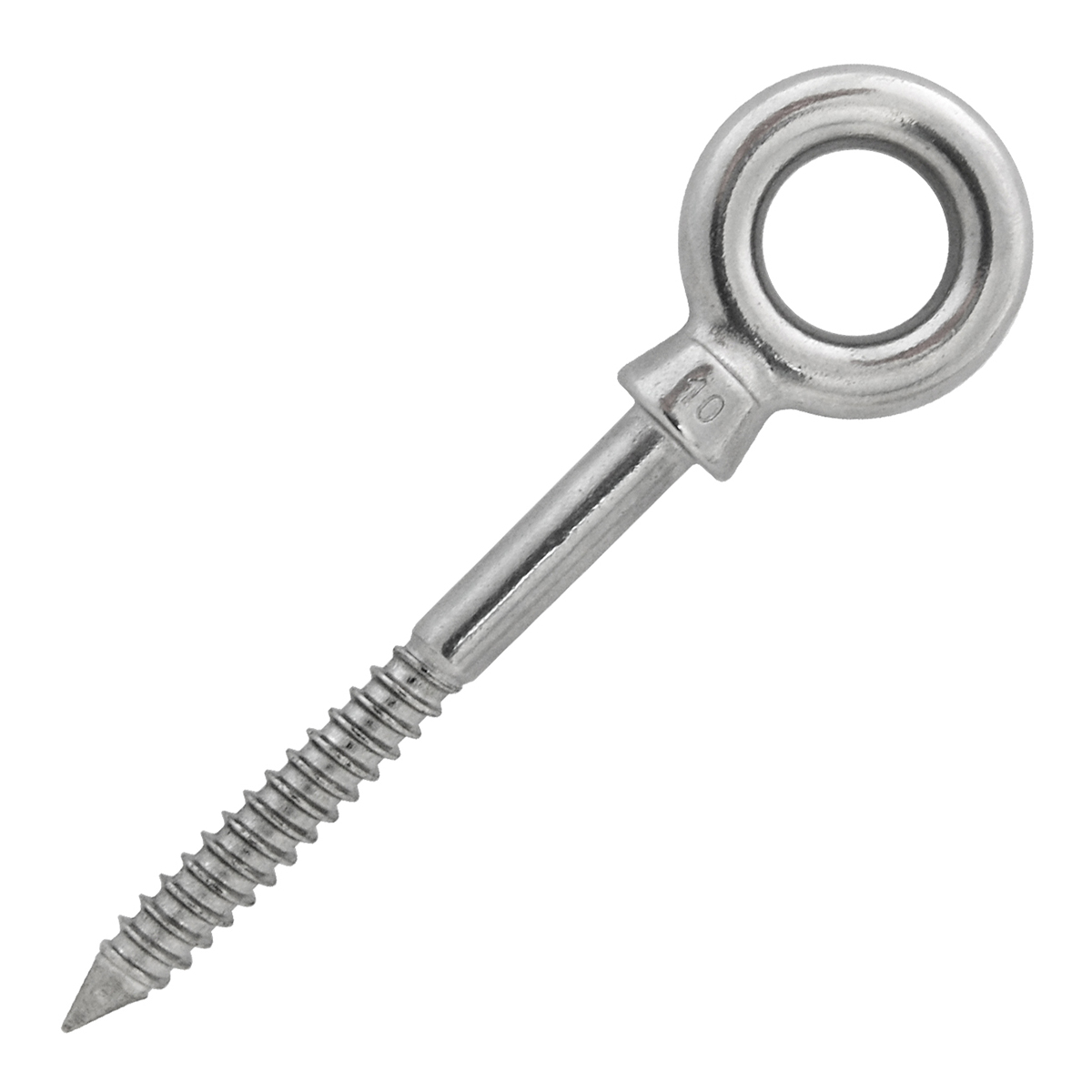

Stainless Steel Eye Bolt with wood screw thread

Wood screw thread eye bolts (also referred to as screw thread eye bolts, eye screws, or turned/bent eye lags) have a wood or lag screw thread for use in wood, masonry or lag anchors.

Eye bolts are commonly used to attach cables to objects

Often used as a plant training aid (vine eye), or to lay wire trellis.
