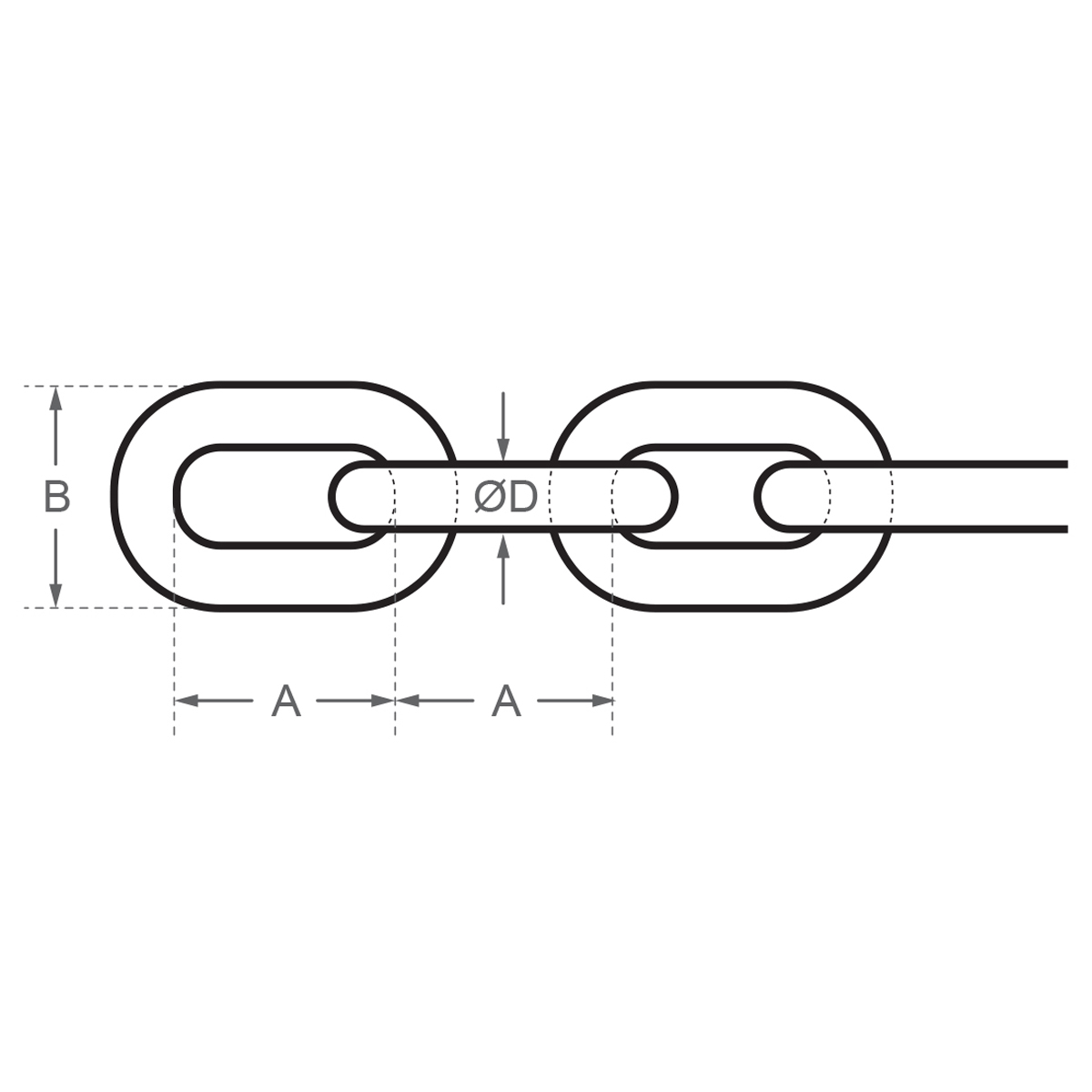

Available Options	A (mm)	B (mm)	C (mm)	SWL (Kg)	Code	Price (ex VAT)
3mm Chain (per m) :	3	12	4	90	CHS-030	£3.75
4mm Chain (per m) :	4	16	6	170	CHS-040	£6.18
5mm Chain (per m) :	5	19	7	260	CHS-050	£9.00
6mm Chain (per m) :	6	19	8	380	CHS-060	£12.90
8mm Chain (per m) :	8	24	10	670	CHS-080	£22.35
10mm Chain (per m) :	10	28	14	1040	CHS-100	£26.25
12mm Chain (per m) :	12	36	16	1800	CHS-120	£37.20
16mm Chain (per m) :	16	45	51	2400	CHS-160	£58.80
20mm Chain (per m) :	20	56	64	3750	CHS-200	£87.90

Information

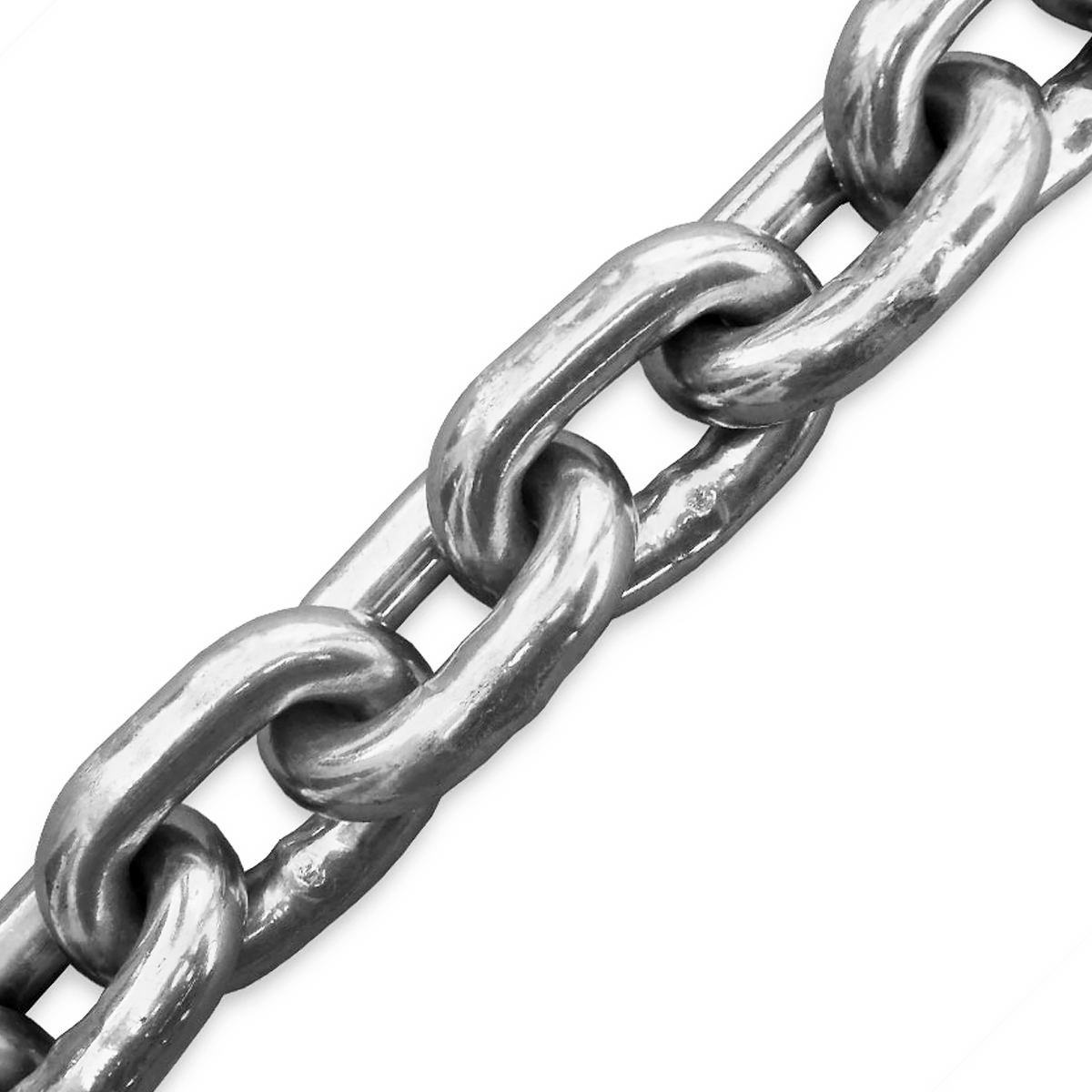

All chain in 316 grade (Marine Grade) stainless steel.

Chain is available in 1 metre lengths as either short link chain or long link chain.
