Available Options	G (mm)	B (mm)	C (mm)	A (mm)	Break Load (Kg)	Code	Price (ex VAT)
M6 x 40 Eye Bolt :	M6	40	5	16	990	CEB-M6-40	£2.28
M6 x 60 Eye Bolt :	M6	60	5	16	990	CEB-M6-60	£2.31
M6 x 80 Eye Bolt :	M6	80	5	16	990	CEB-M6-80	£2.42
M8 x 80 Eye Bolt :	M8	80	6	20	1300	CEB-M8-80	£3.39
M8 x 100 Eye Bolt :	M8	100	6	20	1300	CEB-M8-100	£3.59
M10 x 100 Eye Bolt :	M10	100	8	25	2600	CEB-M10-100	£5.40
M10 x 120 Eye Bolt :	M10	120	8	25	2600	CEB-M10-120	£5.68
M12 x 100 Eye Bolt :	M12	100	10	30	3400	CEB-M12-100	£8.19
M12 x 120 Eye Bolt :	M12	120	10	30	3400	CEB-M12-120	£8.47
M12 x 140 Eye Bolt :	M12	140	10	30	3400	CEB-M12-140	£7.88

Information

How should you select the right eye bolt?

Use plain or shoulderless eye bolts or ring bolts for vertical loading only.

Angle loading on shouderless eye bolts will bend or break them.

Use shoulder eye bolts for vertical or angle loading.

How should you use stainless steel eye bolts safely?

Orientate the eye bolt in line with the slings. If the load is applied sideways, the eye bolt may bend.

Pack washers between the shoulder and the load surface to ensure that the eye bolt firmly contacts the surface.

Ensure that the nut is properly torqued.

Engage at least 90% of threads in receiving a hole when using shims or washers.

Attach only one sling leg to each eye bolt.

Inspect and clean the eye bolt threads and the hole.

Screw the eye bolt on all the way down and properly seat.

Ensure the tapped hole for a screw eye bolt (body bolts) has a minimum depth of one-and-a-half times the bolt diameter.

Install the shoulder at right angles to the axis of the hole.

The shoulder should be in full contact with the surface of the object being lifted.

Stainless Steel Wire Rope 1x19 Stainless Steel Wire Rope 7x7 Stainless Steel Wire Rope 7x19 Stainless Steel Wire Rope PVC Coated 1x19 Stainless Steel Wire Rope PVC Coated 7x7 Stainless Steel Wire Rope 1x7 Dyform Stainless Steel Wire Rope 1x19 Dyform Stainless Steel Wire Rope 1x19 Super Duplex Stainless Steel Wire Rope Stainless Steel Wire Technical Information

Wire Rope Thimbles

Wire Rope Ferrules Copper Ferrule - Type A Copper Ferrule - Round End Stop Aluminium Ferrule - Type A Stainless Steel Ferrule - Type A Nicopress Ferrule

Wire Rope Grips Wire Rope Grip Simplex Wire Clip Duplex Wire Clip

Gripple System

Wire Cross Clamps Cross Clamp - 90 Degree Cross Clamp - Flexible Wire Stopper

Swage Wire Fittings Swage Stud - Metric Thread Swage Stud - UNF Thread Swage Stud - Inside Thread Swage Eye - Forged Style Swage Eye - Machined Style Swage Fork Swage Domehead Terminal Swage Domehead Terminal - Small Swage Stemball Swage Stemball Eye Swage Shackle Toggle Swage Strap Toggle Fork Swage Shroud Terminal Swage Universal T Fork Terminal Swage Universal T Rope Eye Terminal Swage Hook Terminal Swaging - Technical Information

Swageless Fittings Swageless Eye Swageless Fork Swageless Stud With UNF Thread Swageless Stud With Metric Thread Swageless Toggle Swageless Splice Link Swageless Assembly

Norseman Fittings Norseman Swageless Eye Norseman Swageless Fork Norseman Swageless Stud Norseman Swageless Stud - Long Norseman Cones

Shackles - Marine D Shackle - Standard Pin D Shackle - Shake Proof Pin D Shackle - Socket Head Pin High Resistance D Shackle Wide D Shackle Long D Shackle - Standard Pin Long D Shackle - Shake Proof Pin Long D Shackle - Socket Head Pin Bow Shackle - Standard Pin Bow Shackle - Shake Proof Pin Bow Shackle - Socket Head Pin Twist Shackle - Standard Pin Twist Shackle - Shake Proof Pin Twist Shackle - Socket Head Pin Long Twist Shackle - Standard Pin Long Twist Shackle - Shake Proof Pin Long Twist Shackle - Socket Head Pin Key Pin Shackle Key Pin Shackle with Bar Shackle Key - Solid Shackle Testing & Certification

Shackles - Lifting Lifting D Shackle - High Tensile - Standard Pin Lifting D Shackle - High Tensile - Long Safety Pin Lifting D Shackle - High Tensile - Socket Head Pin Lifting Bow Shackle - High Tensile - Standard Pin Lifting Bow Shackle - High Tensile - Long Safety Pin Lifting Bow Shackle - High Tensile - Socket Head Pin Lifting Shackle Technical Information

Shackles - Safety D Shackle with E Type Safety Pin Bow Shackle with E Type Safety Pin

Shackles - Strip D Strip Shackle Key Pin Strip Shackle Slotted D Strip Shackle Key Pin Bar Strip Shackle Bow Strip Shackle Twisted Strip Shackle

Turnbuckles - Closed Body Turnbuckle Body Metric Turnbuckle Body UNF Thread Turnbuckle Fork - Blank Turnbuckle Swage Stud - Swage Stud Turnbuckle Fork - Swage Stud Turnbuckle Fork - Fork Turnbuckle Fork - Eye Turnbuckle Eye - Blank Turnbuckle Eye - Eye Turnbuckle Eye - Swage Stud Turnbuckle Toggle - Blank Turnbuckle Toggle - Swage Stud Turnbuckle Toggle - Fork Turnbuckle Fork - Swageless Fitting Turnbuckle Toggle - Swageless Fitting

Turnbuckles - Open Body Hook-Eye Open Turnbuckle Hook-Hook Open Turnbuckle Eye-Eye Open Turnbuckle

Sta-lok Turnbuckles Sta-Lok Turnbuckle Toggle and Blank Sta-Lok Turnbuckle Toggle and Swage Sta-Lok Turnbuckle Toggle and Fork Sta-Lok Turnbuckle Toggle and Sta-lok Sta-Lok Turnbuckle Toggle and Toggle Sta-Lok Turnbuckle Fork and Blank Sta-Lok Turnbuckle Fork and Swage Sta-Lok Turnbuckle Fork and Sta-lok Sta-Lok Turnbuckle Fork and Fork

Turnbuckles - Marine Body Marine Body Turnbuckle Body Only Marine Body Turnbuckle Eye - Swage Stud Marine Body Turnbuckle Eye - Eye Marine Body Turnbuckle Fork - Eye Marine Body Turnbuckle Fork - Swage Stud Marine Body Turnbuckle Fork - Fork Marine Body Turnbuckle Swage Stud - Swage Stud Marine Body Turnbuckle Toggle - Fork Marine Body Turnbuckle Toggle - Stud

Turnbuckles - FAQ

Threaded Fittings Threaded Eye Stud UNF Threaded Eye Stud Metric Threaded Fork Stud UNF Threaded Fork Stud Metric Threaded Strap Toggle Stud UNF Threaded Shackle Toggle Stud UNF Dual Thread Screw Double Threaded Pin Inside Thread Domehead

Eye Bolts & Eye Nuts Lifting Eye Bolt Lifting Eye Nut Commercial Eye Bolt Commercial Eye Nut Collared Eye Bolt Collared Ring Bolt Woodscrew Thread Eye Bolt Screw Eye

Nuts & Washers Full Nut Lock Nut Metric Lock Nut UNF Nyloc Nut Dome Nut Washer Penny Washer Threaded Rod

Rings & Pins Split Ring Round Ring D Ring Split Pin (Cotter Pin) Beta Pin Clevis Pin Clevis Pin - Double Head S Hook

Carbine Hooks Carbine Hook No Eye Carbine Hook With Eye Carbine Hook Screw Lock Kong Carbine Hook No Eye - Tested Kong Carbine Hook With Eye - Tested Kong Carbine Hook Asymmetric With Eye - Tested Kong Carbine Hook Asymmetric Screw Lock - Tested Wichard Carbine Hook Standard Wichard Carbine Hook Asymmetric Wichard Carbine Hook Delta

Maillon Rapide Links Standard Quick Link Maillon Rapide Standard Maillon Rapide Large Mouth Maillon Rapide Delta

Snap Shackles Snap Shackle Fixed Eye Snap Shackle Swivel Eye Snap Shackle Swivel Fork

Snap Hooks Spring Snap Hook Wichard Snap Hook Wichard Safety Snap Hook HR Wichard Webbing Snap Hook Swivel Eye Snap Hook Fixed Eye Boat Snap Swivel Eye Boat Snap

Swivels Eye - Eye Swivel Jaw - Eye Swivel Jaw - Jaw Swivel

Guardrail Fittings Lifeline Terminal Fixed Welded Eye Removable Eye Inside Threaded Eye Short Threaded Stud UNF Short Threaded Stud Metric Single Threaded Guardrail Eye Double Threaded Guardrail Eye

Pelican Hooks Pelican Hook with Ring Threaded Pelican Hook

U Bolts

Pad Eyes & Plates Diamond Pad Eye Diamond Ring Pad Eye Long Pad Eye Round Pad Eye Square Pad Eye Square Ring Pad Eye Wichard Universal Pad Eye Wichard Folding Pad Eye Wichard Double Pad Eye Round Hook Pad Eye Round Stud Pad Eye

Deck Cleats Halyard Cleat Low Flat Cleat - 2 Hole Low Flat Cleat - 4 Hole Hollow Base Cleat - 4 Hole

Lacing Eye Lacing Eye Strip Lacing Eye

Tufnol Marine Blocks Tufnol Marine Blocks - Single Sheave Tufnol Marine Blocks - Double Sheave Tufnol Marine Blocks - Treble Sheave

Tufnol Lifting Blocks Tufnol Lifting Block Single Sheave Tufnol Lifting Block Double Sheave

Rigging Toggles Double Jaw Toggle Eye Jaw Bar Toggle

Chain Short Link Chain Long Link Chain

Chain Grab Hooks Chain Grab Hook - Eye Chain Grab Hook - Pin Kong Chain Gripper

Rigging Insulator

Quick contact
Name:
Email:
Question:

Empty basket

You haven't added anything into your basket yet

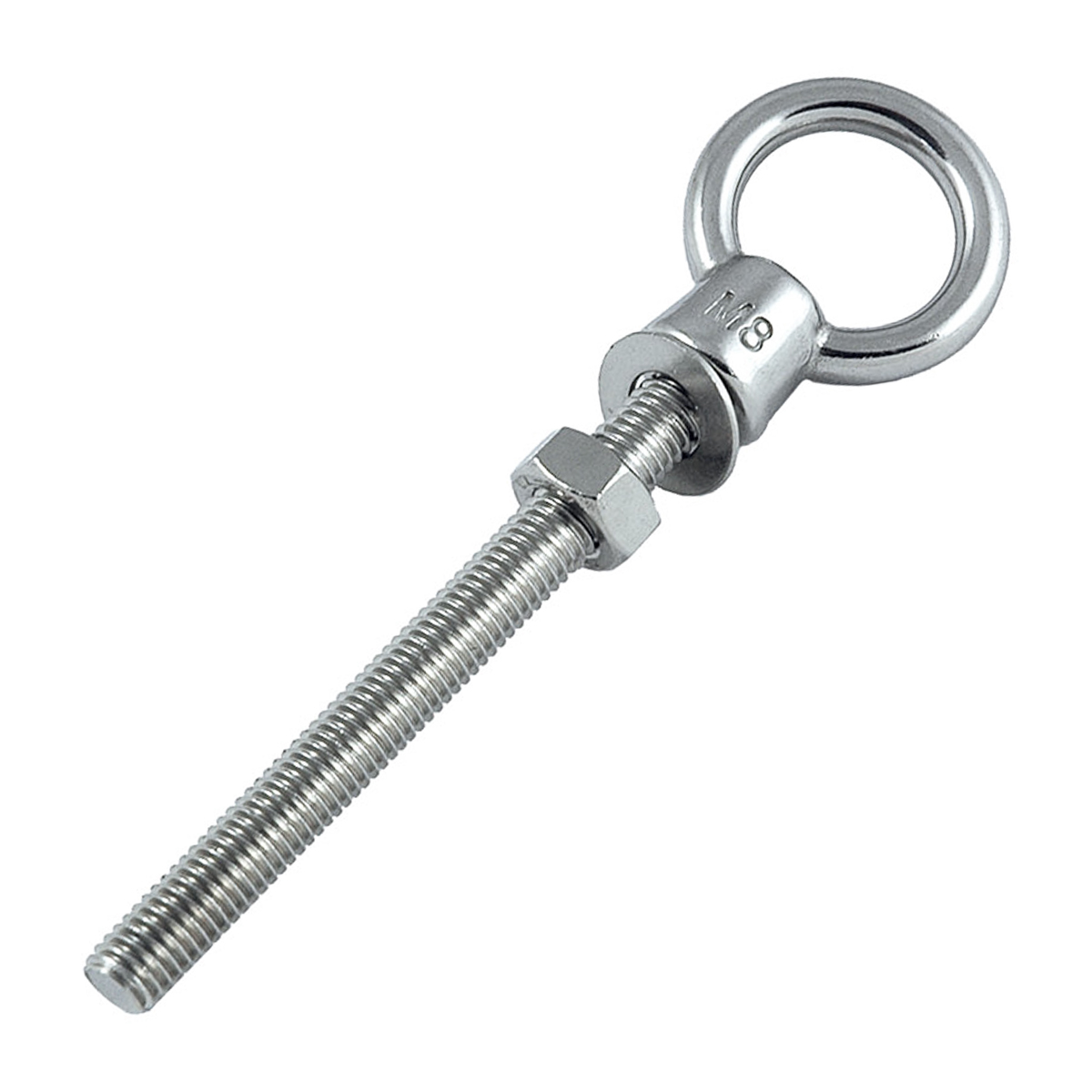

Commercial Eye Bolt
