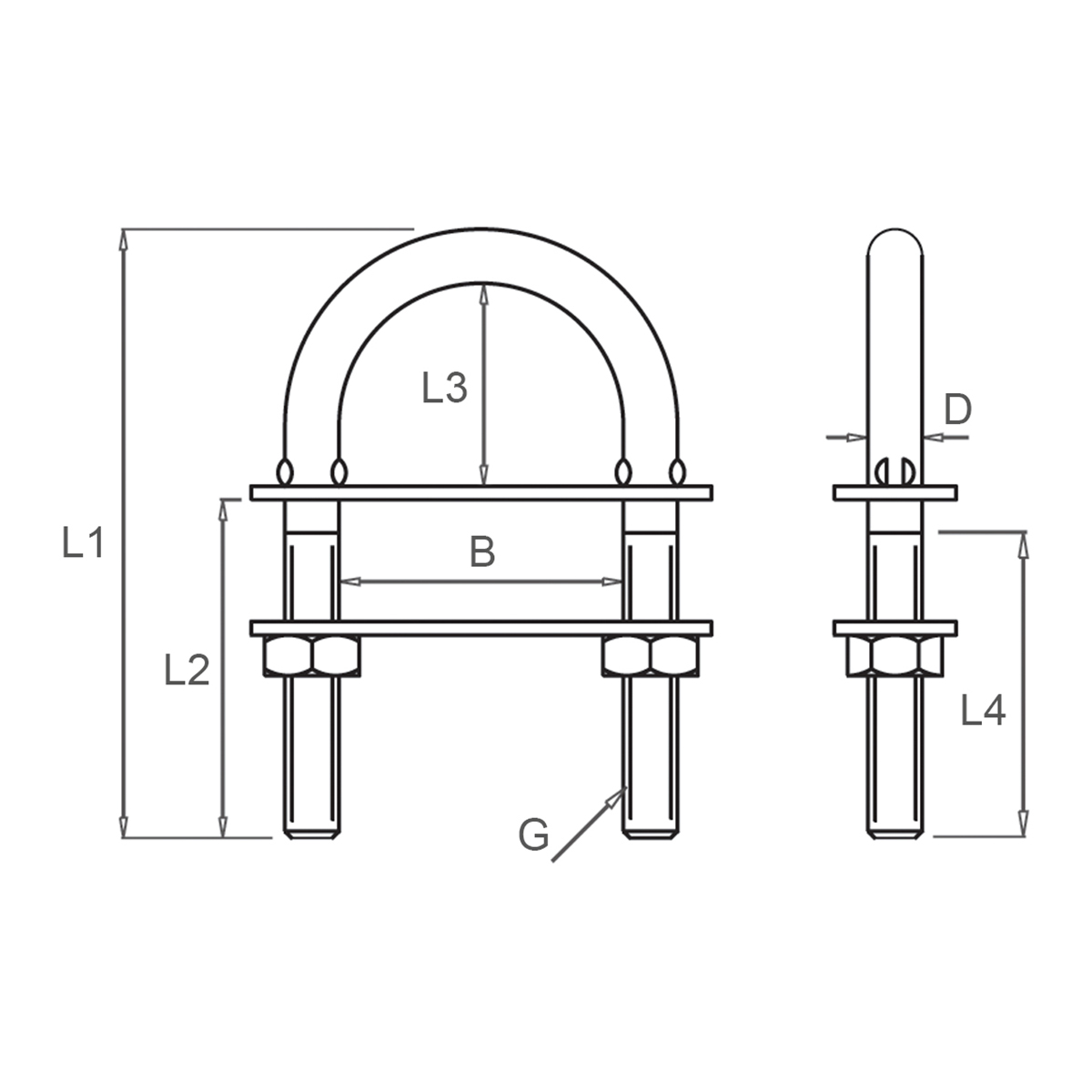

Available Options	G (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	B (mm)	D (mm)	Break Load (Kg)	Code	Price (ex VAT)
M4 x 35 U Bolt :	M4	66	35	25	30	26	4	750	UB-M4-035	£3.98
M5 x 35 U Bolt :	M5	67	35	25	30	25	4.4	900	UB-M5-035	£3.45
M6 x 35 U Bolt :	M6	67	35	26	30	27	5.3	1250	UB-M6-035	£3.70
M6 x 50 U Bolt :	M6	84	50	26	30	27	5.3	1250	UB-M6-050	£3.98
M8 x 35 U Bolt :	M8	71	35	26	30	25	7.1	1750	UB-M8-035	£4.76
M8 x 50 U Bolt :	M8	86	50	26	30	25	7.1	1750	UB-M8-050	£5.29
M8 x 80 U Bolt :	M8	116	80	26	45	25	7.1	1750	UB-M8-080	£5.84
M10 x 45 U Bolt :	M10	95	45	40	40	30	10	3500	UB-M10-045	£9.00
M10 x 60 U Bolt :	M10	110	60	40	35	30	10	3500	UB-M10-060	£9.28
M10 x 100 U Bolt :	M10	150	100	40	85	30	10	3500	UB-M10-100	£11.12
M12 x 80 U Bolt :	M12	122	80	30	85	35	10.8	5100	UB-M12-080	£13.82

Information

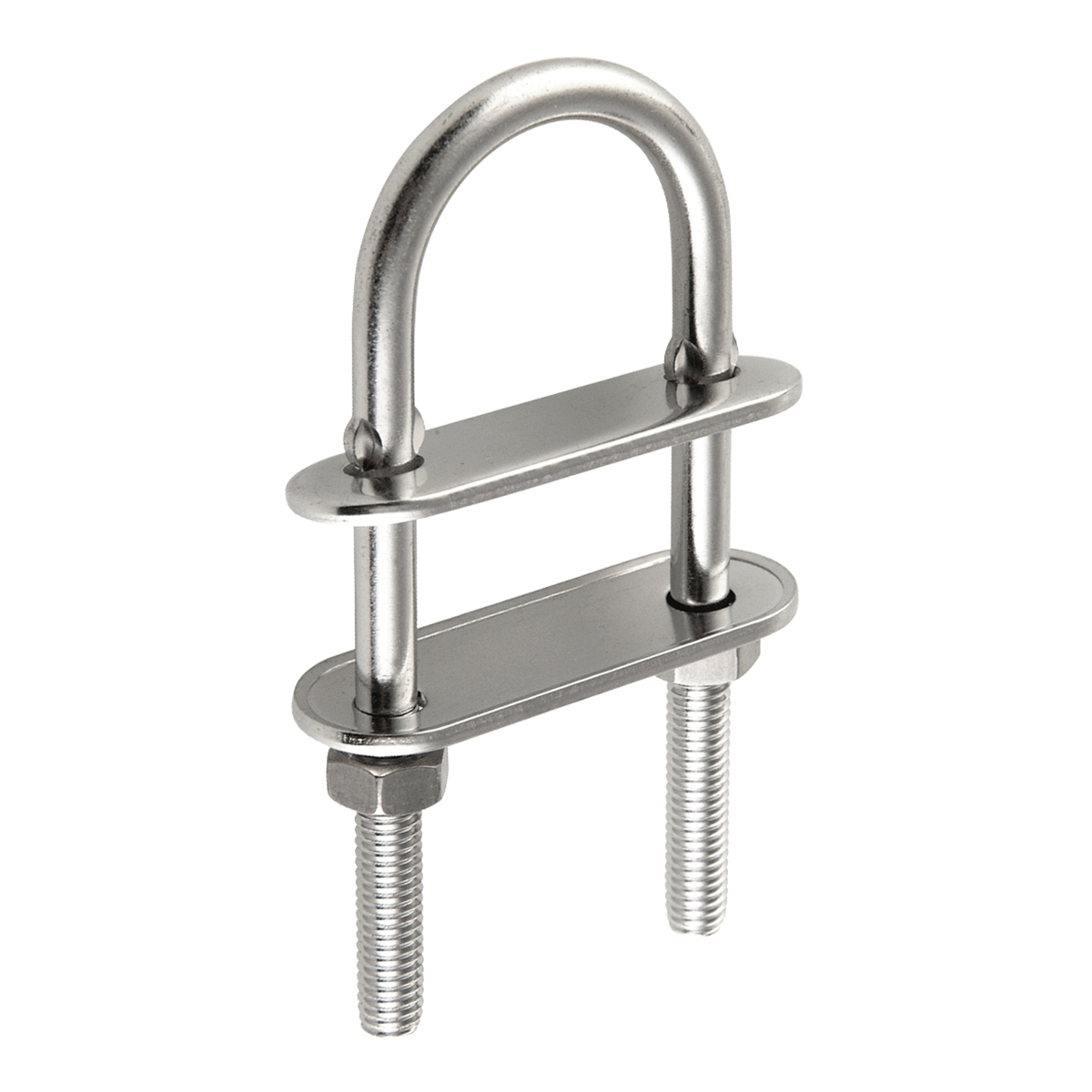

Stainless steel, marine grade 316, U-bolt with nuts, washers and backing plate.

Traditional marine U-bolts may be used where an eyebolt would be too small or extra strength is required.

Users are responsible for choosing the proper cable diameter and for correct assembly.

Commonly used as deck hardware.

All breakloads are determined by the threads.
