Bow Shackles - Bow Shackle - Stainless Steel Marine Grade 316, Forged Marine Shackle
Bow Shackle - Standard Pin

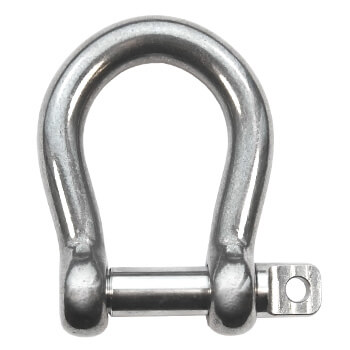

Stainless Steel Bow Shackle with standard pin.
All in marine grade 316 stainless steel.
Bow Shackle
| Available Options | P (mm) |
B (mm) |
J (mm) |
W (mm) |
L (mm) |
Break Load (Kg) |
Code | Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|---|
| 4mm Bow Shackle : | 4 | 4 | 8 | 12 | 18 | 600 | B-040-A | £1.91 | |
| 5mm Bow Shackle : | 5 | 5 | 10 | 16 | 22 | 1200 | B-050-A | £2.13 | |
| 6mm Bow Shackle : | 6 | 6 | 13 | 19 | 28 | 1600 | B-060-A | £2.59 | |
| 8mm Bow Shackle : | 8 | 8 | 16 | 25 | 35 | 2400 | B-080-A | £3.57 | |
| 10mm Bow Shackle : | 9.5 | 9.5 | 19 | 28 | 38 | 3800 | B-100-A | £5.53 | |
| 11mm Bow Shackle : | 11 | 11 | 22 | 33 | 46 | 4800 | B-110-A | £7.17 | |
| 12mm Bow Shackle : | 12.7 | 12.7 | 26 | 38 | 52 | 6000 | B-120-A | £11.22 | |
| 16mm Bow Shackle : | 16 | 14.3 | 29 | 43 | 60 | 8000 | B-160-A | £23.39 | |
| 19mm Bow Shackle : | 19 | 16 | 32 | 50 | 68 | 10000 | B-190-A | £26.41 |
Pin Options
Type A. Standard (Std) Pin for Marine Shackles
Information
Our Bow shackles are manufactured by electrical upset methods.
All our bow shackles are made in the UK, and are supplied highly polished.
Should you require your marine bow shackle tested, certified and marked with its Safe Working Load (SWL), please call and this can be arranged.
Testing
Marine bow shackles Tested & Certified To BS EN 10203 3.1b
If you require our bow shackles tested & certified, please contact us, and we will be happy to carry this out.
Once Tested, they are individually marked with a batch reference number and a Safe Working Load (SWL). A certificate will be issued.
They will comply with lifting equipment regulations.
There is a one off set-up charge of £60.00 plus £0.90 per shackle to carry this out. (Excluding VAT)
Please call to discuss your requirement
