Pre-drilled Stainless Steel Balustrade CORNER Post, Modular System

Modular balustrade corner post available for interior or exterior use

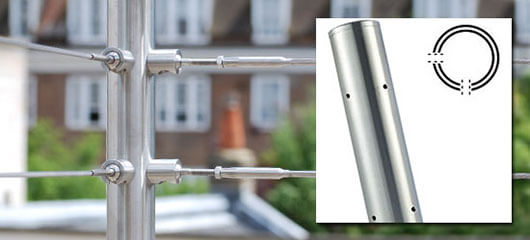

Stainless Steel Balustrade Corner Post

Interior Use:

Balustrade Corner Post - Modular

Available Options Grade Post Ø
(mm)		 Height
(mm)		 Hole Thread Hole Spacing
(mm)		 B
(mm)		 Code Price (ex VAT)
42.4mm Ø, 304 : 304 42.4 979 M6 100 75 MOD-CP-42-13 £88.68
48.3mm Ø, 304 : 304 48.3 979 M6 100 80 MOD-CP-48-13 £89.82

Exterior Use:

Balustrade Corner Post - Modular

Available Options Grade Post Ø
(mm)		 Height
(mm)		 Hole Thread Hole Spacing
(mm)		 B
(mm)		 Code Price (ex VAT)
42.4mm Ø, 316 : 316 42.4 979 M6 100 75 MOD-CP-42-14 £99.99
48.3mm Ø, 316 : 316 48.3 979 M6 100 80 MOD-CP-48-14 £108.60
Key Features:
304 Grade Available in 304 (interior) grade stainless steel.
316 Grade Available in 316 (exterior) grade stainless steel.
Tube Diameter 42.4mm Available in 42.4mm Tube diameter.
Tube Diameter 48.3mm Available in 48.3mm Tube diameter.
320 grit satin finish 320 grit satin finish.

The modular corner post comes with 18 pre-drilled threaded holes situated at 90 degrees from the post centre; placed at 100mm centres to support our cable railing infill system.

The post height is set to 979mm so that, with a saddle and handrail, the complete height is 1100mm which meets with standard safety building recommendations.

If you require different post heights, hole sizes, amounts or angles then please don't hesitate to get in touch.

It has a strong wall thickness of 2.6mm to match the rest of the modular range perfectly.

Manufactured in 304 or 316 grade corrosion resistant stainless steel and to a brushed satin finish.

Supplied with pre-welded base plate in position, all you need to add is a base cover cap for the perfect finish.

CLICK on an image to view a higher resolution image

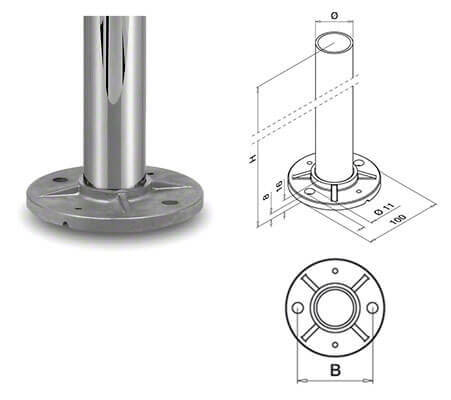

Balustrade Post Base Detail Stainless Steel Baluster Post Mod 914 Stainless Steel Baluster Post Mod 914 Drawing Overall post Height with Fittings and Handrail

Balustrade Post Detail   Balustrade Corner Post Example


Product Information downloads here:

PDF Data Sheet

MOD-CP-42- 13 Modular Corner Post

Term/Symbol
Refers to
Relates to
316
Stainless Steel Grade
Suitable For Exterior Use
304
Stainless Steel Grade
Suitable For Interior Use
Ø
Diameter
Tube, Handrail or Fitting Diameter
