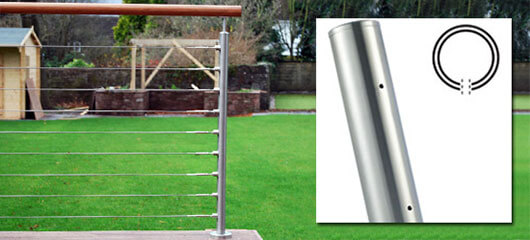

Pre-drilled Stainless Steel Balustrade END Post, Modular System

Modular balustrade end post available for interior or exterior use

Stainless Steel Balustrade End Post

Interior Use:

Balustrade End Post - Modular

Available Options Grade Post Ø
(mm)		 Height
(mm)		 Hole Thread Hole Spacing
(mm)		 B
(mm)		 Code Price (ex VAT)
42.4mm Ø, 304 : 304 42.4 979 M6 100 75 MOD-EP-42-13 £78.68
48.3mm Ø, 304 : 304 48.3 979 M6 100 80 MOD-EP-48-13 £79.82

Exterior Use:

Balustrade End Post - Modular

Available Options Grade Post Ø
(mm)		 Height
(mm)		 Hole Thread Hole Spacing
(mm)		 B
(mm)		 Code Price (ex VAT)
42.4mm Ø, 316 : 316 42.4 979 M6 100 75 MOD-EP-42-14 £89.99
48.3mm Ø, 316 : 316 48.3 979 M6 100 80 MOD-EP-48-14 £98.60

Key Features:
304 Grade Available in 304 (Interior) grade stainless steel.
316 Grade Also available in 316 (exterior) grade stainless steel.
Tube Diameter 42.4mm Available in 42.4mm Tube diameter.
Tube Diameter 48.3mm Also available in 48.3mm Tube diameter.
320 grit satin finish 320 grit satin finish.

The modular end post comes with 9 pre-drilled to support our cable railing infill system.

The post height is set to 979mm so that, with a saddle and handrail, the complete height is 1100mm which meets with standard safety building recommendations.

It has a strong wall thickness of 2.6mm to match the rest of the modular range perfectly.

Manufactured in 304 or 316 grade corrosion resistant stainless steel and from 42.4mm or 48.3mm stainless steel tube.

Finished to a brushed satin.

Supplied with pre-welded base plate in position, all you need to add is a base cover cap for the perfect finish.

If you require different post heights, hole sizes, amounts or angles then please don't hesitate to get in touch.

CLICK on an image to view a higher resolution image

Balustrade Post Base Detail Stainless Steel Baluster Post Mod 914 Stainless Steel Baluster Post Mod 914 Drawing   Overall post Height with Fittings and Handrail

Balustrade Post Detail   Balustrade End Post Example


Product Information downloads here:

PDF Data Sheet

MOD-EP-42-13 Modular End Post

Term/Symbol
Refers to
Relates to
316
Stainless Steel Grade
Suitable For Exterior Use
304
Stainless Steel Grade
Suitable For Interior Use
Ø
Diameter
Tube, Handrail or Fitting Diameter
