Pre-drilled Stainless Steel Balustrade MID Post, Modular System

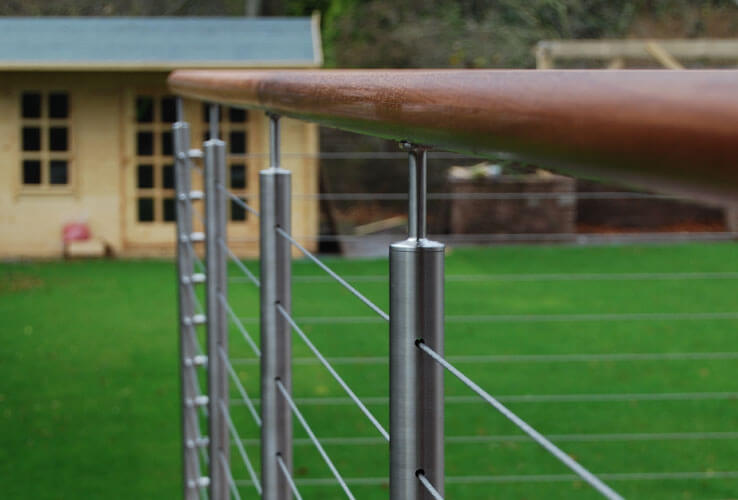

Modular balustrade mid post available for interior or exterior use
Interior Use:
Balustrade Mid Post - Modular
| Available Options | Grade | Post Ø (mm) |
Height (mm) |
Hole Spacing (mm) |
B (mm) |
Code | Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|
| 42.4mm Ø, 304 : | 304 | 42.4 | 979 | 100 | 75 | MOD-MP-42-13 | £78.68 | |
| 48.3mm Ø, 304 : | 304 | 48.3 | 979 | 100 | 80 | MOD-MP-48-13 | £79.82 |
Exterior Use:
Balustrade Mid Post - Modular
| Available Options | Grade | Post Ø (mm) |
Height (mm) |
Hole Spacing (mm) |
B (mm) |
Code | Price (ex VAT) | |
|---|---|---|---|---|---|---|---|---|
| 42.4mm Ø, 316 : | 316 | 42.4 | 979 | 100 | 75 | MOD-MP-42-14 | £89.99 | |
| 48.3mm Ø, 316 : | 316 | 48.3 | 979 | 100 | 80 | MOD-MP-48-14 | £98.60 |
| Key Features: | |
|---|---|
 |
Available in 304 (interior) grade stainless steel. |
 |
Available in 316 (exterior) grade stainless steel. |
 |
Available in 42.4mm Tube diameter. |
 |
Available in 48.3mm Tube diameter. |
 |
320 grit satin finish. |

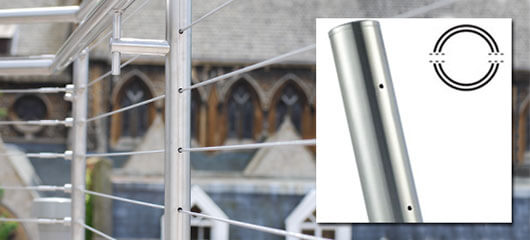

The modular middle post comes with 18 pre-drilled 7mm clearance holes situated at 180 degrees from the post centre; placed to support our cable railing infill system.
The post height is set to 979mm so that, with a saddle and handrail, the complete height is 1100mm which meets with standard safety building recommendations.
If you require different post heights, hole sizes, amounts or angles then please don't hesitate to get in touch.
It has a strong wall thickness of 2.6mm to match the rest of the modular range perfectly.
Manufactured in 304 or 316 grade corrosion resistant stainless steel and to a brushed satin finish.
Supplied with pre-welded base plate in position, all you need to add is a base cover cap for the perfect finish.
CLICK on an image to view a higher resolution image
| Product Information downloads here: | |
|---|---|
PDF Data Sheet
Modular Pre-Drilled Intermediate Post Product Information Sheet |
|
Term/Symbol |
Refers to |
Relates to |
|---|---|---|
316
| Stainless Steel Grade |
Suitable For Exterior Use |
304
| Stainless Steel Grade |
Suitable For Interior Use |
Ø
| Diameter |
Tube, Handrail or Fitting Diameter |
