Wichard - Webbing Swivel - Stainless Steel
Marine Webbing Swivel and Eye in HR 17.4PH Stainless Steel by Wichard, France
Stainless steel webbing swivel with quoted working and break loads, suitable for highly corrosive marine environments, Wichard are renowned for their design and manufacture of high quality marine fittings.
Wichard Swivel - Webbing
| Options | Length (mm) |
A (mm) |
B (mm) |
Working Load* (Kg) |
Breaking Load (Kg) |
Weight (Kg) |
Code | Price (inc VAT) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 60mm Swivel | 60 | 11 | 30 | 960 | 1500 | 0.580 | WD-2367 | £39.02 | |
| 80mm Swivel | 80 | 14 | 40 | 1600 | 3200 | 0.110 | WD-2368 | £48.24 |
* Working Load refers to nautical applications, for lifting and industrial applications this is 1/6 of the break load.
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Key Features:
 |
Available in 17.4 PH stainless steel. |
 |
Polished finish. |
 |
Product has quoted safe working load. |
 |
Product has quoted break load. |
Information - Webbing Swivel

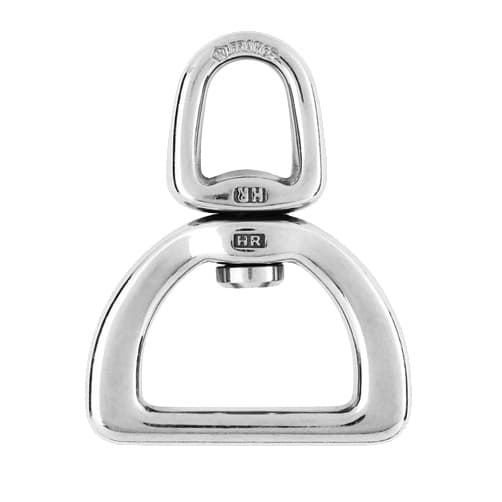

Stainless steel webbing swivel, rotation design to reduce the risk of webbing knotting.
Manufactured in high resistance 17.4 PH stainless steel, with a polished finish.
Designed and manufactured by renowned marine hardware specialist Wichard, France.
Wichard products are not designed for industrial lifting solutions. Working load quoted refers to nautical situations and should not be confused with the working load limit for use in industrial lifting situations.
For lifting applications please refer to our range of Lifting Shackles.

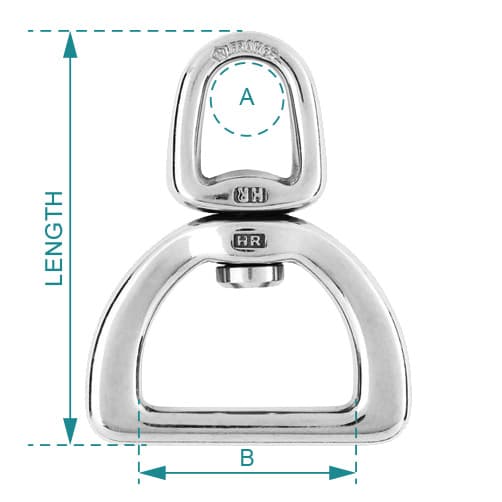

Dimension Information:
PDF Data Sheet
Download Wichard Swivel Dimension Information
Term/Symbol |
Refers to |
Relates to |
|---|---|---|
HR |
High Resistance |
Suitable For Highly Corrosive Environments |
