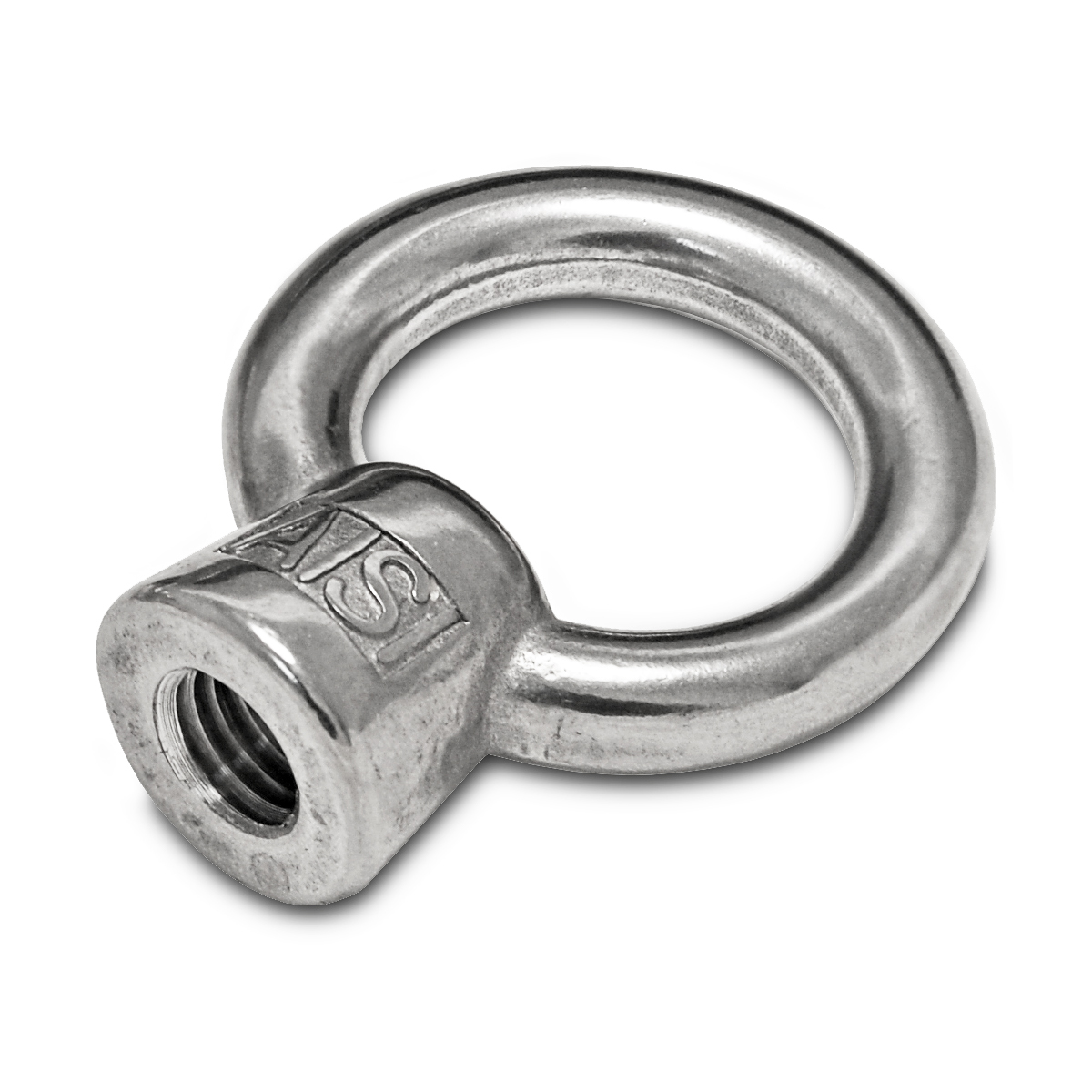

Commercial Eye Nut - Stainless Steel

Commercial Eye Nut in A2-AISI 304 Grade Stainless Steel

Commercial eye nut with inside metric thread for easy installation on to threaded fittings, interior grade stainless steel.

Stainless Steel Eye Nut - Commercial

Available Options D C
(mm)
B
(mm)
A
(mm)
H
(mm)
W
(mm)
Break Load
(Kg)
Code Price (inc VAT)
M6 Eye Nut M6 5 16 25 31 12 990 CEN-M6 £2.39
M8 Eye Nut M8 6 20 33 38 15 1300 CEN-M8 £3.13
M10 Eye Nut M10 8 25 41 49 19 2600 CEN-M10 £4.86
M12 Eye Nut M12 10 30 50 60 24 3400 CEN-M12 £7.21

Key Features:

316 Grade Stainless Steel 304 grade stainless steel.
Break Load Product has quoted break load.

Information

How should you select the right eye bolt?

Use plain or shoulderless eye bolts or ring bolts for vertical loading only.

Angle loading on shouderless eye bolts will bend or break them.

Use shoulder eye bolts for vertical or angle loading.

How should you use stainless steel eye bolts safely?

Orientate the eye bolt in line with the slings. If the load is applied sideways, the eye bolt may bend.

Pack washers between the shoulder and the load surface to ensure that the eye bolt firmly contacts the surface.

Ensure that the nut is properly torqued.

Engage at least 90% of threads in receiving a hole when using shims or washers.

Attach only one sling leg to each eye bolt.

Inspect and clean the eye bolt threads and the hole.

Screw the eye bolt on all the way down and properly seat.

Ensure the tapped hole for a screw eye bolt (body bolts) has a minimum depth of one-and-a-half times the bolt diameter.

Install the shoulder at right angles to the axis of the hole.

The shoulder should be in full contact with the surface of the object being lifted.


Reviews

Stainless Steel Eye Nut - Commercial

5
5
5
5
5
5.0 / 5 (1)
one year ago
5
5
5
5
5
Well made,good quality, very happy with my purchase.
