Surface Mount Balustrade Wire, Made To Measure

Stainless Steel Surface Mount Balustrade Wire

This is the page for our bespoke made-to-measure balustrade cables, were you
looking for DIY Surface Mount Balustrade Cable Kits?

Stainless Steel Deck Wire Balustrade - Scotland

Each cable is made in our workshop to your specific dimensions and consists of:

  • 4mm diameter 7x7 stainless steel rope
  • Two surface mounting sockets
  • One attached ball & one removable threaded ball
  • One tensioning adjuster with lock nut
  • Supplied complete with all relevant fixings ready to install

Delivered 3 to 5 days from order

As an alternative self-assembly balustrade wire kits can be found here

Made In Britain
Stainless Steel Surface Mount Deck Cable Assembly

Surface Mount Balustrade Wire, Timber and Masonry Mount, Ready Assembled

Options Wire
(mm)
Code Price (inc VAT) (length: 1 metre)
Deck Cable 4 B3-CL-04-A £46.50

Tip: To view the product code and full product table on mobile please tilt your device to landscape.

S3i Video

**Video Update** Cables are now designed for runs of up to 12.5 metres.

Video: Installation guide for flat mount made to measure balustrade wire.



How to install the made to measure flat mount balustrade wire system.

Measuring

Deck Wire Balustrade Measurement

Measure the distance between the inside faces of the fixing posts in millimetres.

Remember - measure twice, cut once! Please be as accurate as possible. Each cable will have an adjustment of plus or minus 20mm.

+/-20mm of adjustment

TIP: You can run balustrade wires up to 10 metres passing through any intermediate posts to minimise the number of cables you'll need!


Mounting

Wires Running Through Intermediate Posts

Feeding through posts:

The wires can run up to 12.5 metres in length and the threaded ball can be unscrewed allowing you to feed the cable through any intermediate deck posts (you'll need a clearance hole of at least 7mm).

Stainless Steel Deck Cable Fittings

Mounting:

This deck balustrade wire system is designed for either timber posts or masonry wall surfaces using a 70mm countersunk wood screw.

The socket is mounted to the surface feature by securing a screw or bolt into a drilled hole.

If mounting to masonry surfaces please drill a hole and insert a plastic plug before fastening. Sometimes if a wall is particularly brittle or old - a chemical resin may be applied to further strengthen the hold.

Secure Socket

The Essential Partner

Timber Posts for Balustrade

Timber Posts for Balustrade.

Click here to buy Timber Posts for Balustrade

Features

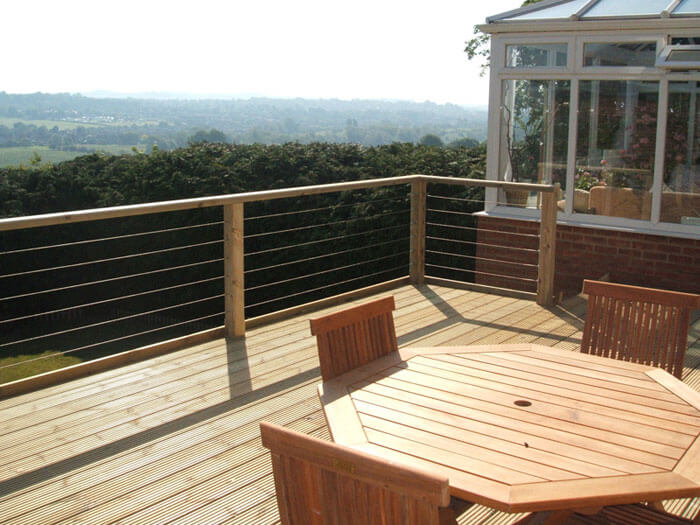

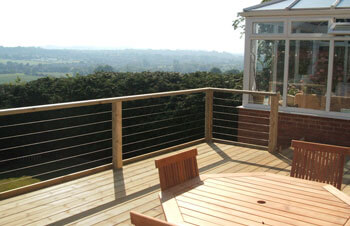

Preserve your view: An overall view of decking fitted with 4mm balustrade wire. The cables give a sleek finish and provide and unspoilt view from the deck.

Preserving The View

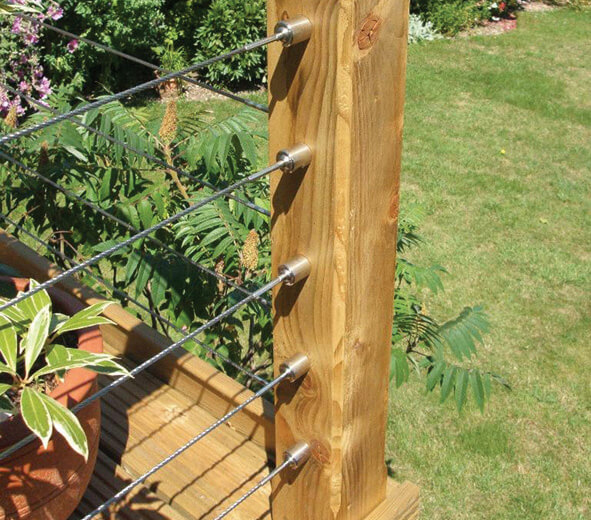

Below is a close up showing the ball terminals fitting cleanly into the surface mounted sockets.

Balustrade with Surface Mount Sockets

Photos below show how the deck railing cables can accommodate angles on decking by swivelling in its socket.

Deck Cables Articulating with Angles

The image below shows the balustrade wire passing through an intermediate post. Our deck railing wires can run up to 12.5 metres and still achieve good tension. We recommend post spacing to be 1.5 to 2 metres apart. Horizontal deck cables should be spaced at 100mm intervals.

Cables Running Through Upright Posts

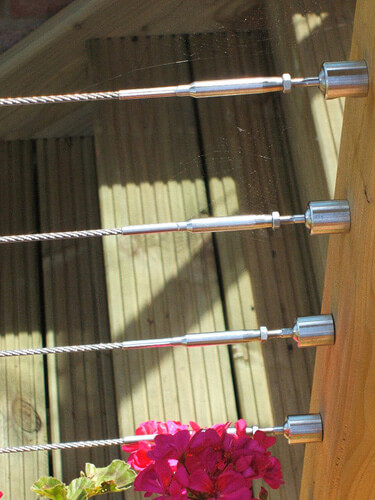

This image shows adding tension to the deck railing wires with the tension adjuster that gives an adjustment of 20mm in each direction from your supplied measurement.

Deck Cables Under Tension

Brochure

Download Cable System Brochure

CABLE SYSTEM BROCHURE download here
