Wire Rope Clip - Simplex Wire Clip, Stainless Steel

Simplex Wire Grip - 316 Marine Grade Stainless Steel

Simplex Wire Clip - Stainless Steel

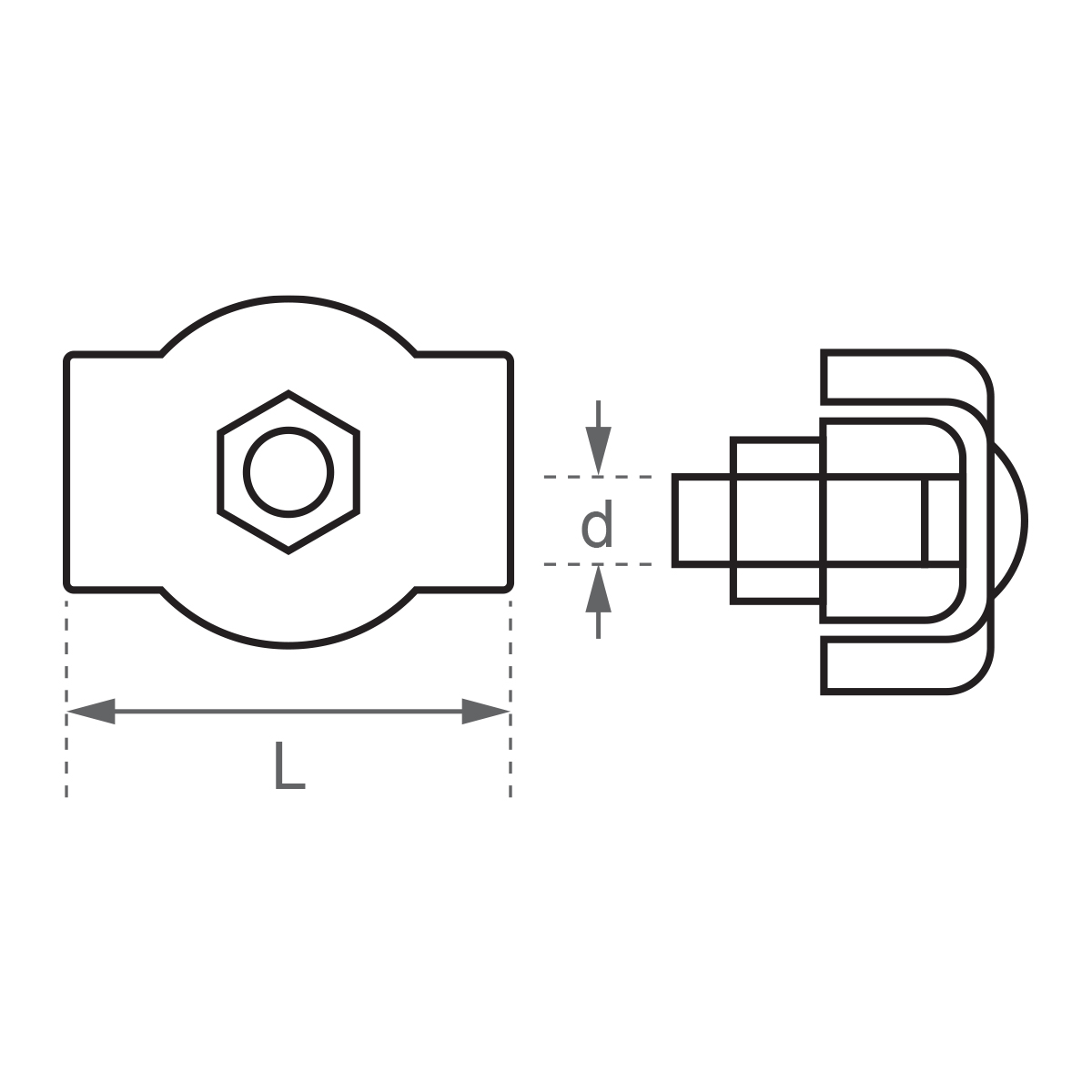

Available Options Wire
(mm)
d
(mm)
L
(mm)
Pack Size Code Price (inc VAT)
2mm Simplex Clip 2 M4 15 1 SG-020 £0.44
3mm Simplex Clip 3 M4 18 1 SG-030 £0.50
4mm Simplex Clip 4 M5 20 1 SG-040 £0.65
5mm Simplex Clip 5 M5 24 1 SG-050 £0.78
6mm Simplex Clip 6 M6 29 1 SG-060 £1.18
8mm Simplex Clip 8 M8 35 1 SG-080 £2.90

Trade Value Packs

Trade Packs - Bulk quantity packs offering you incredible value for money.

Simplex Wire Clip - Stainless Steel

Available Options Wire
(mm)
d
(mm)
L
(mm)
Pack Size Code Price (inc VAT)
2mm Simplex Clip (50) 2 M4 15 50 SG-020-50 £18.36
3mm Simplex Clip (50) 3 M4 18 50 SG-030-50 £20.52
4mm Simplex Clip (50) 4 M5 20 50 SG-040-50 £26.46
5mm Simplex Clip (50) 5 M5 24 50 SG-050-50 £31.86

Simplex Wire Clip - Stainless Steel

Available Options Wire
(mm)
d
(mm)
L
(mm)
Pack Size Code Price (inc VAT)
6mm Simplex Clip (25) 6 M6 29 25 SG-060-25 £24.02
8mm Simplex Clip (25) 8 M8 35 25 SG-080-25 £54.00

Key Features:

316 Grade Stainless Steel 316 grade stainless steel.
High Quality Finish To a high quality finish.
Wrench Required For Installation Spanner or wrench required for installation.

Information

The Simplex wire rope grip is used to create eyes in cable constructions. Particularly with 7x19 construction wire rope which has very flexible characteristics.

Simply loop the cable each side of the threaded bolt and tighten down the plate using a suitable spanner.

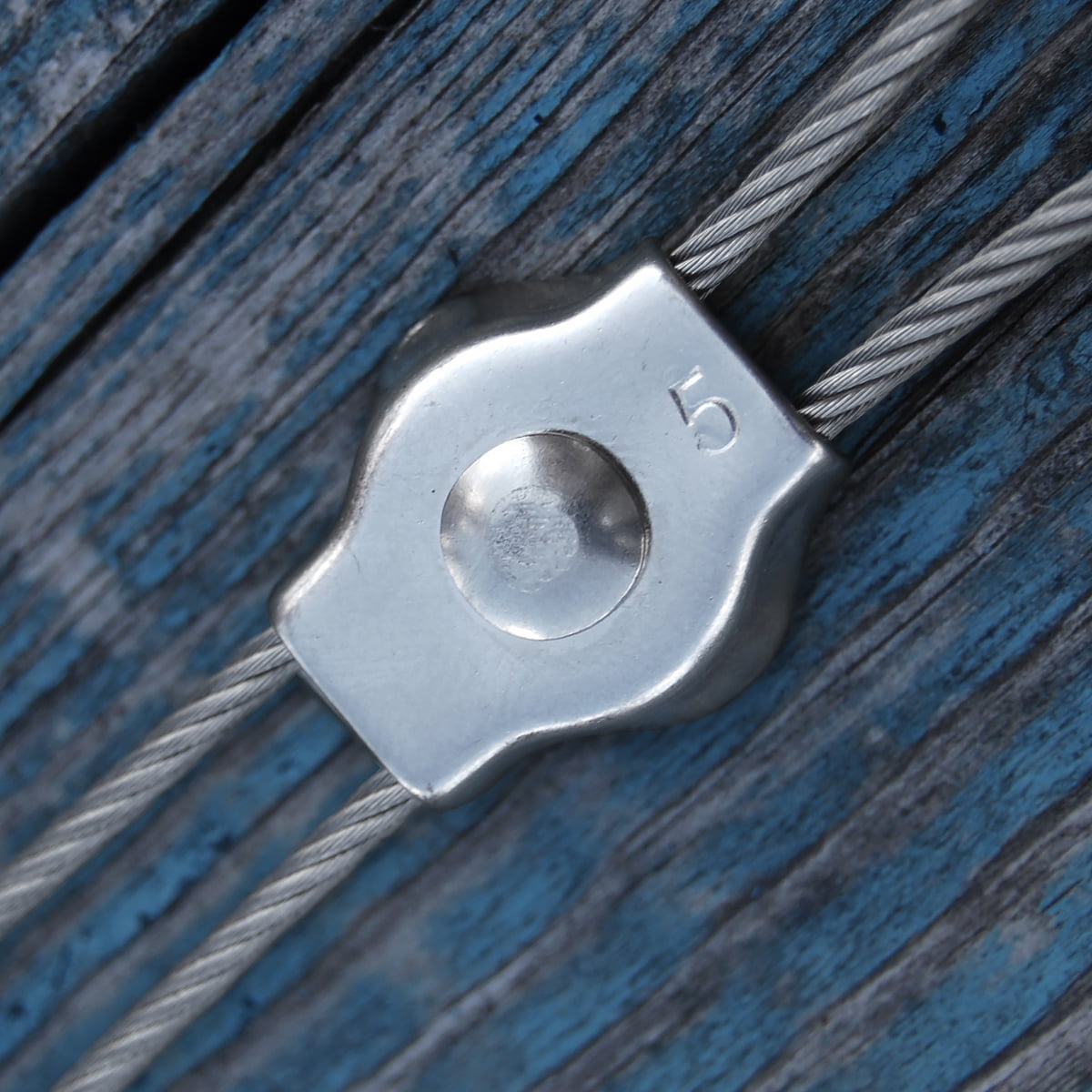

Simplex Wire Clip Example - 316 (Marine) Grade Stainless Steel

Simplex grips are not suitable for any 1x19 construction cables & 7x7 construction 4mm & above.

Approximate failure load is 50% of the cable's breaking load.

Not suitable for lifting.


Installation

The Simplex clip is ideal for 7x19 stainless steel rope, not recommended for use with plastic coated wire rope.

Prepare the wire rope ends to the manufacturers specification.

Match your stainless steel wire rope to the correct size Simplex clip. Miss-matching could result in serious injury or damage.

Remove the locking nuts and the fixing plate ready to accept your stainless steel wire.

Duplex wire rope clip installation guide

Pass the dead end of your wire rope through the clip on one side of the screw thread.

Simplex wire rope clip - how to install

Create a loop in the wire rope to your required size and pass back through the clip on the opposite side of the screw thread.

Simplex wire rope clip - making a loop

Place the fixing plate over the screw thread to hold the wire rope securely.

Simplex wire rope clip - fixing plate

Using a suitable spanner to tighten the locking nut bolt.

Simplex wire rope clip - fixing threaded nut bolt.

Once fitted test your wire rope assembly to check you have a secure fixing - please note that this type of loop is not suitable for lifting.


Reviews

Simplex Wire Clip - Stainless Steel

5
5
5
5
5
4.6 / 5 (7)
19 days ago
4
4
4
4
4
They are good if a little fiddly, look tidy and well made.
one month ago
4
4
4
4
4
A bit fiddly but as expected for 1.5mm wire clamps. Possibly would be better if the head was free, or attached to the washer, may make it less fiddly with nut applied to the current head side?
2 months ago
5
5
5
5
5
Not able to use this with the stiffer 1/19 cable
3 months ago
5
5
5
5
5
Ideal for my needs; they do what they are intended to do.
3 months ago
4
4
4
4
4
Simple to use and worked affectively
3 months ago
5
5
5
5
5
Excellent and ideal for those of us who don't have access to crimping equipment.
8 months ago
5
5
5
5
5
Looks nice, but the simple clips are easier to use if you do not have professional tools.
