Wire Rope Clip - Duplex Wire Clip, Stainless Steel

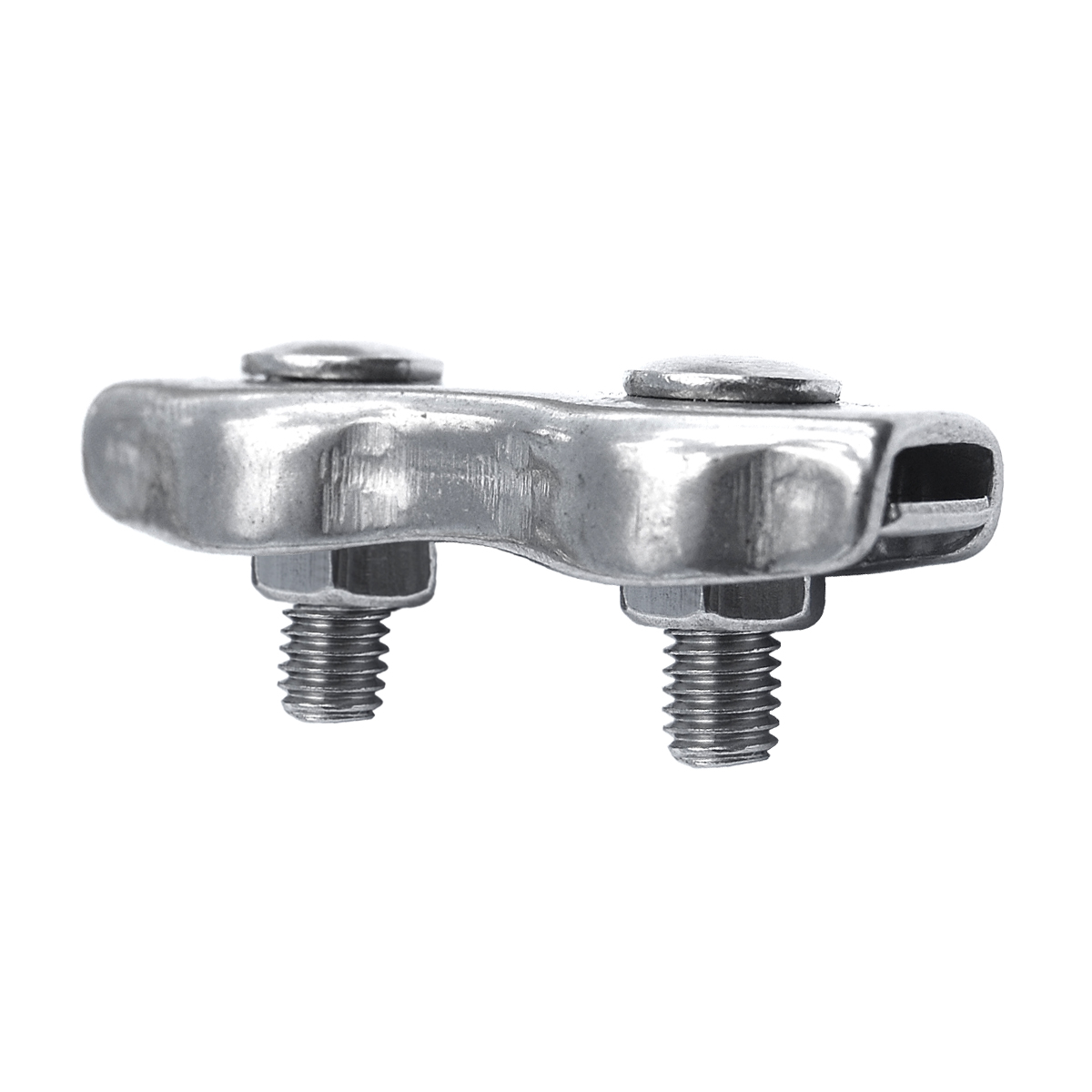

Duplex Wire Clip - 316 Marine Grade Stainless Steel

Duplex Wire Clip - Stainless Steel

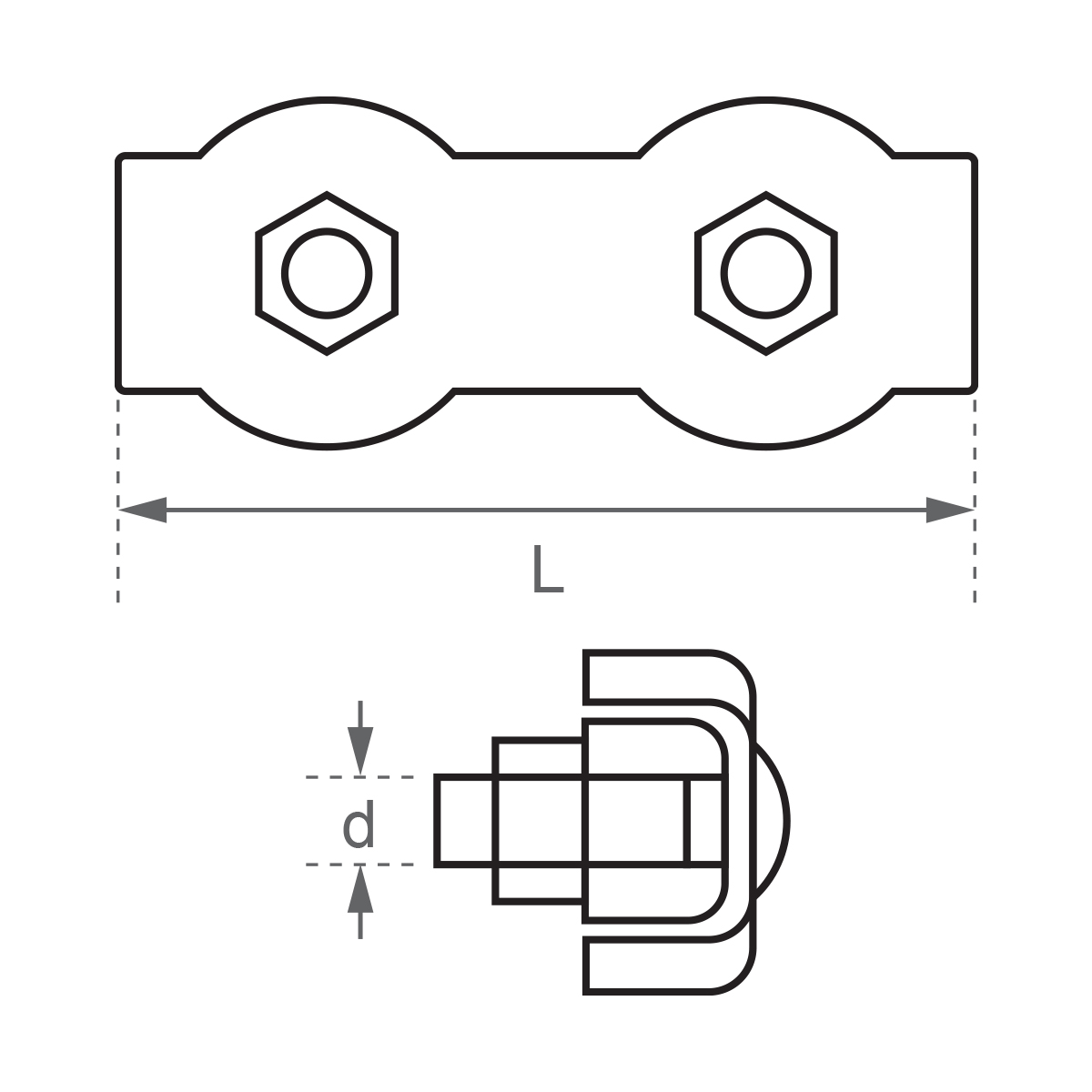

Available Options Wire
(mm)
d
(mm)
L
(mm)
Pack Size Code Price (inc VAT)
2mm Duplex Clip 2 M4 33 1 DG-020 £0.78
3mm Duplex Clip 3 M4 38 1 DG-030 £0.91
4mm Duplex Clip 4 M5 43 1 DG-040 £1.31
5mm Duplex Clip 5 M5 51 1 DG-050 £1.44
6mm Duplex Clip 6 M6 63 1 DG-060 £2.50
8mm Duplex Clip 8 M8 78 1 DG-080 £5.45
10mm Duplex Clip 10 M10 95 1 DG-100 £7.44
Trade Value Packs

Trade Packs - Bulk quantity packs offering you incredible value for money.

Duplex Wire Clip - Stainless Steel

Available Options Wire
(mm)
d
(mm)
L
(mm)
Pack Size Code Price (inc VAT)
2mm Duplex Clip (50) 2 M4 33 50 DG-020-50 £31.86
3mm Duplex Clip (50) 3 M4 38 50 DG-030-50 £37.26
4mm Duplex Clip (50) 4 M5 43 50 DG-040-50 £53.46
5mm Duplex Clip (50) 5 M5 51 50 DG-050-50 £58.86

Duplex Wire Clip - Stainless Steel

Available Options Wire
(mm)
d
(mm)
L
(mm)
Pack Size Code Price (inc VAT)
6mm Duplex Clip (25) 6 M6 63 25 DG-060-25 £51.02
8mm Duplex Clip (25) 8 M8 78 25 DG-080-25 £111.30

Key Features:

316 Grade Stainless Steel 316 grade stainless steel.

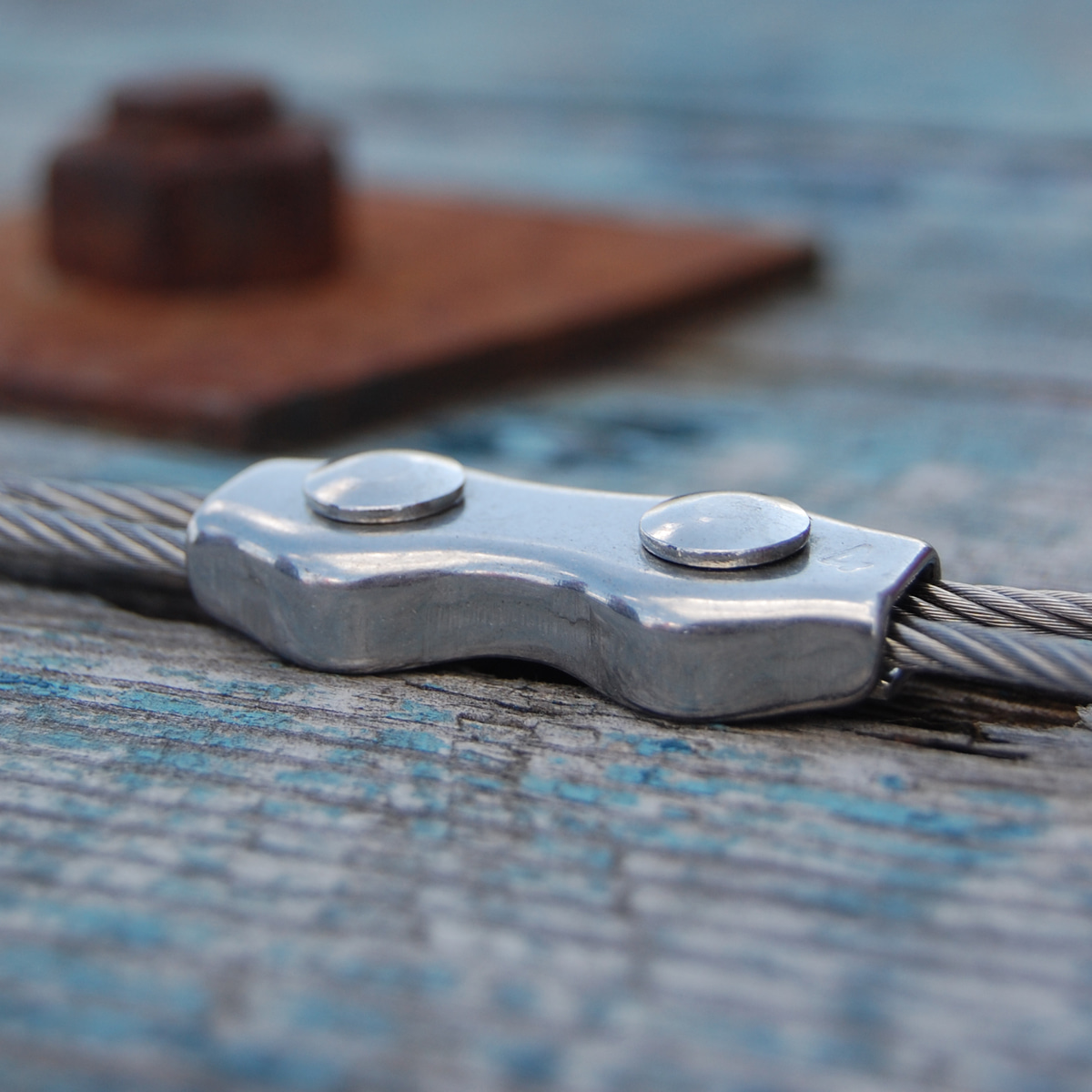

High Quality Finish To a high quality finish.
Wrench Required For Installation Wrench required for installation.

Information

The Duplex wire rope grip is used to create eyes in cable constructions. Particularly with 7x19 construction wire rope which has very flexible characteristics.

Simply loop the cable each side of the threaded bolt and tighten down the plate using a suitable spanner.

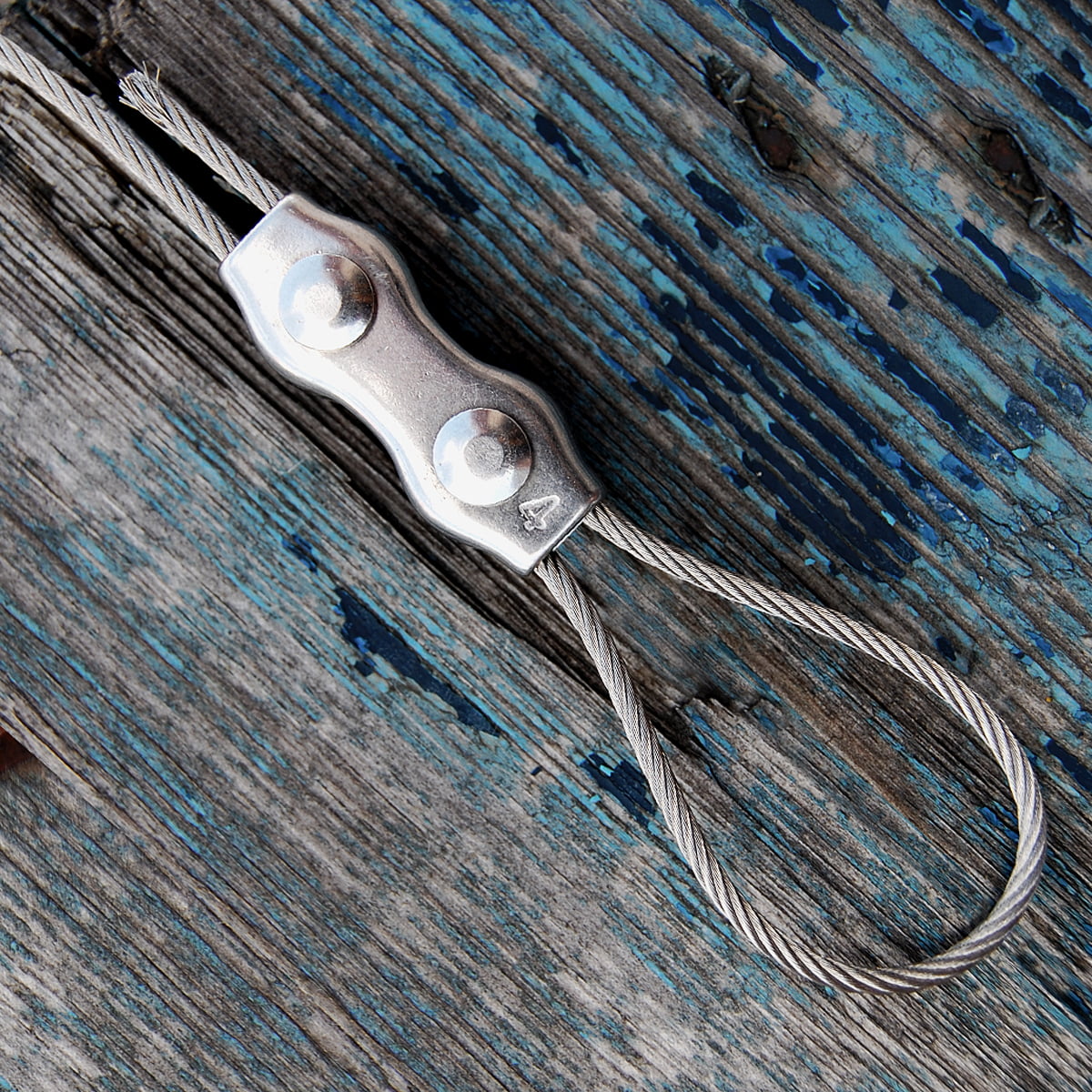

Duplex Wire Clip Example - 316 (Marine) Grade Stainless Steel

Simplex grips are not suitable for any 1x19 construction cables & 7x7 construction 4mm & above.

The approximate failure load is 80% of the cable's breaking load .

Not suitable for lifting.


Installation

Ideal for 7x19 stainless steel rope, not recommended for use with plastic coated wire rope.

For a clean and safe fitting we recommend you prepare the wire rope ends to the manufacturers specification.

Check you have the correct size clip to match your stainless steel wire rope. Miss-matching could result in serious injury or damage.

Remove the locking nuts and the fixing plate ready to accept your stainless steel wire.

Duplex wire rope clip installation guide

Pass the wire rope through the clip on one side of the screws threads.

Duplex wire rope clip - how to install

Simply loop the wire rope to the required size and pass back through the clip on the opposite side of the screw threads.

Duplex wire rope clip - making a loop

Holding the wire rope in place - re-place the fixing plate over the screw threads to hold the wire rope securely.

Duplex wire rope clip - fixing plate

Replace the locking nut bolts using a suitable spanner, making sure you tighten evenly to ensure a solid grip.

Duplex wire rope clip - fixing threaded nut bolts

Once fitted we recommend you test your wire rope assembly to check a secure fixing - please note that this type of loop is not suitable for lifting.


Reviews

Duplex Wire Clip - Stainless Steel

4
4
4
4
4
4.0 / 5 (4)
one month ago
4
4
4
4
4
Do the job ok but quite hard to get the cable that I purchased in the clip.
7 months ago
5
5
5
5
5
Very neat and easy to use
8 months ago
4
4
4
4
4
Really, really fiddly, but looks very neat and smart
9 months ago
3
3
3
3
3
quite hard to fix wire into this. strong fix when done
