Wire Rope Grip - Stainless Steel
Wire Rope Grip in 316 Grade Stainless Steel for 2mm - 22mm Diameter Cables

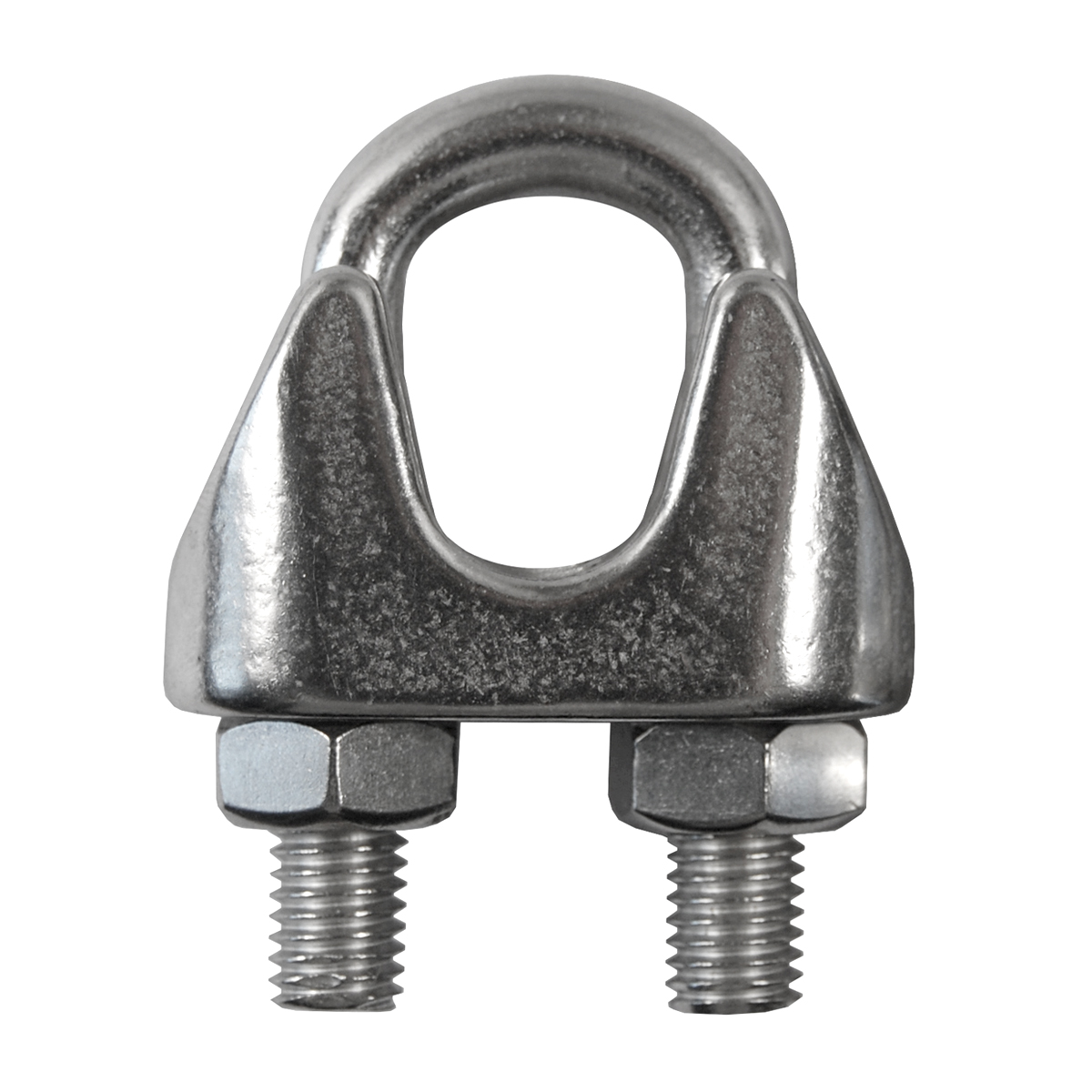

Wire rope grip in marine grade stainless steel, strong and hard-wearing clamp for creating loops in stainless steel cable, easy to install and is ideal for highly corrosive environments.
Please note: Wire Rope Clamp Size relates to the Wire Diameter.
E.g. For 4mm Wire Rope please choose a 4mm Wire Rope Grip.
Wire Rope Grip - Stainless Steel
Options | Wire (mm) |
A (mm) |
Pack Size | Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|
2mm Grip | 2 | M3 | 1 | RG-020 | £0.67 | |
3mm Grip | 3 | M3 | 1 | RG-030 | £0.71 | |
4mm Grip | 4 | M4 | 1 | RG-040 | £0.84 | |
5mm Grip | 5 | M5 | 1 | RG-050 | £0.96 | |
6mm Grip | 6 | M5 | 1 | RG-060 | £1.08 | |
8mm Grip | 8 | M6 | 1 | RG-080 | £1.52 | |
10mm Grip | 10 | M8 | 1 | RG-100 | £2.21 | |
13mm Grip | 13 | M10 | 1 | RG-130 | £3.54 | |
16mm Grip | 16 | M12 | 1 | RG-160 | £4.98 | |
19mm Grip | 19 | M12 | 1 | RG-190 | £8.30 | |
22mm Grip | 22 | M14 | 1 | RG-220 | £13.63 |
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Trade Packs - Bulk quantity packs offering you incredible value for money.
Wire Rope Grip - Stainless Steel
Options | Wire (mm) |
A (mm) |
Pack Size | Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|
2mm Grip (50) | 2 | M3 | 50 | RG-020-TP-50 | £30.24 | |
3mm Grip (50) | 3 | M3 | 50 | RG-030-TP-50 | £31.86 | |
4mm Grip (50) | 4 | M4 | 50 | RG-040-TP-50 | £37.80 | |
5mm Grip (50) | 5 | M5 | 50 | RG-050-TP-50 | £43.20 | |
6mm Grip (50) | 6 | M5 | 50 | RG-060-TP-50 | £48.60 |
Wire Rope Grip - Stainless Steel
Options | Wire (mm) |
A (mm) |
Pack Size | Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|
8mm Grip (25) | 8 | M6 | 25 | RG-080-TP-25 | £34.30 | |
10mm Grip (25) | 10 | M8 | 25 | RG-100-TP-25 | £49.68 |
Key Features:
316 grade stainless steel. | |
To a high quality finish. | |
Wrench required for installation. |
Information

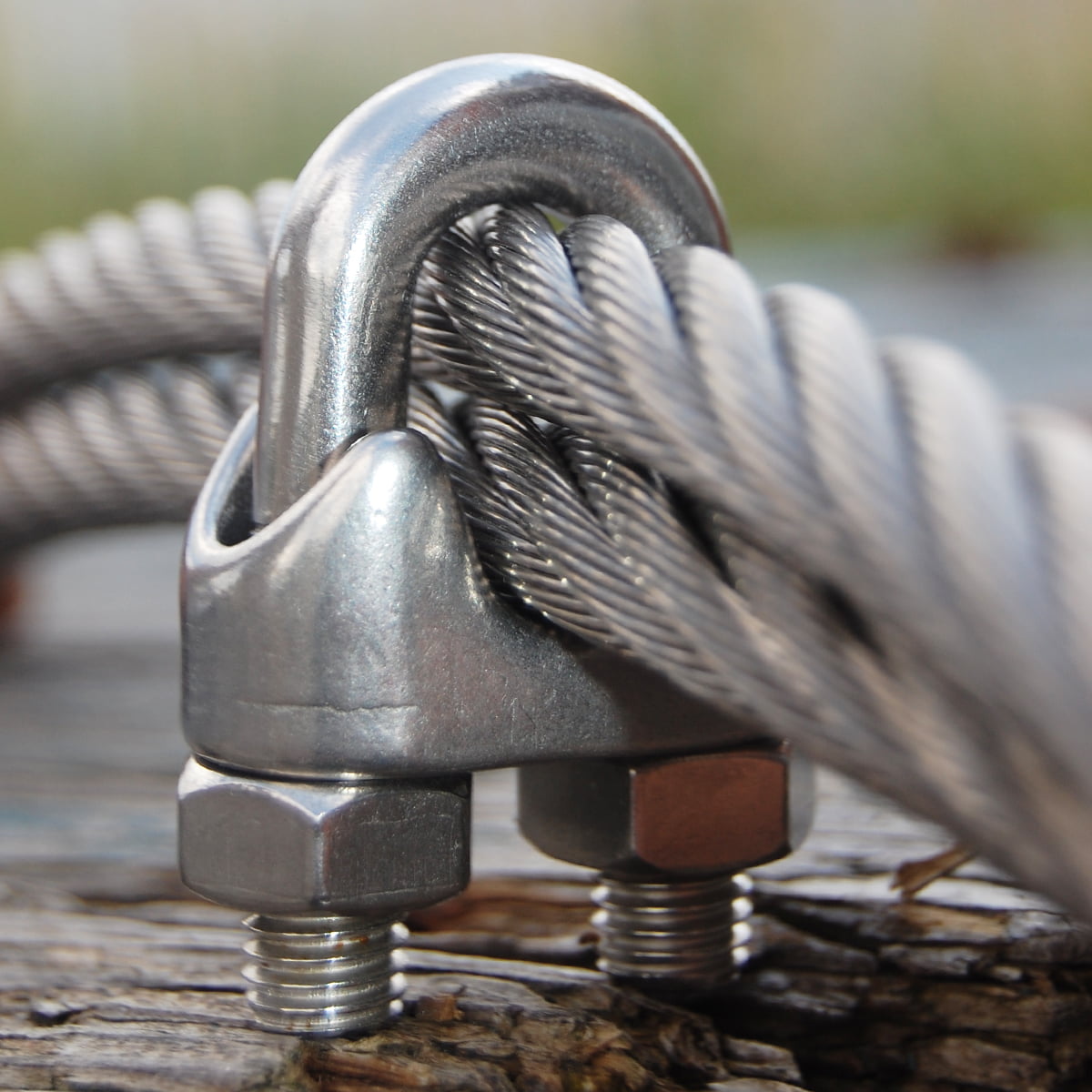

Wire Rope Grips are used on wire rope eye-loop connections or complete loops, end-to-end connections, where socketing or splicing is not feasible or when a temporary joint is required.
Sometimes referred to as bulldog grips.

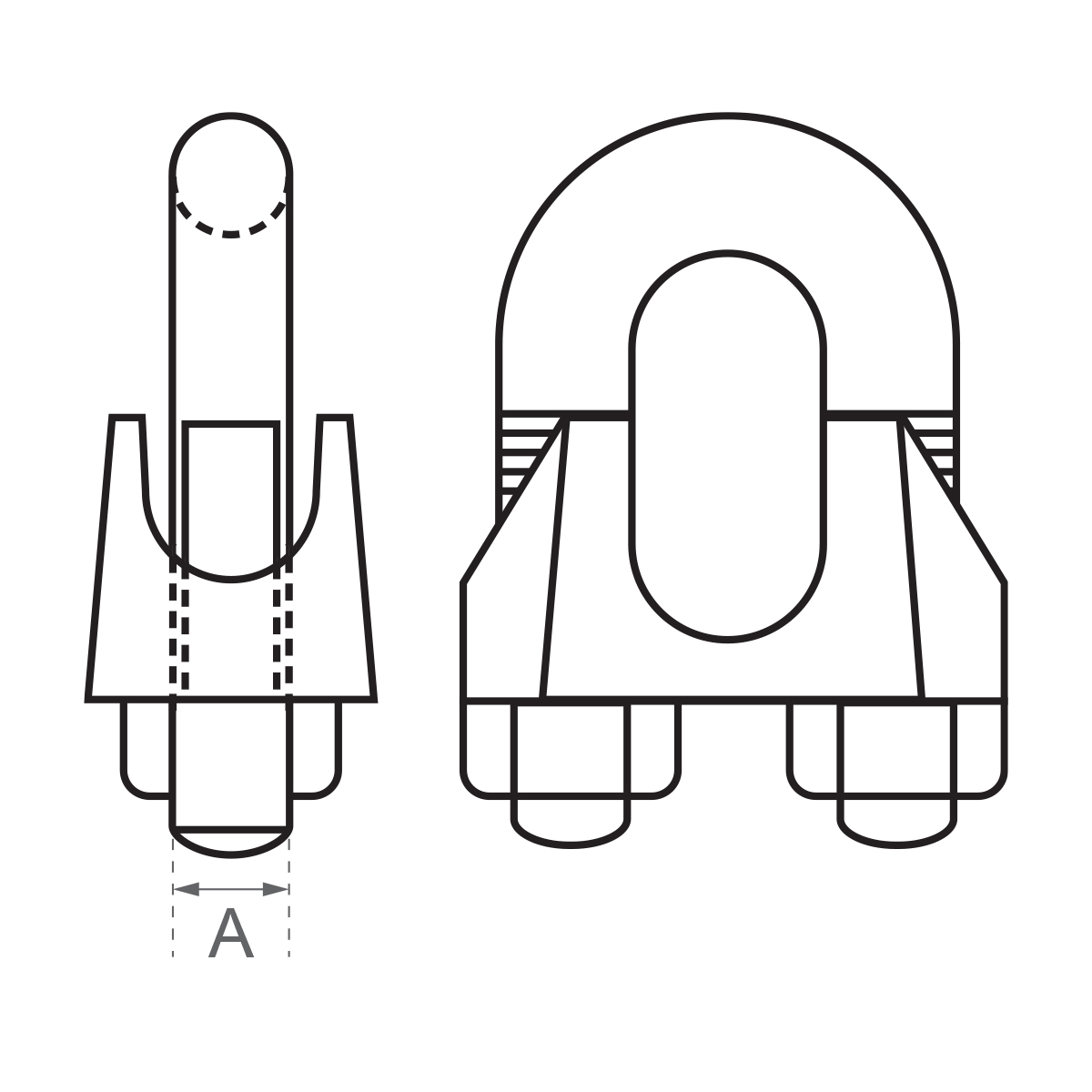

Dimension Information:
PDF Data Sheet
Download Wire Rope Grip Dimension Information
|
Did You knowS3i supplied this product to the family featured in the BBC One series 'DIY SOS: The Big Build' and was used as part of a life changing transformation to the home of a family in Rednal, Birmingham. |
Product Information downloads here:
PDF Data Sheet
How do you use a wire rope grip?
Ideal for stainless steel rope, not for use with plastic coated wire rope.
We recommend you prepare the wire rope ends to the manufacturers specification to ensure a clean and safe fitting.
Before installation it is best to check you have the correct size clamp to match your stainless steel wire rope. Incorrect matching could result in serious injury or damage.
The Correct Installation Method
Using One Grip
To create a simple loop or thimble loop, turn back the required amount or wire rope to create your loop. Starting approximately one grip base width in from the dead end of your rope place the U-bolt over the dead end and attach the grip base. Apply the fixing nuts - taking time to alternate between the two nuts as you tighten to ensure an even fixing.
Using Two Grips
For instances where you need to use 2 wire rope grips. Repeat the same instructions as above, placing the second grip as close to the thimble or loop as possible. Ensuring you place the U-bolt over the dead rope and fixing the grip base evenly.
Using Three Or More Wire Rope Grips
When using three or more clamps ensure you have spaced them evenly, making sure you have taken up any slack in the rope between the two end grips before tightening your additional rope grips.
Once fitted we recommend you load test your wire rope assembly with a load that is equal or greater than the expected load. Check that all the nuts are secure.
