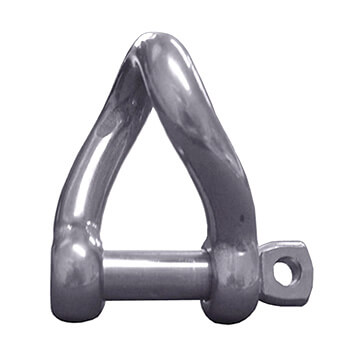

Stainless Steel Twist Shackle - Standard Pin

High Performance Twist Shackle with Standard Pin in 316 Marine Grade Stainless Steel

Twist shackles with standard screw pins are forged by electrical upset methods here in the UK from A4-AISI 316 grade stainless steel, provides a 90 degree change in direction, ideal for reducing twists and kinks on rigging.

Twist Shackle

Options P
(mm)
B
(mm)
J
(mm)
L
(mm)
Break Load
(Kg)
Code Price (inc VAT) Quantity
4mm Twist Shackle 4 4 8 13 600 T-040-A £4.51
In stock
5mm Twist Shackle 5 5 10 16 1200 T-050-A £7.43
In stock
6mm Twist Shackle 6 6 13 20 1600 T-060-A £8.50
In stock
8mm Twist Shackle 8 8 16 26 2400 T-080-A £23.11
In stock
10mm Twist Shackle 9.5 9.5 19 31 3800 T-100-A £33.02
In stock
12mm Twist Shackle 12.7 12.7 26 41 6000 T-120-A £45.00
In stock
16mm Twist Shackle 16 14.3 29 45 8000 T-160-A £105.60
3-5 days
19mm Twist Shackle 19 16 32 51 11000 T-190-A £208.08
3-5 days

Tip: To view the product code and full product table on mobile please tilt your device to landscape.

Key Features:

316 Stainless Steel
316 marine grade stainless steel.

Pin Options

Type A. Standard (Std) Pin for Marine Shackles

Standard Pin for Marine Twist Shackles

Information

Stainless steel twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing, the threaded screw pin can be removed to allow easy attachment.

Twist shackles available in a wide range of sizes from 4mm to 19mm, all shackles are finished to the highest of standards with a highly polished finish.

Strong and durable shackle ideal for a multitude of applications, such as: securing blocks and tackle, mooring and anchoring in harsh marine conditions.

We can provide tested, certified and SWL marked bow shackles, please see testing information below...

Made In Britain

Made In Britain

This high quality stainless steel twist shackle with standard pin is manufactured here in the UK.

Dimension Information:

PDF Data Sheet

Download Data Sheet

Download Twist Shackle Dimension Information


Testing

Marine Twist shackles Tested & Certified To BS EN 10203 3.1b.

Should you require your twist shackle tested, certified and marked with its Safe Working Load (SWL), you can simply call us on 01302 752 504 and we will be happy to carry this out.

Once Tested, they are individually marked with a batch reference number and a Safe Working Load (SWL). A certificate will be issued.

This will comply with lifting equipment regulations.

You can e-mail us to discuss your requirements.
