Contemporary Domestic & Light Commercial Frameless Glass Balustrades
Powder Coating?
We can now powder coat components to any given RAL colour of your choice.
This is a bespoke service, with all components being manufactured to order.
For further information simply contact our sales and technical team on
01302 752 504 or email us at info@s3i.co.uk
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
Our popular and user-friendly frameless glass balustrade systems.
Easy Glass Smart+ Frameless Balustrade
The number one frameless glass balustrade when it comes to glass alignment! The base shoe of this frameless channel system uses the revolutionary adjustable Q-disc System, which allows you to adjust and secure glass infills easier than ever before.
Uses the Q-Disc System for glass thickness of 17.52mm and 21.52mm.
You can choose between top mount or a fascia mount glass balustrade installation.
Designed so all installation can be carried out from the inner side of the balustrade.
All profiles are manufactured in Aluminium to a brushed stainless steel effect finish, with drilled fixing holes, and are suitable for indoor and outdoor installation.
Top Mount Easy Glass Smart+ | Fascia Mount Easy Glass Smart+ | |
Usage | Light/medium commercial and residential | Light/medium commercial and residential |
Suitable For Stairways | Yes | Yes |
Certified | BS 6180 | BS 6180 |
Maximum Load | 0.74kN/m | 0.74kN/m |
Glass Thickness (mm) | 17.52 - 21.52 | 17.52 - 21.52 |
Cladding Possible | No | Yes |

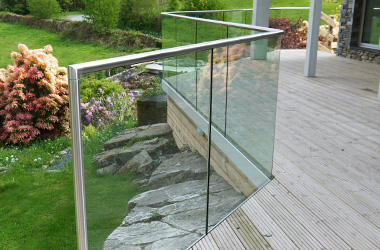

Easy Glass Smart Frameless Balustrade
Easy Glass Smart is available with two different types of base shoe: top mounted and fascia mounted. When equipped with the adjustable Q-disc System you can use glass thickness of 12mm, 13.52mm and 15mm.
Suitable for balconies, galleries, walkways, stairways and juliet balconies.
The adjustable Q-disc System is a game-changing feature that makes glass fixing super easy: after installing the base shoes, put the special inlays into them, then position your glass and secure the panels by inserting a Q-disc into each inlay. Finally, to tighten the grip on the glass, simply turn the discs clockwise.
All profiles are manufactured in Aluminium to a brushed stainless steel effect finish and are suitable for indoor and outdoor installation.
Full range of straight and corner profiles with integrated water drainage, all perfectly aligned using a clever connector pin design.
Glass panels are adjustable by up to 6mm using the adjustable Q-Disc rubber insert and wedge kit.
Plus with fewer anchors required this system is very cost effective.
Easy Glass Smart frameless has fixings for concrete, masonry and timber* mounting available.
*We always recommend taking advice from an engineer or specialist if mounting onto timber.
Top Mount Easy Glass Smart | Fascia Mount Easy Glass Smart | |
Usage | Light/medium commercial and residential | Light/medium commercial and residential |
Suitable For Stairways | Yes | Yes |
Certified | BS 6180 | BS 6180 |
Maximum Load | 0.74kN/m | 0.74kN/m |
Glass Thickness (mm) | 12, 13.52, 15 | 12, 13.52, 15 |
Cladding Possible | No | Yes |
|
Mounting AdviceAny quoted figures about the performance of these products relate to installing into concrete.*Please take advice from an engineer or specialist when installing into any other material, such as timber. |

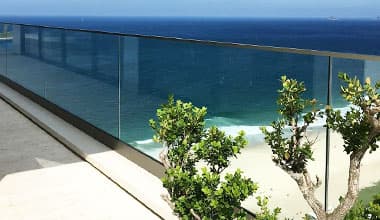

Top Mount frameless glass channel balustrade is the perfect, high quality choice for minimalist interiors and exteriors, offering straight and corner profiles to suit any project. Balustrades designed to be straight forward to install with the use of our safety wedge kit. |

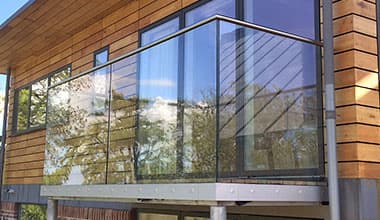

Fascia Mount frameless glass channel balustrade is suitable for indoor and outdoor applications and are ideal for areas where you wish to make the full use of space. The perfect choice for balconies and stairwells. We offer a full range of straight and corner profiles to give you complete control and choice of your design. |
Video: Video Demonstration of the Glass Channel Pendulum Test - S3i Group
Video demonstration of the glass channel pendulum test with a 50kg side impact. The force of the impact was greater than 1.5 kN and the installation remained completely intact.
Definitions:
kN = kiloNewton - 1kN is roughly 102 kilogram-force of load
Certified = Independently certified by CSTB (France), AbP Bauart Gepruft (Germany) and independently tested in the UK by Arc Engineers Ltd (test results available)
