Copper Ferrule for Crimping Wire Rope

Copper Ferrule

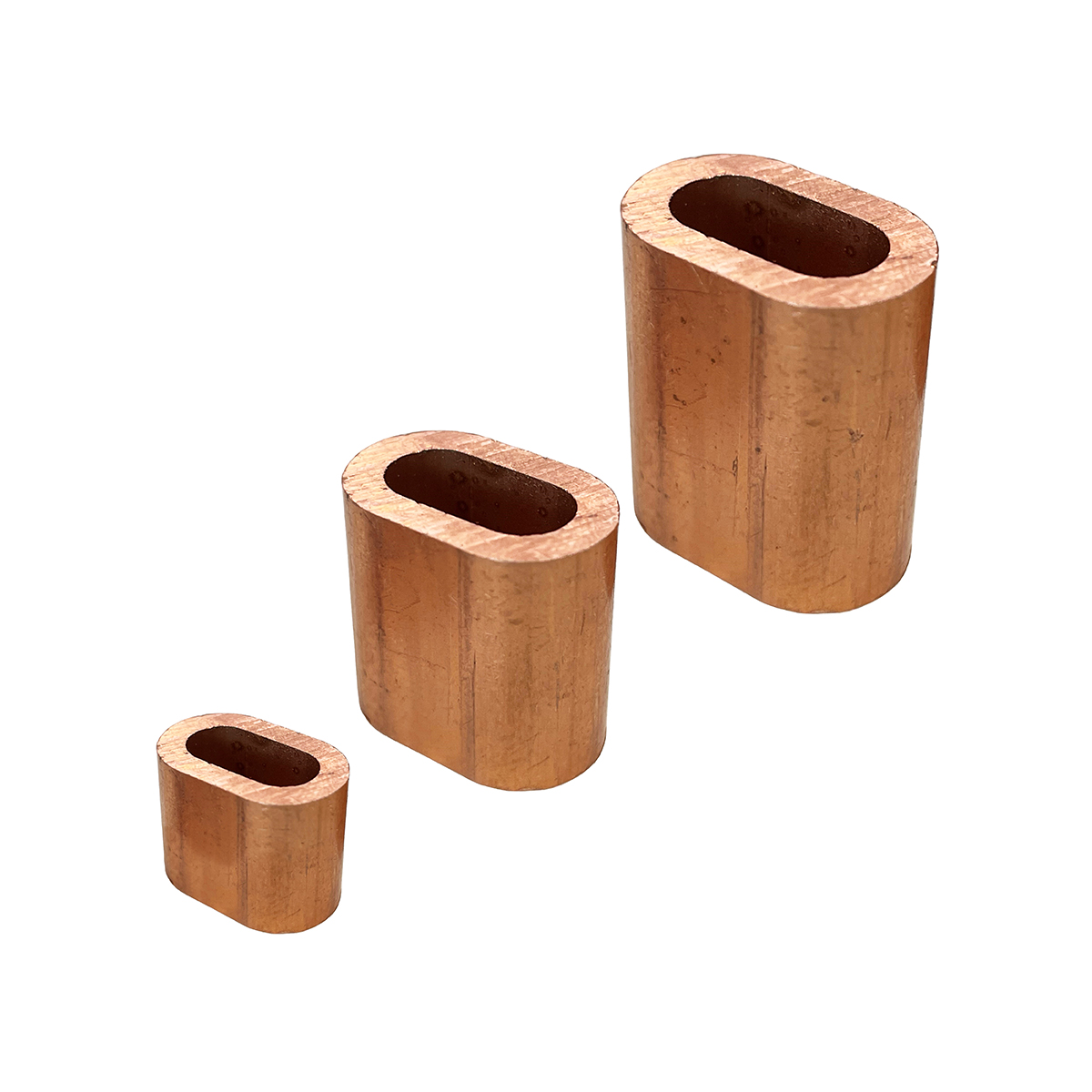

Copper Ferrule for Crimping Wire Rope, Standard Type A

Choosing Your Copper Ferrule

The size of the ferrule you choose relates to the wire diameter.

So, If using 4mm wire rope, please choose a 4mm copper ferrule.

Copper Ferrule - Type A

Available Options Pack Size Type Code Price (inc VAT)
1mm Ferrule 1 Code 1 CF-010 £0.12
1.5mm Ferrule 1 Code 1.5 CF-015 £0.12
2mm Ferrule 1 Code 2 CF-020 £0.12
3mm Ferrule 1 Code 3 CF-030 £0.18
4mm Ferrule 1 Code 4 CF-040 £0.38
5mm Ferrule 1 Code 5 CF-050 £0.52
6mm Ferrule 1 Code 6 CF-060 £1.04
8mm Ferrule 1 Code 8 CF-080 £2.38
10mm Ferrule 1 Code 10 CF-100 £4.22

Trade Value Packs

Trade Packs - Bulk quantity packs offering you incredible value for money.

Copper Ferrule - Type A

Available Options Pack Size Type Code Price (inc VAT)
1mm Ferrule (100) 100 Code 1 CF-010-100-TP £7.44
1.5mm Ferrule (100) 100 Code 1.5 CF-015-100-TP £8.40
2mm Ferrule (100) 100 Code 2 CF-020-100-TP £8.64
3mm Ferrule (100) 100 Code 3 CF-030-100-TP £12.96
4mm Ferrule (100) 100 Code 4 CF-040-100-TP £26.40
5mm Ferrule (100) 100 Code 5 CF-050-100-TP £57.60
6mm Ferrule (100) 100 Code 6 CF-060-100-TP £76.80
7mm Ferrule (100) 100 Code 7 CF-070-100-TP £115.20
8mm Ferrule (100) 100 Code 8 CF-080-100-TP £168.00
9mm Ferrule (100) 100 Code 9 CF-090-100-TP £266.40
10mm Ferrule(100) 100 Code 10 CF-100-100-TP £348.00

Key Features:

Copper Manufactured from Copper.
Crimping Tool Required Crimping Tool required.

Information

Copper ferrules & crimps for forming strong eyes & stops on stainless steel and galvanised wire rope.

Manufactured to BS 5281.

Intended for use with stainless steel wire rope to avoid galvanic corrosion.

Also known as wire rope sleeves and cable crimps.

Sizing is like for like. E.g. Choose a 4mm Copper Ferrule to suit 4mm wire rope.

Copper ferrules available to fit 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm and 10mm wire rope.

Copper Ferrule for Wire Rope - Standard Type A

How to create a simple soft eye wire rope loop.

Simple soft loops can be added to stainless steel wire by placing the copper ferrule over the end of the wire and looping the wire back on itself, passing back through the copper ferrule. Once in place use a swaging or crimping tool to compress the copper ferrule until it holds the wire firmly.

Creating a hard eye loop using a stainless steel thimble and a ferrule.

Step 1

Simply lace the dead end of your wire rope through your copper ferrule and loop the end of your wire rope around the outer groove of the thimble.

Thread Wire Through Ferrule And Around Thimble

Step 2

Pass the end back through the copper ferrule and pull-in the dead end to fit tight around the thimble.

Thread Wire Back Through Ferrule

Step 3

Once in place, we recommend using a crimping tool to compress the copper ferrule firmly onto the rope to hold your thimble loop securely.

Finishing Your Wire Loop with Thimble Eye

Once fitted we recommend you load test your wire rope assembly with a load that is equal or greater than the expected load to ensure that your loop/eye performs safely.


Wire Rope Ferrule Downloads:

PDF Information Sheet

Download - Creating A Loop Using A Wire Rope Ferrule
