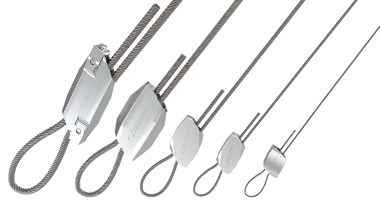

Gripple Standard Suspension Kits

Standard Wire Suspension Kits with Pre-crimped End Fixing

Gripple Standard Hanger - Hang Tough, Work Smart

Versatile, ready-to-use wire suspension system, simply choose your end fixing, size and wire length.

Gripple Standard -
Wire Loop Kit

Gripple Standard -
Snap Hook Kit

Gripple Standard -
M6 Thread Stud Kit

Gripple Standard -
M8 Thread Stud Kit

Gripple Standard -
M10 Thread Stud Kit

Features

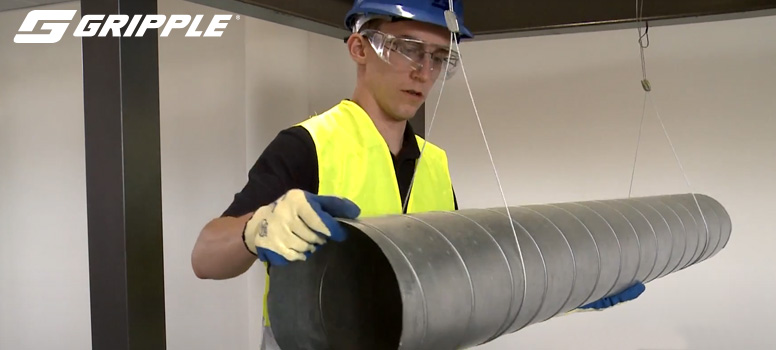

Gripple standard wire suspension kits are designed for fast suspension of a variety of mechanical, electrical, HVAC and lighting suspension from a variety of substrates.

Standard hangers can be installed up to 6 times faster than traditional hanging systems, such as threaded rod or chain.

Simple to use, you can adjust position quickly and easily using the setting key provided.

Strong, safe and industry approved. Load ratings up to 325kg SWL with a 5:1 safety factor.

Aesthetically discreet and lightweight and perfect for use in industrial or architectural installations.

The standard operating temperature range of this product is -20°C to +70°C.

Supplied in ready-to-use packs of 10

Technical Download

Gripple Standard Hanger Data Sheet

Gripple Standard Hanger CE Certificate

Standard Hanger Kits contain:

10 x Gripple fasteners
10 x Galvanised wire rope to your chosen length
10 x Pre-crimped end fixings
Setting key

Choosing The Right Gripple

Use the simple formula below to determine the Gripple size required.

'Weight per metre x distance between hangers'

Example:

20kg load per metre x 2m between hangers = 40kg

Minimum standard hanger size required would be No.2 Gripple

Gripple Size	Wire Ø	Safe Working Load
No.1	1.5 mm	0 - 10kg
No.2	2 mm	10kg - 45kg
No.3	3 mm	45kg - 90kg
No.4	4.75 mm	90kg - 225kg
No.5	6 mm	225kg - 325kg

Installation and Adjustment of Suspension Kit

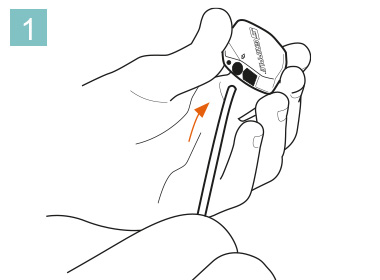

Pass end of wire rope through Gripple Hanger

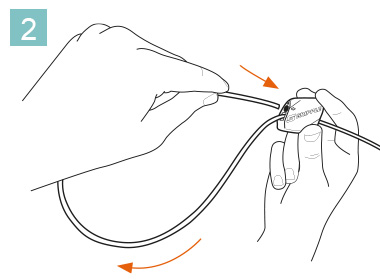

Loop wire rope back on itself and pass back through the Gripple Hanger

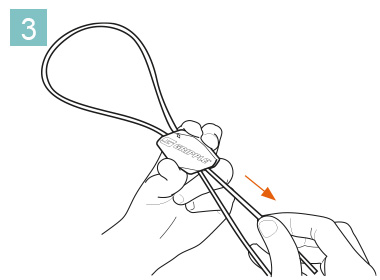

Simply pull on the wire rope end to tighten

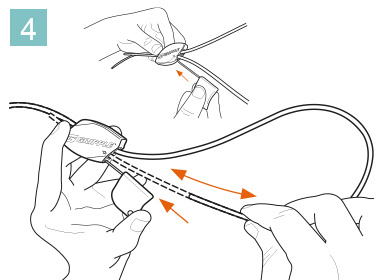

Insert setting key to adjust or remove wire rope

1. Simply pass the end of your wire rope through the gripple.

2. Loop wire rope back on itself and pass back through the hanger fitting.

3. Simply pull on the wire rope end to tighten, ensure a minimum of 75mm of tail wire exits the hanger.

4. To adjust or remove your gripple fitting simply insert the setting key to release the wire rope locking wedge.

End Fixings for Standard Hangers

Gripple offer a wide range of pre-crimped end fixings, from loops, threaded studs, hooks and many more, providing a solution whatever the application.
