Wire Rope Thimble - Closed Body - Stainless Steel

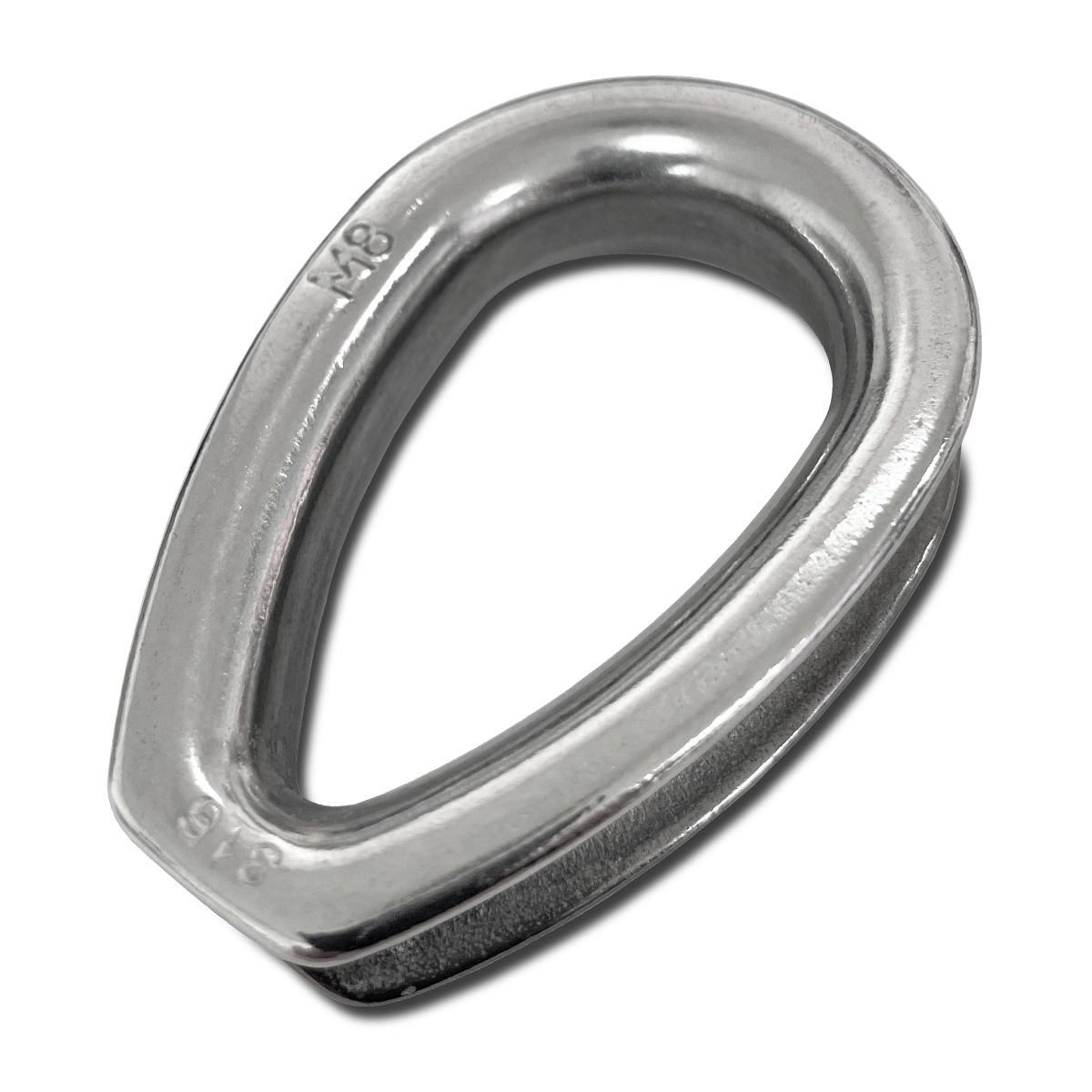

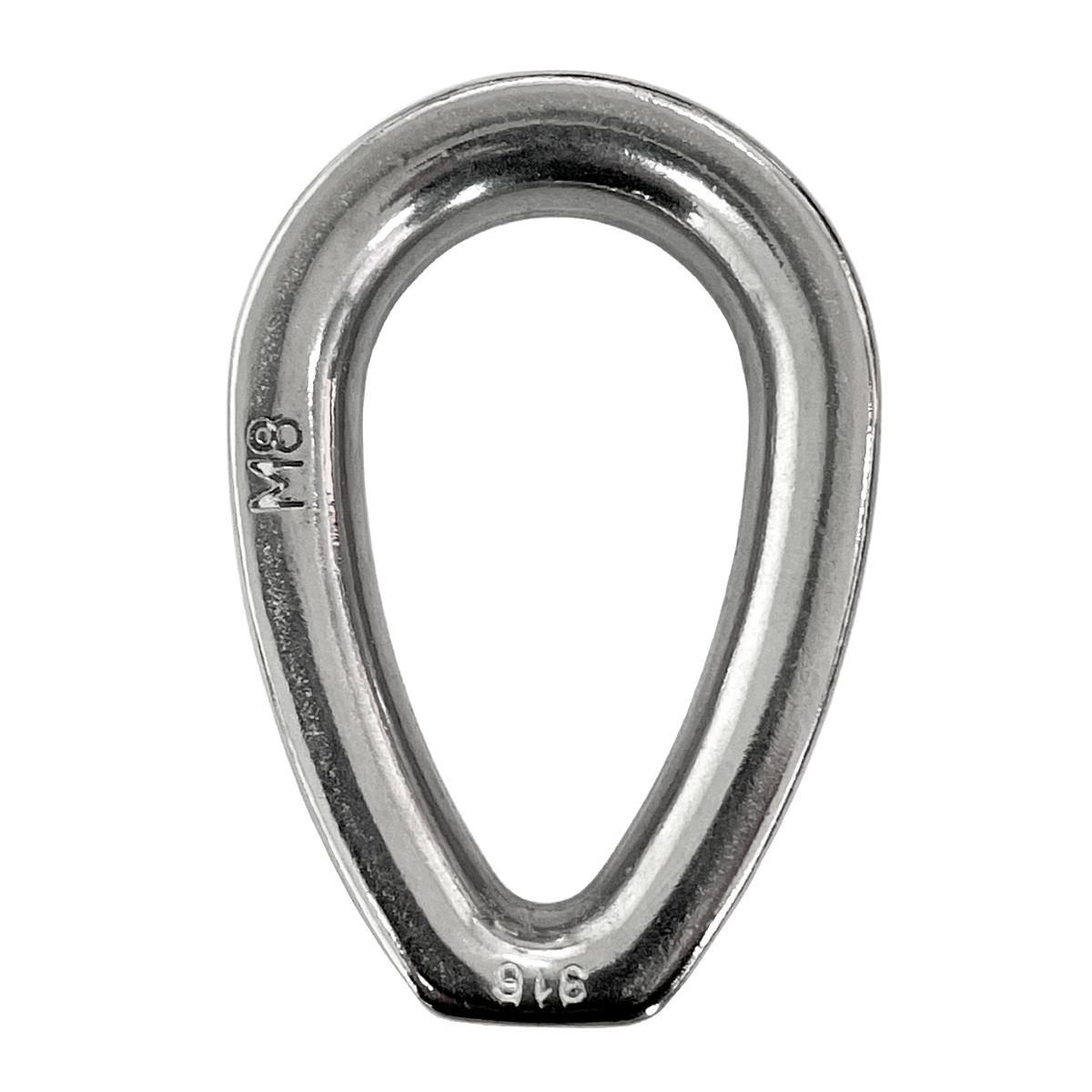

Heavy Duty Closed Body Thimble in 316 Grade Stainless Steel A4-AISI
Stainless steel thimbles with closed body for added strength for reinforced eyes in wire ropes, Always match your thimble to the same size wire rope, eg: 2mm thimble = 2mm wire rope. We recommend using 7x19 Wire Rope with these thimbles.
Wire Rope Thimble - Stainless Steel - A4 316 - Heavy Duty - Closed Body
| Options | Wire (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
K (mm) |
Code | Price (inc VAT) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 2mm Heavy Duty Thimble | 2 | 5 | 15 | 21 | 15 | 6.4 | THC-020 | £1.73 | |
| 3mm Heavy Duty Thimble | 3 | 6 | 20 | 26 | 18 | 8.4 | THC-030 | £2.05 | |
| 4mm Heavy Duty Thimble | 4 | 7 | 25 | 32 | 21 | 11 | THC-040 | £2.17 | |
| 5mm Heavy Duty Thimble | 5 | 9 | 31 | 42 | 28 | 12 | THC-050 | £2.41 | |
| 6mm Heavy Duty Thimble | 6 | 11 | 32 | 43 | 28 | 12 | THC-060 | £3.28 | |
| 8mm Heavy Duty Thimble | 8 | 10 | 41 | 58 | 43 | 13 | THC-080 | £3.95 | |
| 10mm Heavy Duty Thimble | 10 | 13 | 50 | 72 | 51 | 14 | THC-100 | £6.24 | |
| 12mm Heavy Duty Thimble | 12 | 16 | 60 | 86 | 62 | 16 | THC-120 | £8.06 | |
| 16mm Heavy Duty Thimble | 16 | 20 | 75 | 110 | 82 | 21 | THC-160 | £17.26 | |
| 19mm Heavy Duty Thimble | 19 | 24 | 90 | 124 | 94 | 31 | THC-190 | £24.74 | |
| 20/22mm H/D Thimble | 20/22 | 28 | 100 | 130 | 100 | 38 | THC-200 | £30.65 | |
| 25mm Heavy Duty Thimble | 25 | 32 | 116 | 148 | 115 | 48 | THC-250 | £43.46 |
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Key Features:
 |
316 grade stainless steel. |
Dimension Information:

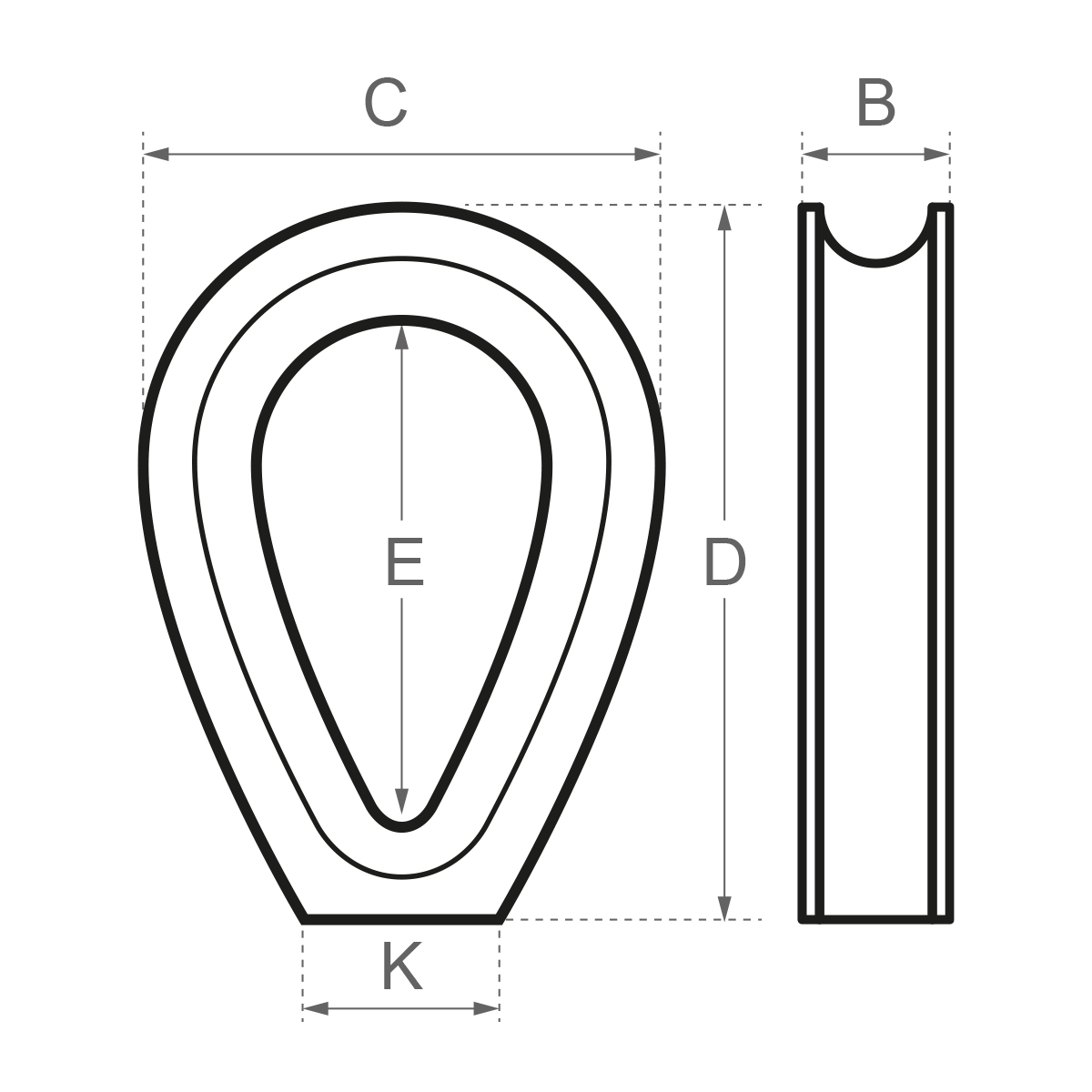

PDF Data Sheet
Download Wire Rope Thimble Dimension Information
Information
Thimbles - Stainless Steel Rope Loops
Thimbles reinforce loop eyes in wire rope, this will provide a longer lasting wear surface and help to support the wire rope eye.
Perfect for 7x19 Wire Rope.Not suitable for use with 1x19 wire Rope.
Simply loop the cable around the outer groove and secure with a ferrule or wire rope grip.
Creating a loop using a stainless steel thimble with a ferrule.
Step 1
Simply lace the dead end of your wire rope through your ferrule and loop the end of your wire rope around the outer groove of the thimble.
Step 2
Pass the end back through the ferrule and pull-in the dead end to fit tight around the thimble.
Step 3
Once in place, we recommend using a crimping/swaging tool to compress the ferrule firmly onto the rope to hold your thimble loop securely.
Once fitted we recommend you load test your wire rope assembly with a load that is equal or greater than the expected load to ensure that your loop/eye performs safely.
Using wire rope grips
Alternatively you can use Wire Rope Grips to secure your thimble in place.
This method is quick and easy to install.
For further information on installation using a wire rope grips please - click here
