Open Body Turnbuckle - Hook and Eye

Hook and Eye Turnbuckle Tensioner - Open Body - 316 Grade Stainless Steel

Traditional style open body turnbuckle with threaded hook at one end, threaded eye at the other end, manufactured from A4-AISI marine grade stainless steel.

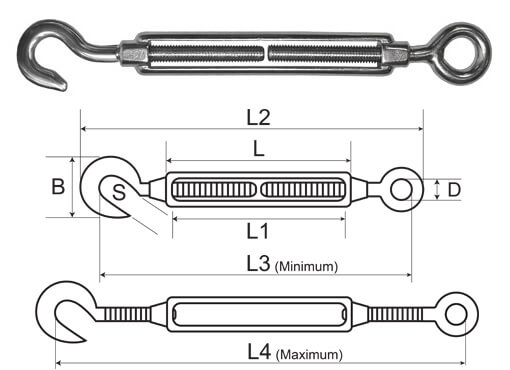

Open Body Turnbuckle Hook - Eye

Options L
(mm)
L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
B
(mm)
D
(mm)
S
(mm)
Code Price (inc VAT) Quantity
4mm Hook-Eye 58 44 94 88 128 15 6 6 OBTHE-04 £1.86
In stock
5mm Hook-Eye 70 55 120 100 150 18 8 9 OBTHE-05 £1.90
In stock
6mm Hook-Eye 90 68 140 132 198 22 10 10 OBTHE-06 £2.70
In stock
8mm Hook-Eye 120 95 192 178 260 30 14 11 OBTHE-08 £4.57
In stock
10mm Hook-Eye 150 120 240 220 320 36 16 12 OBTHE-10 £7.72
In stock
12mm Hook-Eye 200 168 295 274 425 45 18 14 OBTHE-12 £13.87
In stock
16mm Hook-Eye 250 210 390 n/a n/a 47 26 16 OBTHE-16 £31.31
In stock
20mm Hook-Eye 300 245 440 431 652 50 30 18 OBTHE-20 £56.88
In stock

Dimensions: For full product dimensions please view this page on a tablet, laptop or desktop computer.

Key Features:

316 Stainless Steel
316 grade stainless steel

Information

Traditional style hook/eye open body turnbuckle.

An affordable range of hook to eye wire rope tensioners ideal for landscaping and horticulture and also installations such as catenary cables, rigging and fencing.

  • 316 Marine Grade Stainless Steel - highly corrosion resistant.
  • Create secure tensioned fixing.
  • Quality manufactured for strength and value.
  • Easily adjusted.

Dimension Information:

PDF Data Sheet

Download Data Sheet

Download Turnbuckle Hook/Eye Dimension Information


How To Use A Turnbuckle

We recommend starting with your turnbuckle half engaged, this is so you can apply tension once fitted. Rotate the central strainer body by hand to release the threaded eye and hook ends.

Turnbuckle Installation Advice

Once your turnbuckle connected, simply tighten the turnbuckle by rotating the central strainer body until the required tension is achieved.

Tip: You can use a flat head screw driver or the claw of a hammer to help tighten the central strainer (dependent on turnbuckle size).

Turnbuckle Tension Advice

Important: If using with wire rope, it is important that the wire is NOT allowed to turn or twist as this could weaken the wire.

Did You Know

Did You know

S3i supplied this product to the family featured in the BBC One series 'DIY SOS: The Big Build' and was used as part of a life changing transformation to the home of a family in Rednal, Birmingham.
