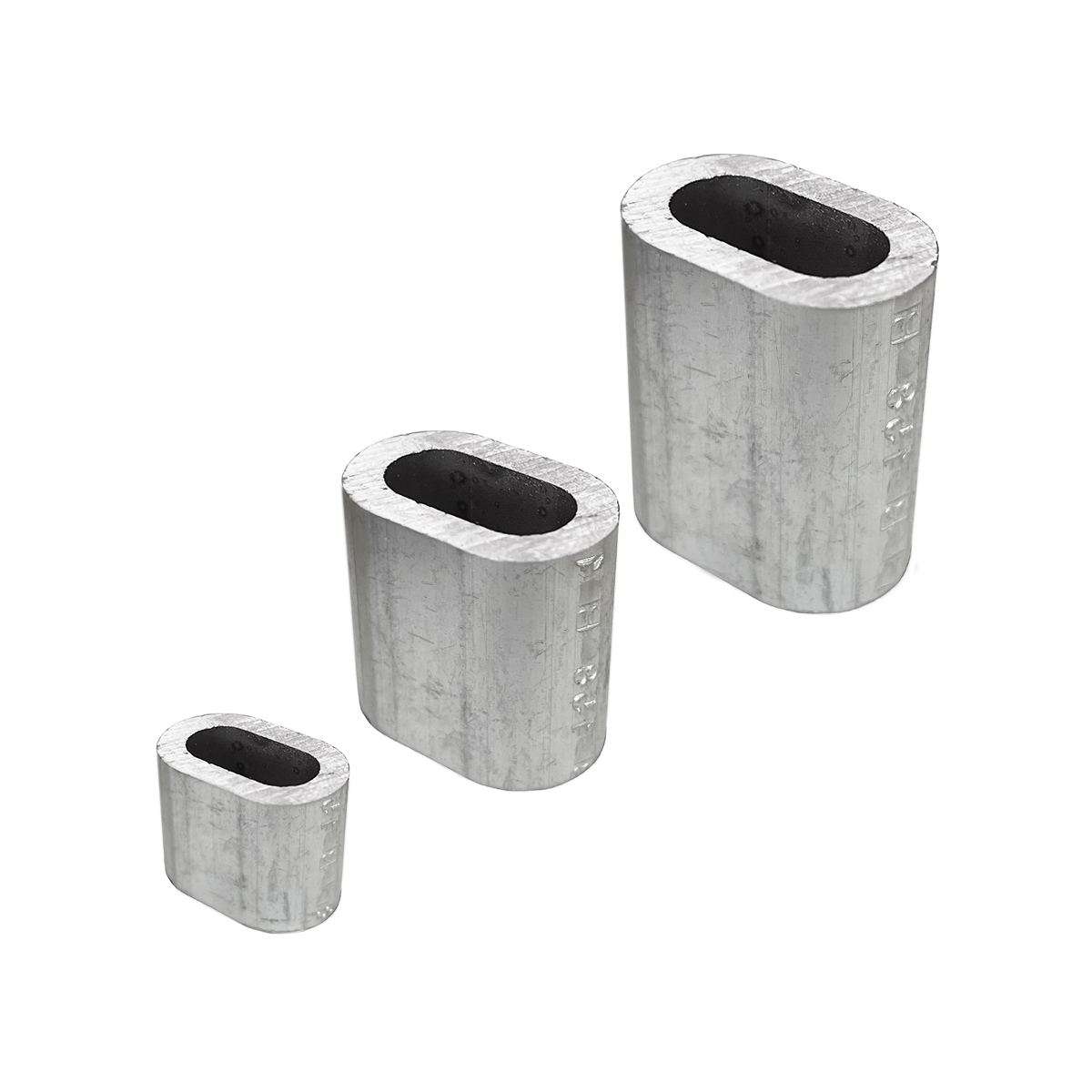

Aluminium Ferrule for Crimping Wire Rope

Aluminium Ferrule

Aluminium Ferrule for Crimping Wire Rope, Standard Type A

Choosing Your Aluminium  Ferrule

The size of the ferrule you choose relates to the wire diameter.

So, If using 4mm wire rope, please choose a 4mm ferrule.

Aluminium Ferrule - Type A

Available Options Pack Size Code Price (inc VAT)
1.5mm Ferrule 1 AF-015 £0.06
2mm Ferrule 1 AF-020 £0.06
3mm Ferrule 1 AF-030 £0.07
4mm Ferrule 1 AF-040 £0.10
5mm Ferrule 1 AF-050 £0.16
6mm Ferrule 1 AF-060 £0.35
8mm Ferrule 1 AF-080 £0.52
9mm Ferrule 1 AF-090 £0.70
10mm Ferrule 1 AF-100 £0.77

Trade Value Packs

Trade Packs - Bulk quantity packs offering you incredible value for money.

Aluminium Ferrule - Type A

Available Options Pack Size Code Price (inc VAT)
1.5mm Ferrule (100) 100 AF-015-100-TP £4.32
2mm Ferrule (100) 100 AF-020-100-TP £4.32
3mm Ferrule (100) 100 AF-030-100-TP £5.40
4mm Ferrule (100) 100 AF-040-100-TP £7.56
5mm Ferrule (100) 100 AF-050-100-TP £12.96
6mm Ferrule (100) 100 AF-060-100-TP £16.02
7mm Ferrule (100) 100 AF-070-100-TP £26.16
8mm Ferrule (100) 100 AF-080-100-TP £31.20
9mm Ferrule (100) 100 AF-090-100-TP £37.92
10mm Ferrule (100) 100 AF-100-100-TP £42.48

Key Features:

Aluminium Manufactured from Aluminium.
Crimping Tool Required Crimping Tool required.

Information

Full length aluminium ferrules & crimps for forming eyes & stops on stainless steel and galvanised wire rope.

Manufactured to conform to EN13411-3.

Also known as wire rope sleeves, cable crimps and turnback ferrules.

NB: Aluminium ferrules should not be used in marine or coastal environments with stainless steel.

Aluminium ferrules available to fit 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm and 10mm wire rope.

Sizing is like for like. E.g. Choose a 4mm Aluminium Ferrule to suit 4mm wire rope.

Aluminium Ferrule for Wire Rope - Standard Type A

How to create a simple soft eye wire rope loop.

Simple soft loops can be added to stainless steel wire by placing the aluminium ferrule over the end of the wire and looping the wire back on itself, passing back through the aluminium ferrule. Once in place use a swaging or crimping tool to compress the aluminium ferrule until it holds the wire firmly.

Creating a hard eye loop using a stainless steel thimble with an aluminium ferrule.

Step 1

Simply lace the dead end of your wire rope through your aluminium ferrule and loop the end of your wire rope around the outer groove of the thimble.

How Create A Loop - Eye With A Stainless Steel Thimble

Step 2

Pass the end back through the aluminium ferrule and pull-in the dead end to fit tight around the thimble.

Finishing A Loop - Eye Using A Thimble

Step 3

Once in place, we recommend using a crimping tool to compress the aluminium ferrule firmly onto the rope to hold your thimble loop securely.

Finishing Your Thimble Loop - Eye

Once fitted we recommend you load test your wire rope assembly with a load that is equal or greater than the expected load to ensure that your loop/eye performs safely.


Wire Rope Ferrule Downloads:

PDF Information Sheet

Download - Creating A Loop Using A Wire Rope Ferrule
