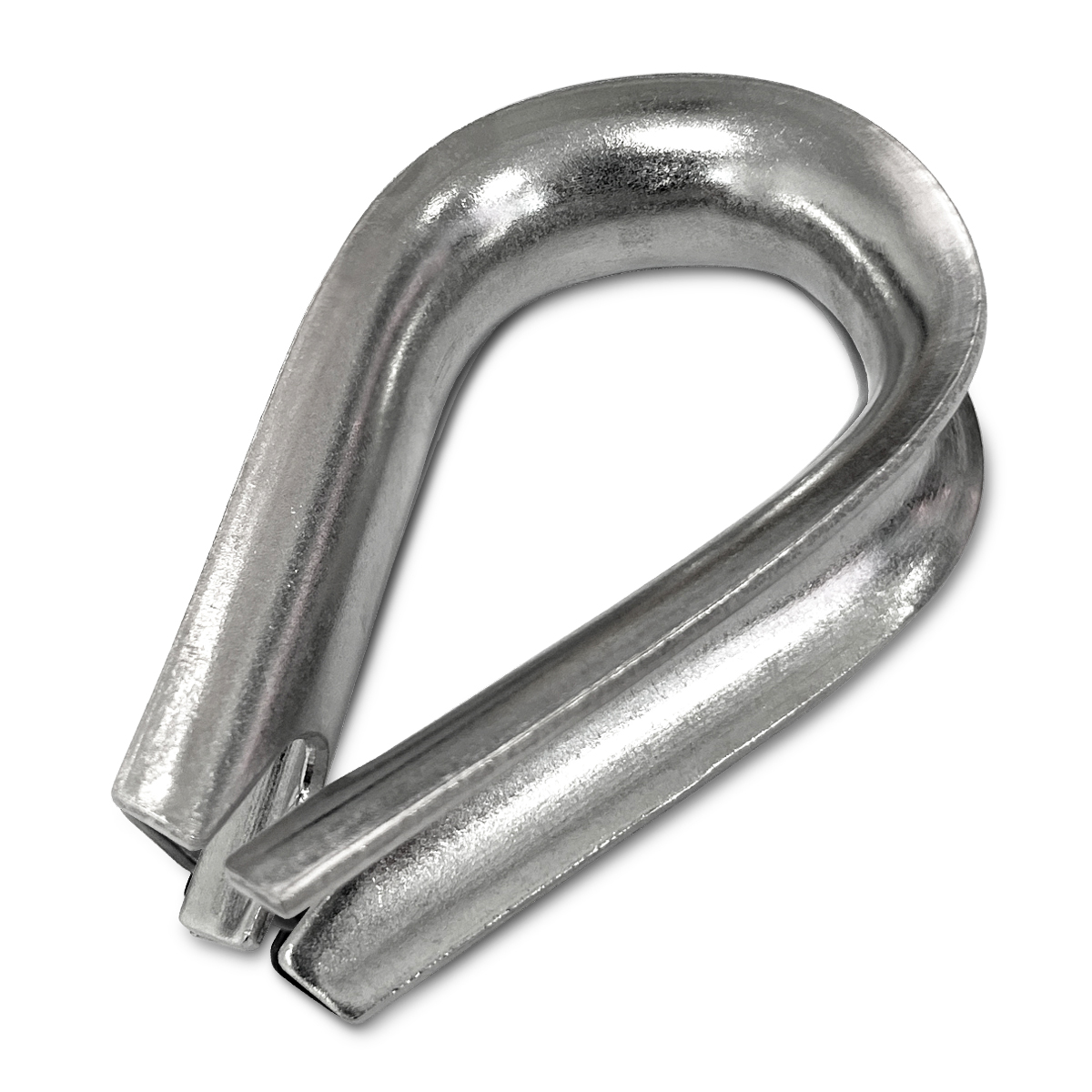

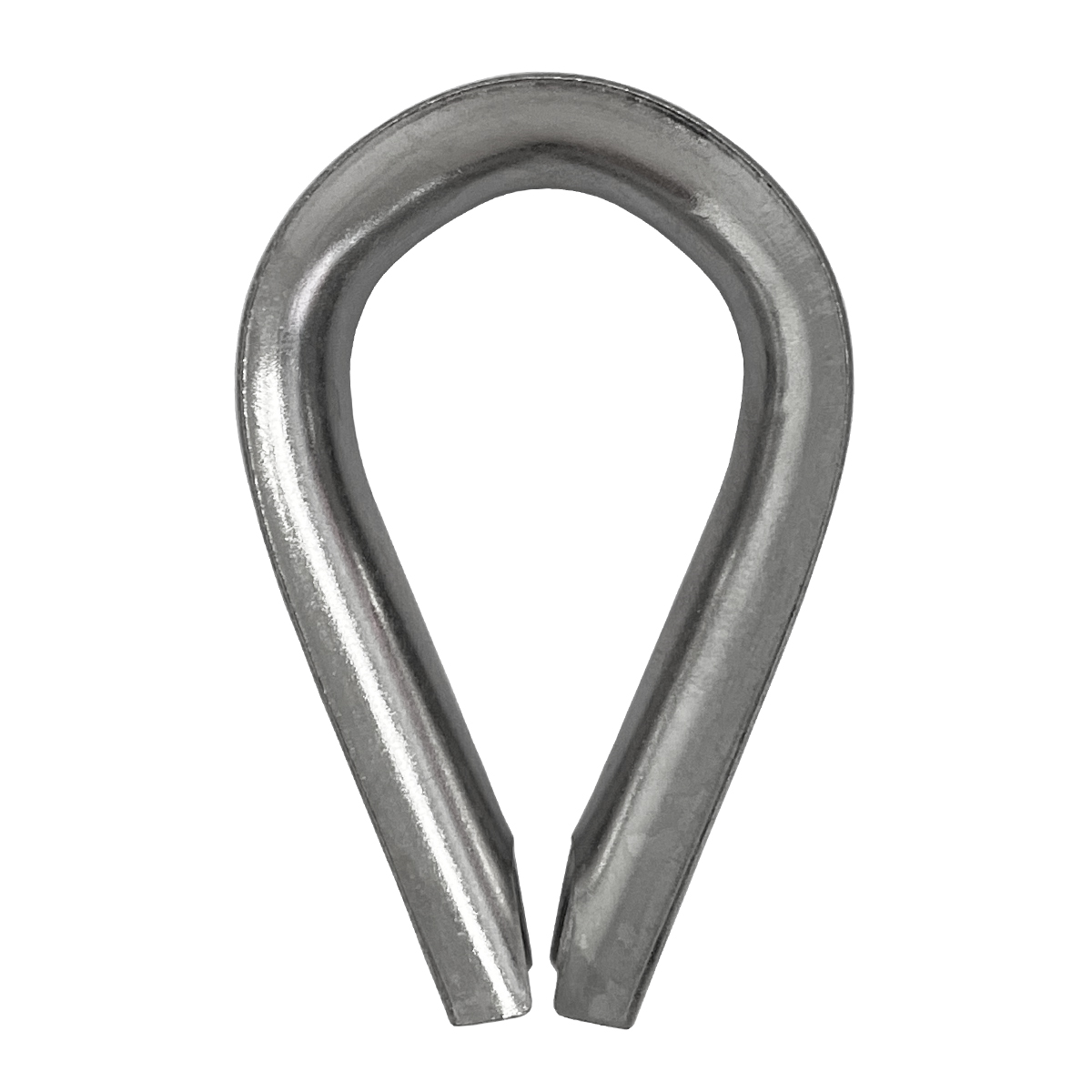

Wire Rope Thimble - Stainless Steel

Wire Rope Eyelet Thimble in 316 Grade Stainless Steel A4-AISI

Stainless steel wire rope thimbles for forming reinforced eyes in wire ropes. Always match your thimble to the same size wire rope, eg: 2mm thimble = 2mm wire rope. We recommend using 7x19 Wire Rope with these thimbles.

Wire Rope Thimble - Stainless Steel - A4 316

Options Wire
(mm)
A1
(mm)
A2
(mm)
L
(mm)
S
(mm)
Pack Size Code Price (inc VAT) Quantity
2mm Thimble 2 2 7 10 1 1 TH-020 £0.19
In stock
3mm Thimble 3 3 10 17 1 1 TH-030 £0.25
In stock
4mm Thimble 4 4 11 18 1 1 TH-040 £0.26
In stock
5mm Thimble 5 5.5 13 20 1.2 1 TH-050 £0.32
In stock
6mm Thimble 6 6.5 15 25 1.2 1 TH-060 £0.44
In stock
8mm Thimble 8 8.5 18 29 1.5 1 TH-080 £0.54
In stock
10mm Thimble 10 10.5 24 37 1.5 1 TH-100 £1.09
In stock
12mm Thimble 12 14 29 50 3 1 TH-120 £1.37
In stock
16mm Thimble 16 18 37 64 3 1 TH-160 £2.76
In stock
20mm Thimble 20 22 45 75 4 1 TH-200 £5.53
In stock
24mm Thimble 24 28 55 95 4 1 TH-240 £10.44
In stock

Dimensions: For full product dimensions and information please view this page on a tablet, laptop or desktop computer.

Trade Value Packs

Trade Packs - Bulk quantity packs offering you incredible value for money.

Wire Rope Thimble - Stainless Steel - A4 316

Options Wire
(mm)
A1
(mm)
A2
(mm)
L
(mm)
S
(mm)
Pack Size Code Price (inc VAT) Quantity
2mm Thimble (50) 2 2 7 10 1 50 TH-020-50 £7.94
In stock
3mm Thimble (50) 3 3 10 17 1 50 TH-030-50 £10.20
In stock
4mm Thimble (50) 4 4 11 18 1 50 TH-040-50 £10.78
In stock
5mm Thimble (50) 5 5.5 13 20 1.2 50 TH-050-50 £13.61
In stock
6mm Thimble (50) 6 6.5 15 25 1.2 50 TH-060-50 £18.14
In stock

Wire Rope Thimble - Stainless Steel - A4 316

Options Wire
(mm)
A1
(mm)
A2
(mm)
L
(mm)
S
(mm)
Pack Size Code Price (inc VAT) Quantity
8mm Thimble (25) 8 8.5 18 29 1.5 25 TH-080-25 £11.05
In stock
10mm Thimble (25) 10 10.5 24 37 1.5 25 TH-100-25 £22.39
In stock

Key Features:

316 Stainless Steel
316 grade stainless steel.

Dimension Information:

PDF Data Sheet

Download Data Sheet

Download Wire Rope Thimble Dimension Information


Information

Thimbles - Stainless Steel Rope Loops

Thimbles reinforce loop eyes in stainless steel wire rope, this will provide a longer lasting wear surface and help to support the wire rope eye.

Perfect for 7x19 Wire Rope.

Not suitable for use with 1x19 wire Rope.

Simply loop the cable around the outer groove and secure with a ferrule or wire rope grip.

Stainless Steel Thimble In Wire Rope

Creating a loop using a stainless steel thimble with a ferrule.

Step 1

Simply lace the dead end of your wire rope through your ferrule and loop the end of your wire rope around the outer groove of the thimble.

How Create A Loop - Eye With A Thimble

Step 2

Pass the end back through the ferrule and pull-in the dead end to fit tight around the thimble.

Finishing A Loop - Eye Using A Thimble

Step 3

Once in place, we recommend using a crimping/swaging tool to compress the ferrule firmly onto the rope to hold your thimble loop securely.

Finishing Your Thimble Loop - Eye

Once fitted we recommend you load test your wire rope assembly with a load that is equal or greater than the expected load to ensure that your loop/eye performs safely.


Using wire rope grips

Alternatively you can use Wire Rope Grips to secure your thimble in place.
This method is quick and easy to install.

For further information on installation using a wire rope grips please - click here

Thimble Installation Using A Wire Rope Grip
