Juliet Glass Balcony System - Fixings and Components

Everything You Need To Create A Stunning Juliet Balcony

Powder Coating?

We can now powder coat components to any given RAL colour of your choice.

This is a bespoke service, with all components being manufactured to order.

For further information simply contact our sales and technical team on
01302 752 504 or email us at info@s3i.co.uk

Powder Coating

Juliet Balconies

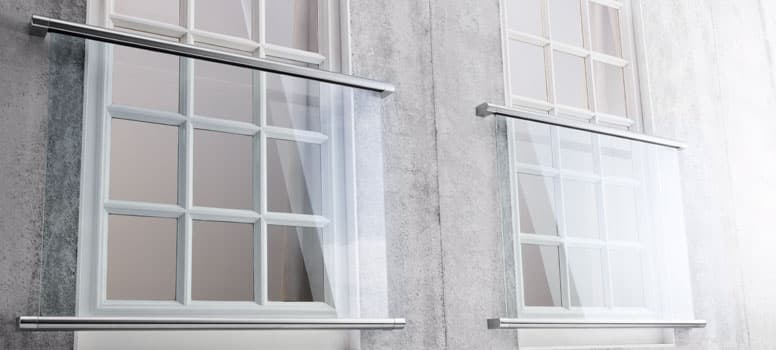

Our new fittings and glass system for Juliet balconies are ideal for a fresh transparent design in next to no time.

Available options for square and round profile wall flanges and cap rails.

Installation is quick and easy, simply glue the wall flanges to the cap rails, place the rubber profiles onto the glass and then clamp the glass into the cap rails.

The flanges mount easily onto the wall with the use of M10 anchor bolts.

Juliet Balcony Installation

The advantages of using our system:

  • Quick and easy installation thanks to gluing and clamping
  • Suitable for either horizontal and vertical fixing
  • You choose the height and width - giving you full control over your design
  • Anchors to the wall are invisible - giving you an incredible clean and modern finish
  • Available for glass thickness 8mm - 21.52mm
  • Create widths up to 2.5 metres

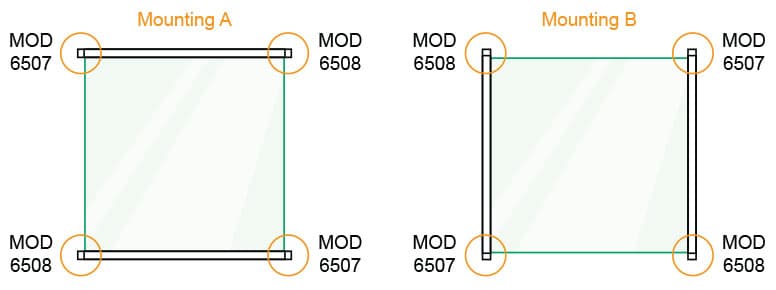

Suggested layout for Juliette balcony wall flange fittings

Juliet Balcony System Layout
Juliet Balcony System

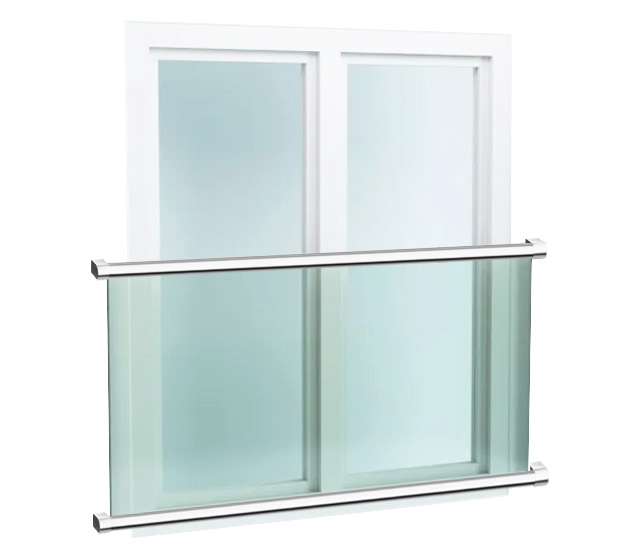

Need an idea on costs for a full Juliet Balcony?

Juliet Balcony - Tube Profile

Tubular Profile - 2 Metre Span

Includes: Handrail, Support and Glass Infill

2 metre Juliet Glass Balcony - 10mm toughened glass, 42.4mm tubular profile in 316 grade stainless steel for outdoor use.

Based on overall finished height of 1100mm.

Approx £800.00 + VAT

Excluding delivery.

Juliet Balcony - Square Profile

Square Profile - 2 Metre Span

Includes: Handrail, Support and Glass Infill

2 metre Juliet Glass Balcony - 10mm toughened glass, 40mm square profile in 316 grade stainless steel for outdoor use.

Based on overall finished height of 1100mm.

Approx £925.00 + VAT

Excluding delivery.

Still interested and want to know more? then speak to our experienced technical team on 01302 752 504 or email us at info@s3i.co.uk
