Swage Dome Head Terminal Small - 316 Stainless Steel
Dome Head Terminal - Small - Stainless Steel Wire Rope Fitting
Small dome head end fitting to be swaged or crimped onto stainless steel wire rope. Options to fit 3mm - 6mm diameter wire rope.
 |
Made In BritainStainless steel swage dome head terminals are engineered and manufactured in the UK. |
Swage Domehead Terminal - Small
| Options | Wire Ø (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
D1 (mm) |
D2 (mm) |
D3 (mm) |
Code | Price (inc VAT) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 3mm Domehead Small | 3 | 35 | 25 | 32 | 5.5 | 8 | 3.5 | SDT-030-S | £4.48 | |
| 4mm Domehead Small | 4 | 35 | 25 | 32 | 6.35 | 10 | 4.4 | SDT-040-S | £5.20 | |
| 5mm Domehead Small | 5 | 35 | 28 | 32 | 7.5 | 13 | 5.3 | SDT-050-S | £6.00 | |
| 6mm Domehead Small | 6 | 52 | 40 | 47 | 9 | 14 | 6.5 | SDT-060-S | £7.20 |
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Key Features:
 |
316 grade stainless steel. |
Information

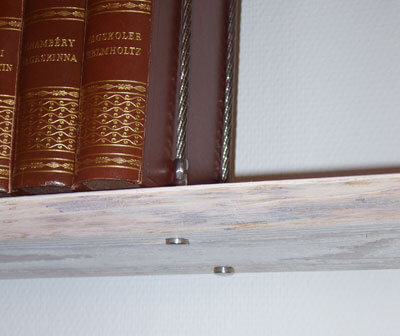

Small dome head fittings are for lighter architectural fixing of wires.
The focus of the design is size. Overall dimensions have been reduced to a minimum.
Dimension Information:
PDF Data Sheet
Download Swage Dome Head Terminal Dimension Information
