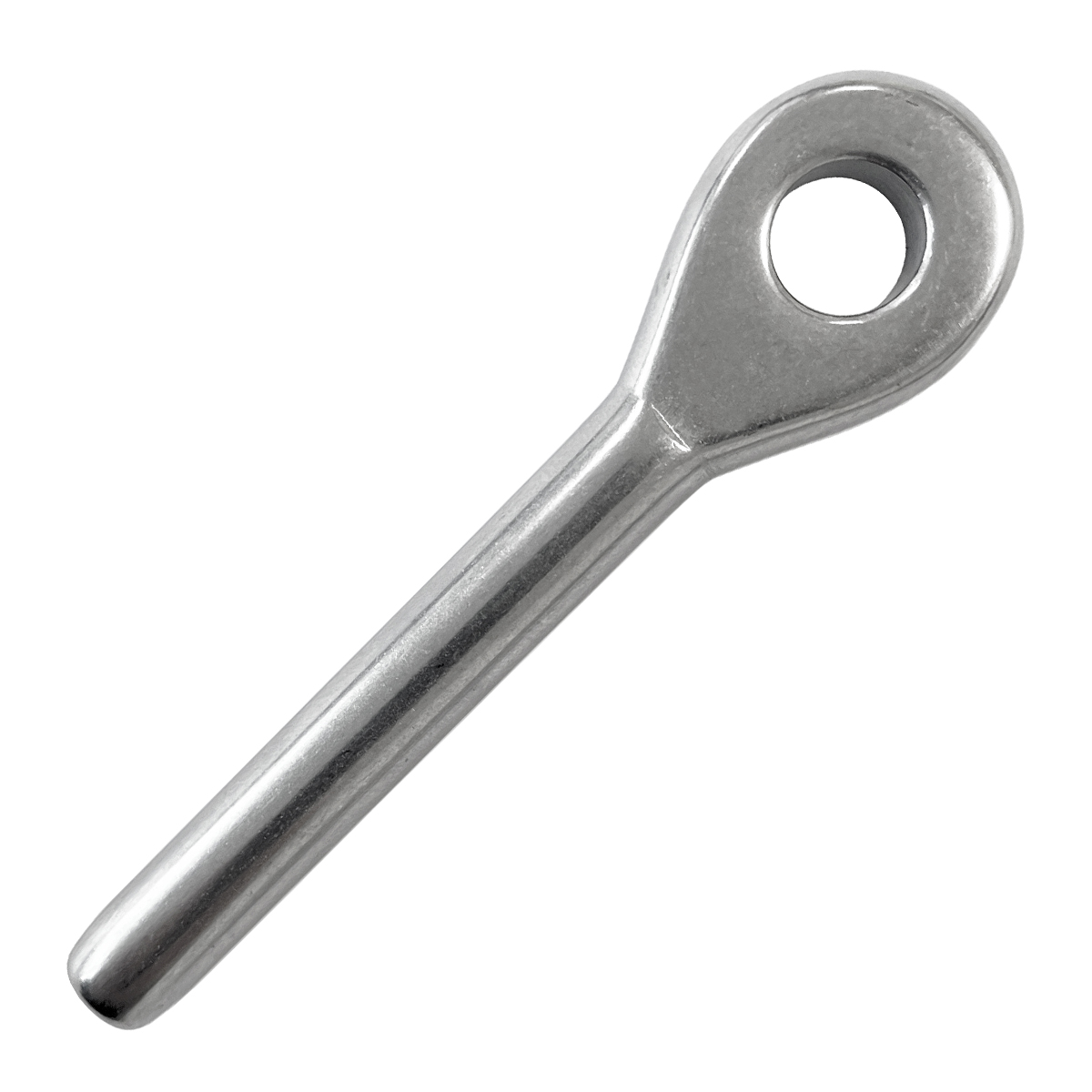

Swage Eye - Forged Style - 316 Stainless Steel A4-AISI
Swage Eye - Forged Style - Stainless Steel Wire Rope Fitting
Forged swage eye to suit stainless steel wire rope from 3mm to 16mm diameter.
![]() |
Made In Britain8mm DS, 14mm and 16mm stainless steel swage eyes are engineered and manufactured in the UK. |
Swage Eye - Forged Style
Options | Wire (mm) |
H (mm) |
B (mm) |
D (mm) |
T (mm) |
OD (mm) |
L (mm) |
Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|---|---|---|---|
3mm Swage Eye | 3 | 6.5 | 37 | 6.4 | 4 | 14 | 61 | SFE-030 | £4.06 | |
4mm Swage Eye | 4 | 8.5 | 39 | 7.5 | 6 | 19 | 74 | SFE-040 | £4.38 | |
5mm Swage Eye | 5 | 10.5 | 50 | 9 | 7 | 22 | 92 | SFE-050 | £5.10 | |
6mm Swage Eye | 6 | 12.5 | 62 | 12.5 | 8 | 28 | 100 | SFE-060 | £8.51 | |
7mm Swage Eye | 7 | 12.7 | 69 | 14 | 9 | 29 | 120 | SFE-070 | £10.36 | |
8mm DS Swage Eye | 8 | 14.28 | 80 | 16 | 11.5 | 28 | 125 | SFE-080-DS | £13.24 | |
8mm Swage Eye | 8 | 14.5 | 86 | 16 | 11 | 31 | 140 | SFE-080 | £16.14 | |
10mm Swage Eye | 10 | 16.4 | 91 | 17.8 | 12 | 37 | 163 | SFE-100 | £17.95 | |
12mm Swage Eye | 12 | 19.3 | 105 | 19.5 | 16 | 42 | 183 | SFE-120 | £31.91 | |
14mm Swage Eye | 14 | 22.2 | 156 | 25 | 21.5 | 48 | 232 | SFE-140 | £53.75 | |
16mm Swage Eye | 16 | 25.4 | 176 | 28.2 | 23.5 | 58 | 262 | SFE-160 | £77.57 |
Dimensions: For full product dimensions please view this page on a tablet, laptop or desktop computer.
Key Features:
![]() |
316 grade stainless steel. |
General Information
Our swage eyes are manufactured by electrical upset forging.
This ensures a smooth grain flow within the material and lower stress levels than other cold forging methods, leading to reduced fatigue failure.
Swage eye fittings are mainly used as an attachment to rigging screws or forks.
Our swage eyes are manufactured from 316 marine grade stainless steel to terminate 1x19 stainless steel wire, flexible wire rope, and Dyform wire.
Dimension Information:
PDF Data Sheet
Download Swage Eye - Forged - Dimension Information
