Handrail Kit - Stainless Steel - Adjust Plate Bracket

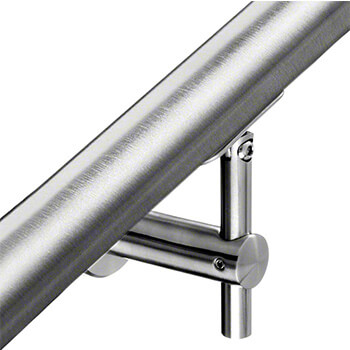

Stainless Steel Tubular Handrail with Adjustable Plate Brackets for Indoor or Outdoor Use
Each Tubular Handrail Kit comprises of: 42.4mm or 48.3mm Diameter Stainless Steel Handrail, Stainless Steel End Caps (fitted), Stainless Steel Tilt Adjust Plate Brackets and Fixing Screws.
Interior Use:
Stainless Steel Handrail, Tubular, Adjustable Plate Bracket
304 Grade
Options | Grade | L (mm) |
Ø (mm) |
No.of Brackets | L1 (mm) |
L2 (mm) |
Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|---|---|---|
1000mm, 42.4 Ø, 304 | 304 | 1000 | 42.4 | 2 | 200 | 600 | 13.102.42.100.H | £100.67 | |
1500mm, 42.4 Ø, 304 | 304 | 1500 | 42.4 | 2 | 200 | 1100 | 13.102.42.150.H | £111.71 | |
2000mm, 42.4 Ø, 304 | 304 | 2000 | 42.4 | 2 | 200 | 1600 | 13.102.42.200.H | £128.89 | |
2500mm, 42.4 Ø, 304 | 304 | 2500 | 42.4 | 3 | 200 | 1050 | 13.102.42.250.H | £158.77 | |
3000mm, 42.4 Ø, 304 | 304 | 3000 | 42.4 | 4 | 200 | 867 | 13.102.42.300.H | £220.78 | |
3500mm, 42.4 Ø, 304 | 304 | 3500 | 42.4 | 4 | 200 | 1033 | 13.102.42.350.H | £259.40 | |
4000mm, 42.4 Ø, 304 | 304 | 4000 | 42.4 | 4 | 200 | 1200 | 13.102.42.400.H | £298.03 | |
1000mm, 48.3 Ø, 304 | 304 | 1000 | 48.3 | 2 | 200 | 600 | 13.102.48.100.H | £104.17 | |
1500mm, 48.3 Ø, 304 | 304 | 1500 | 48.3 | 2 | 200 | 1100 | 13.102.48.150.H | £121.26 | |
2000mm, 48.3 Ø, 304 | 304 | 2000 | 48.3 | 2 | 200 | 1600 | 13.102.48.200.H | £138.23 | |
2500mm, 48.3 Ø, 304 | 304 | 2500 | 48.3 | 3 | 200 | 1050 | 13.102.48.250.H | £172.70 | |
3000mm, 48.3 Ø, 304 | 304 | 3000 | 48.3 | 4 | 200 | 867 | 13.102.48.300.H | £239.51 | |
3500mm, 48.3 Ø, 304 | 304 | 3500 | 48.3 | 4 | 200 | 1033 | 13.102.48.350.H | £280.36 | |
4000mm, 48.3 Ø, 304 | 304 | 4000 | 48.3 | 4 | 200 | 1200 | 13.102.48.400.H | £321.20 |
Exterior Use:
Stainless Steel Handrail, Tubular, Adjustable Plate Bracket
316 Grade
Options | Grade | L (mm) |
Ø (mm) |
No.of Brackets | L1 (mm) |
L2 (mm) |
Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|---|---|---|
1000mm, 42.4 Ø, 316 | 316 | 1000 | 42.4 | 2 | 200 | 600 | 14.102.42.100.H | £121.27 | |
1500mm, 42.4 Ø, 316 | 316 | 1500 | 42.4 | 2 | 200 | 1100 | 14.102.42.150.H | £141.79 | |
2000mm, 42.4 Ø, 316 | 316 | 2000 | 42.4 | 2 | 200 | 1600 | 14.102.42.200.H | £162.31 | |
2500mm, 42.4 Ø, 316 | 316 | 2500 | 42.4 | 3 | 200 | 1050 | 14.102.42.250.H | £205.38 | |
3000mm, 42.4 Ø, 316 | 316 | 3000 | 42.4 | 4 | 200 | 867 | 14.102.42.300.H | £281.16 | |
3500mm, 42.4 Ø, 316 | 316 | 3500 | 42.4 | 4 | 200 | 1033 | 14.102.42.350.H | £325.51 | |
4000mm, 42.4 Ø, 316 | 316 | 4000 | 42.4 | 4 | 200 | 1200 | 14.102.42.400.H | £369.86 | |
1000mm, 48.3 Ø, 316 | 316 | 1000 | 48.3 | 2 | 200 | 600 | 14.102.48.100.H | £130.16 | |
1500mm, 48.3 Ø, 316 | 316 | 1500 | 48.3 | 2 | 200 | 1100 | 14.102.48.150.H | £153.16 | |
2000mm, 48.3 Ø, 316 | 316 | 2000 | 48.3 | 2 | 200 | 1600 | 14.102.48.200.H | £176.15 | |
2500mm, 48.3 Ø, 316 | 316 | 2500 | 48.3 | 3 | 200 | 1050 | 14.102.48.250.H | £221.70 | |
3000mm, 48.3 Ø, 316 | 316 | 3000 | 48.3 | 4 | 200 | 867 | 14.102.48.300.H | £303.34 | |
3500mm, 48.3 Ø, 316 | 316 | 3500 | 48.3 | 4 | 200 | 1033 | 14.102.48.350.H | £350.14 | |
4000mm, 48.3 Ø, 316 | 316 | 4000 | 48.3 | 4 | 200 | 1200 | 14.102.48.400.H | £396.94 |
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Please Note: Delivery charge of £24.00 inc VAT applies to lengths over 1.5 metres.
This tilt adjust bracket and handrail kit is available to order on-line in 1, 1.5, 2, 2.5, 3, 3.5 and 4 metre lengths.
If you require a custom length please don't hesitate in calling us.
![Handrail Dimensions Handrail Dimensions](image/s3i/tubular-stainless-steel-handrail-dims.jpg)
Perfect for handrail installation on inclines.
Stainless steel tubular handrail with fitted end caps.
Complete with adjustable angle handrail brackets, supplied loose for installation.
Mounting screws included (Please note: wall plugs not included)
Available as either 42.4mm or 48.3mm diameter tubular handrail.
Choose either 304 grade (interior) or 316 grade (exterior) stainless steel.
Superb brushed satin finish.
![]() |
Handmade To OrderPlease allow 2 to 3 working days from order for manufacture and delivery. |
Please Note: |
|
---|---|
![]() |
Lengths over 1.5 metres will attract a delivery surcharge of £24.00 inc VAT. This applies to the United Kingdom only. |
![]() |
Lengths over 1.1 metres are not eligible for international delivery. Please contact us by phone or email and we will try and find you the best solution. |
Installation Advice
Need some help?Download and print our installation advice sheet for this tubular stainless steel handrail with tilt adjust brackets. |
![]() |
For a quick and easy installation you will need a few household tools: pencil, tape measure, spirit level, drill, screwdriver and suitable rawl/wall plugs.
You can mount your handrail to the height that suits you best.
Our recommended mounting heights are based upon the industry standard.
If mounting your handrail on a flat level we recommend a height of 1100mm from the floor to the top of the handrail.
For inclines we recommend a height of 900mm from stair to top of handrail.
![Handrail Positioning Handrail Positioning](image/s3i/tubular-handrail-positions-100.jpg)
Bracket Installation Advice
First we recommend that you mark out the bracket positions in pencil using a tape measure and spirit level onto the intended fixing surface.
1. Drill pilot holes and insert your rawl/wall plugs and fix handrail brackets securely in place.
2. Position handrail in place and secure using the screws provided.
![Handrail Installation Handrail Installation](image/s3i/tubular-handrail-installation-102.jpg)
(Please note: wall plugs not included)
Term/Symbol |
Refers to |
Relates to |
---|---|---|
316
| Stainless Steel Grade |
Suitable For Exterior Use |
304
| Stainless Steel Grade |
Suitable For Interior Use |
Ø
| Diameter |
Tube, Handrail or Fitting Diameter |
