Hydraulic Wire Rope Cutters for up to 20mm Diameter Stainless Steel Wire Rope

Hand Held Hydraulic Cutters with Gillotine Cutting Action for 20mm Stainless Steel Cable

Top quality wire rope & cable cutters, with full service and spares service

Hydraulic Wire Rope Cutter 20mm

Hydraulic Wire Cutter 20mm

Options Code Price (inc VAT) Quantity
Hydraulic Wire Cutter HC20 £656.40
Cutter Blade HC20-BLADE £75.60

Hand held hydraulic wire rope and stainless steel cable cutters are able to cut a variety of conductors, cables, wire ropes and even solid bar.

Light weight portable hydraulic wire rope cutter.

Guillotine type head shear, minimising jams.

No set-up time.

Head rotates 180 degrees, and flip top latch allows easy insertion of cable.

Ideal both for daily use and as an emergency last measure.

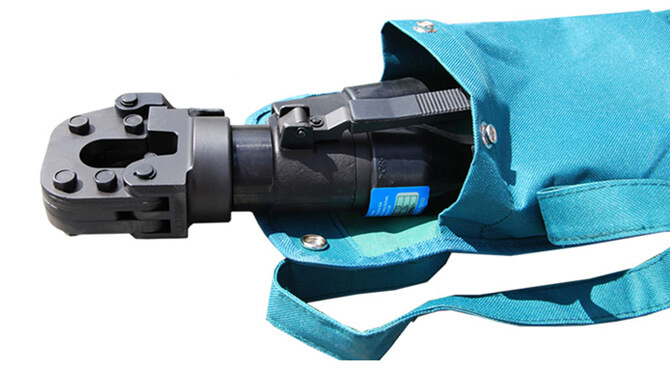

Hydraulic Wire Rope Cutter with Carry Bag

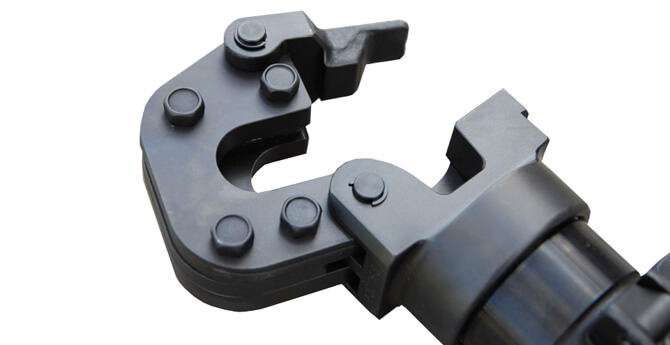

Hydraulic Wire Rope Cutter Jaw Open


Technical Information

S3i Video

Video: Hydraulic Wire Rope Cutter - S3i Group



Video demonstration of hand held hydraulic wire rope cutters.

Cutting Capacity

  • Stainless Steel Wire Rope 7x19 = 20mm
  • Stainless Steel Wire Rope 7x7 = 16mm
  • Steel bar = 16mm
  • Stainless Steel Wire Rope 1x7 = 15mm
  • Stainless Steel Wire Rope 1x19 = 16mm

Specification

  • Maximum handle load = 176N
  • Output force = 39kN
  • Single stage pumping
  • Relief valve is not equipped
  • Reservoir capacity = 70cc
  • Weighs 2.8Kg. Supplied with carrying bag.

Spares & Service

Spare blades are available from the drop down menu to the right.

We offer a full repair and service facility. Please call 01302 752 504 for details.


Product Information Downloads Here:

PDF Data Sheet

Hydraulic Cable & Wire Cutter DATA SHEET

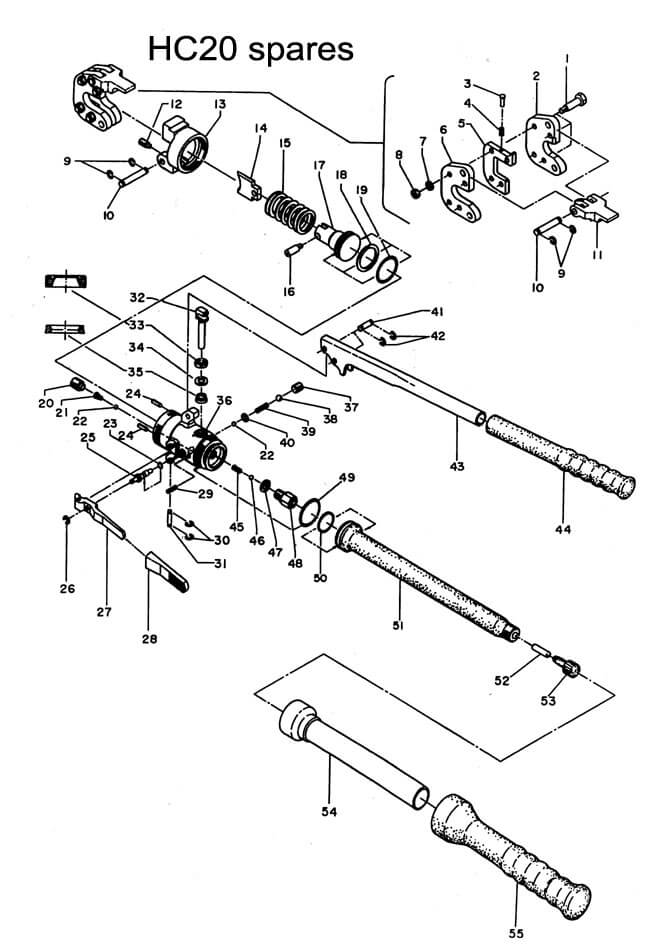

Spares diagram for HC20 Hydraulic Wire Rope Cutter

Please CLICK to view.

HC20 Hydraulic Cutter SPARES SHEET
