Home > Stainless Steel and Wooden Handrail > Stainless Steel Square Handrail Kits > Square Handrail, Angle Plate Bracket

Handrail, Angle Plate Bracket. Interior or Exterior Grade Stainless Steel. 40mm x 40mm Square Tube

Stainless Steel Square Handrail with Plate Brackets

Interior Use:

Square Stainless Steel Handrail, Angle Plate Handrail Bracket

304 Grade

Available Options Grade L
(mm)
No.of Brackets L1
(mm)
L2
(mm)
Code Price (inc VAT)
1000mm, 304 Grade 304 1000 2 200 600 13.4111.40.100.H £113.90
1500mm, 304 Grade 304 1500 2 200 1100 13.4111.40.150.H £135.38
2000mm, 304 Grade 304 2000 2 200 1600 13.4111.40.200.H £156.86
2500mm, 304 Grade 304 2500 3 200 1050 13.4111.40.250.H £195.55
*3000mm, 304 Grade 304 3000 4 200 867 13.4111.40.300.H £275.47
*3500mm, 304 Grade 304 3500 4 200 1033 13.4111.40.350.H £322.15
*4000mm, 304 Grade 304 4000 4 200 1200 13.4111.40.400.H £368.83

Exterior Use:

Square Stainless Steel Handrail, Angle Plate Handrail Bracket

316 Grade

Available Options Grade L
(mm)
No.of Brackets L1
(mm)
L2
(mm)
Code Price (inc VAT)
1000mm, 316 Grade 316 1000 2 200 600 14.4111.40.100.H £138.72
1500mm, 316 Grade 316 1500 2 200 1100 14.4111.40.150.H £165.82
2000mm, 316 Grade 316 2000 2 200 1600 14.4111.40.200.H £192.90
2500mm, 316 Grade 316 2500 3 200 1050 14.4111.40.250.H £242.29
*3000mm, 316 Grade 316 3000 4 200 867 14.4111.40.300.H £336.41
*3500mm, 316 Grade 316 3500 4 200 1033 14.4111.40.350.H £388.01
*4000mm, 316 Grade 316 4000 4 200 1200 14.4111.40.400.H £439.61

Each handrail is available to order on-line in various lengths. If you need a custom length please don't hesitate in calling us.

Handrail Dimensions

Fully prepared and ready to install

Complete with wall brackets

End caps fitted

Mounting screws included (Please note: wall plugs not included)

Satin finish (brushed)

Square section tube measuring 40mm x 40mm in satin finish

Choose either 304 (interior) grade or 316 (exterior) stainless steel

Handmade

Handmade To Order

Please allow 7 to 10 working days from order for manufacture and delivery.

In Our Opinion

*Important Information for 3m, 3.5m and 4m Square Handrail

All handrail lengths of 3 metres and over are supplied in two equal sections and are designed to be linked together with a flush fitting in-line connector.
Pre-fitted Connector and High Strength Adhesive supplied for a quick and easy installation.

Please See Below for more information.


Please Note:

International Delivery Lengths over 1.8 metres are not eligible for international delivery.
Please contact us by phone or email and we will try and find you the best solution.

Installation Advice

Need some help?

Download and print our installation advice sheet for this square handrail with angle plate brackets.

First we recommend that you mark out the bracket positions in pencil using a tape measure and spirit level onto the intended fixing surface.

You can mount your handrail to the height that suits you best.
Our recommended mounting heights are based upon the industry standard.

If mounting your handrail on a flat level we recommend a height of 1100mm from the floor to the top of the handrail.

For inclines we recommend a height of 900mm from stair to top of handrail.

Handrail Positioning

Handy Tip

Our installation team have a few handy tips which should make the installation process quick and easy:

A. Measure and mark the fixing point of the first bracket then simply drill your pilot hole, insert your rawl/wall plug and attach the bracket - Do not fully tighten at this point.

B. Attach remaining brackets to the handrail. Connect the handrail to the fixed bracket.

C. Now swing the hand rail up into the position required and mark the fixing points of the remaining brackets (using a spirit level or tape measure).

D. Once you have your bracket positions marked, simply remove the handrail an install your remaining brackets to the wall surface, ensuring they are all securely fixed in place.(see bracket installation below).

E. Finally attached handrail in place.

Handrail Installation Tip

Handrail Installation Tip

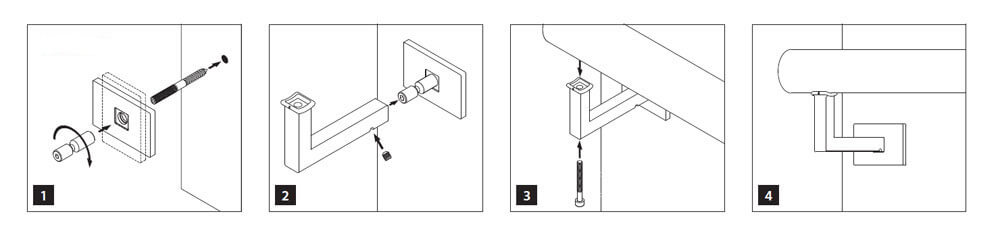

Bracket Installation Advice

1. Dismantle your bracket by releasing the grub screw on the underside of the stem. Drill pilot holes and insert your rawl/wall plugs and fix handrail bracket mounting plate in place.

2. Slide the bracket stem onto the mounting plate and secure in place with the grub screw using a hex head key.

3. Position handrail in place and secure using the screws provided.

4. Once handrail is secure check to ensure you have no movement before use.

Handrail Installation

*Square Handrails of 3 metres and over

Each 3m, 3.5m and 4m Square Handrail includes:

  • 2 x Sections of 40mm x 40mm Profile Square Handrail
  • 4 x Handrail Brackets
  • 1 x In-line Connector (pre-fitted to one section)
  • 1 x 5ml High Strength Adhesive

FAQ, How do I join my square handrail sections together?

Square In-Line Connector for 3, 3.5 and 4 Metre Handrails

1. Ensure the connection ends of the handrail tube are clean and free from dust and debris.

2. Apply the high strength adhesive to the in-line connector and insert into the open handrail tube end.

3. Remove any spillage with a cloth and allow adhesive to set (adhesive setting times are dependent on ambient temperature).

Timber Handrail Connection Advice
Term/Symbol
Refers to
Relates to
316
Stainless Steel Grade
Suitable For Exterior Use
304
Stainless Steel Grade
Suitable For Interior Use
Diameter
Tube, Handrail or Fitting Diameter
