SBS-450 Taper Lock Nut

SBS-450 Taper Lock Nut

SBS-450 Taper Lock Nut

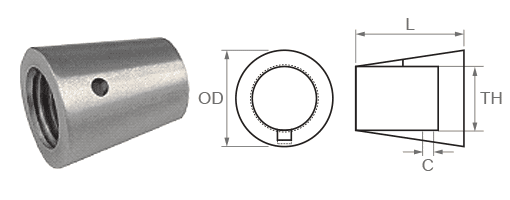

Available Options TH OD
(mm)
L
(mm)
C
(mm)
Code Price (inc VAT) (Right Hand)
M10 SBS Taper Lock Nut : M10 x 1.50 15 17 3.5 TLN-M10 £5.76
M12 SBS Taper Lock Nut : M12 x 1.75 19 20.4 3.5 TLN-M12 £6.82
M16 SBS Taper Lock Nut : M16 x 2.00 25 27.2 3.5 TLN-M16 £8.76
M20 SBS Taper Lock Nut : M20 x 2.50 30 34 3.5 TLN-M20 £14.54
M24 SBS Taper Lock Nut : M24 x 3.00 36 40.8 4 TLN-M24 £23.93
M27 SBS Taper Lock Nut : M27 x 3.00 42 45.9 4 TLN-M27 £30.90
M30 SBS Taper Lock Nut : M30 x 3.50 45 51 4 TLN-M30 £42.68
M33 SBS Taper Lock Nut : M33 x 3.50 48 56.1 5 TLN-M33 £47.74
M36 SBS Taper Lock Nut : M36 x 4.00 54 61.2 5 TLN-M36 £55.20
M39 SBS Taper Lock Nut : M39 x 4.00 60 66.3 5 TLN-M39 £67.80

Materials

SBS-450 Taper Lock Nut for tie rods manufactured from Duplex grade stainless steel. This offers high resistance to corrosion and superior mechanical properties over marine grade 316(EN10088 1.4401)

The Taper Lock Nut is tightened using a 'C' spanner and hides any excessive tie bar threads thus giving a clean, cosmetic appearance.

Designed in accordance with BS5950-1:2000 and EN 1993-1-8:2005

** NOTE ** If the forks are at maximum adjustment then half a diameter of thread will be visible after the Taper Lock Nut has been fully tightened


Download

TIE BAR BROCHURE download here
