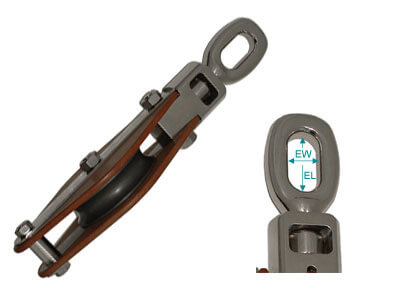

Tufnol Lifting Block - Single Sheave
Tufnol Lifting Block - Single Sheave Pulley Block - Light weight - CE Certified and Stamped
High quality general purpose single sheave lifting block, fully CE certified and stamped.
Tufnol Lifting Block Single Sheave
| Options | Rope Ø (mm) |
Sheave Ø (mm) |
Sheave Width (mm) |
SWL (Kg) |
MBL (Kg) |
EW (mm) |
EL (mm) |
Weight (Kg) |
Code | Price (inc VAT) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size 4, 1x Sheave | 16 | 83 | 19 | 1000 | 4000 | 17 | 34 | 1.06 | TBS-4 | £339.10 | |
| Size 6, 1x Sheave | 19 | 95 | 22 | 1500 | 6000 | 20 | 40 | 1.90 | TBS-6 | £443.71 | |
| Size 12, 1x Sheave | 25 | 121 | 30 | 3000 | 12000 | 28 | 50 | 5.70 | TBS-12 | £602.18 | |
| Size 14, 1x Sheave | 32 | 144 | 36 | 3500 | 14000 | 30 | 60 | 7.67 | TBS-14 | £671.88 |
Product Details: For full product dimensions and loading information please view this page on a tablet, laptop or desktop computer.
Key Features:
 |
Product has quoted safe working load. |
 |
Product has quoted break load. |
Information
Tufnol Lifting Blocks - CE Certified and Stamped
Single sheave lifting blocks are proof tested and supplied with test batch ID and full certification.
CE certified and stamped.
Construction:
This general purpose range of integral becket pulley blocks combines light weight and maximum corrosion resistance.
They are particularly useful for riggers working on high towers and lines where weight to be carried is of prime importance.
All lifting block sizes are of bolted construction and can simply be dismantled for replacement of sheaves or other damaged parts.
Normally used with high tensile lifting shackles.
The double blocks are used in pairs by electricity boards for live line working.
Download
Instructions for safe use of Tufnol Lifting Block download here
Dimension Information:
PDF Data Sheet
