Tufnol Lifting Blocks

email us

Tufnol Lifting Blocks - CE certified and stamped. Integral becket pulley blocks. Single Sheave, Double Sheave, Triple Sheave

Tufnol Lifting Blocks

Tufnol Lifting Block Single Sheave

Tufnol Lifting Block Double Sheave

Tufnol Lifting Block Single Sheave

Tufnol Lifting Block Double Sheave

Information

Tufnol Lifting Blocks - CE certified and stamped

High quality general purpose Tufnol lifting blocks.

All Tufnol lifting blocks proof tested and supplied with test batch ID and full certification.

CE certified and stamped.

Stainless steel marine grade 316 head fittings

This general purpose range of integral becket pulley blocks combines light weight and maximum corrosion resistance.

They are particularly useful for riggers working on high towers and lines where weight to be carried is of prime importance.

All Tufnol lifting block sizes are of bolted construction and can simply be dismantled for replacement of sheaves or other damaged parts.

Normally used with high tensile lifting shackles.

The double sheave Tufnol lifting blocks are used in pairs by electricity boards for live line working.

Download

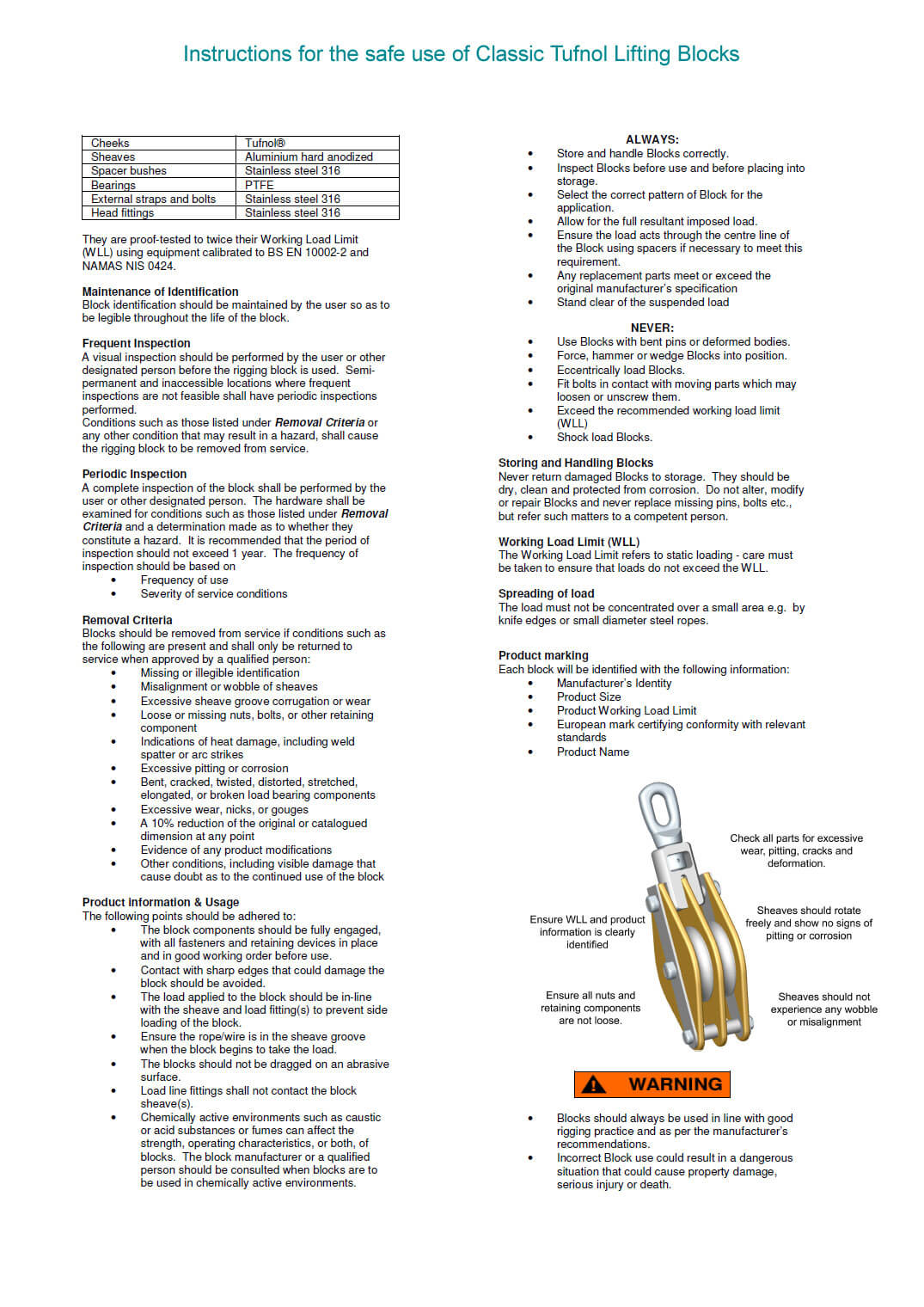

Instructions for safe use of Tufnol Lifting Block download here

Instructions for safe use

WARNING

Tufnol blocks should always be used in line with good rigging practice and as per the manufacturers recommendations.

Incorrect Block use could result in a dangerous situation that could cause property damage, serious injury or death.

PLEASE FOLLOW THE FOLLOWING INSTRUCTIONS FOR SAFE USE

Tufnol Lifting Blocks are proof-tested to twice their Working Load Limit (WLL) using equipment calibrated to BS EN 10002-2 and NAMAS NIS 0424.

Maintenance of Identification:

Lifting block identification should be maintained by the user so as to be legible throughout the life of the block.

Frequent Inspection:

A visual inspection should be performed by the user or other designated person before the rigging block is used. Semipermanent and inaccessible locations where frequent inspections are not feasible shall have periodic inspections performed. Conditions such as those listed under Removal Criteria or any other condition that may result in a hazard, shall cause the rigging block to be removed from service.

Periodic Inspection:

A complete inspection of the Tufnol lifting block shall be performed by the user or other designated person. The hardware shall be examined for conditions such as those listed under 'Removal Criteria' and a determination made as to whether they constitute a hazard. It is recommended that the period of inspection should not exceed 1 year. The frequency of inspection should be based on

Frequency of use

Severity of service conditions

Removal Criteria:

Tufnol blocks should be removed from service if conditions such as the following are present and shall only be returned to service when approved by a qualified person:

Missing or illegible identification

Misalignment or wobble of sheaves

Excessive sheave groove corrugation or wear

Loose or missing nuts, bolts, or other retaining component

Indications of heat damage, including weld spatter or arc strikes

Excessive pitting or corrosion

Bent, cracked, twisted, distorted, stretched, elongated, or broken load bearing components

Excessive wear, nicks, or gouges

A 10% reduction of the original or catalogued dimension at any point

Evidence of any product modifications

Other conditions, including visible damage that cause doubt as to the continued use of the block

Product information & Usage:

The following points should be adhered to:

The lifting block components should be fully engaged, with all fasteners and retaining devices in place and in good working order before use.

Contact with sharp edges that could damage the block should be avoided.

The load applied to the tufnol block should be in-line with the sheave and load fitting(s) to prevent side loading of the block.

Ensure the rope/wire is in the sheave groove when the block begins to take the load.

The blocks should not be dragged on an abrasive surface.

Load line fittings shall not contact the block sheave(s).

Chemically active environments such as caustic or acid substances or fumes can affect the strength, operating characteristics, or both, of blocks. The block manufacturer or a qualified person should be consulted when blocks are to be used in chemically active environments.

ALWAYS:

Store and handle lifting blocks correctly.

Inspect Blocks before use and before placing into storage.

Select the correct pattern of block for the application.

Allow for the full resultant imposed load.

Ensure the load acts through the centre line of the block using spacers if necessary to meet this requirement.

Any replacement parts meet or exceed the original manufacturers specification

Stand clear of the suspended load

NEVER:

Use blocks with bent pins or deformed bodies.

Force, hammer or wedge blocks into position.

Eccentrically load blocks.

Fit bolts in contact with moving parts which may loosen or unscrew them.

Exceed the recommended working load limit (WLL)

Shock load Blocks.

Storing and Handling Tufnol Lifting Blocks

Never return damaged blocks to storage. They should be dry, clean and protected from corrosion. Do not alter, modify or repair blocks and never replace missing pins, bolts etc., but refer such matters to a competent person.

Working Load Limit (WLL)

The Working Load Limit refers to static loading - care must be taken to ensure that loads do not exceed the WLL.

Spreading of load

The load must not be concentrated over a small area e.g. by knife edges or small diameter steel ropes.

Operating temperature

If the intended environment of the block involves elevated or depressed temperatures please refer to S3i Technical Department for advice.

Product marking Each Tufnol block will be identified with the following information:

Manufacturers Identity

Product Size

Product Working Load Limit

European mark certifying conformity with relevant standards

Product Name
