Easy Glass Up - Parapet Frameless Glass Balustrade
Aluminium Top Mount Frameless Glass Balustrade to sit neatly on Parapet Walls
|
|
|
||||||
|
|
|
||||
|
|
||||
Upgrade Your View with Easy Glass Up
The perfect solution for high quality glass balcony railings on top of low parapet walls.
Easy Glass Up system combines maximum transparency, proven safety and ease of assembly.
Its slimline base shoe, at only 80 mm high, provides an almost invisible mounting for glass infills, giving you unobstructed views.
Aesthetics and safety go hand in hand, crafted in high-grade aluminium, each profile receives a brushed anodized finish that makes additional cladding unnecessary.
The system has undergone extensive testing and received the all-important BS 6180 mark.

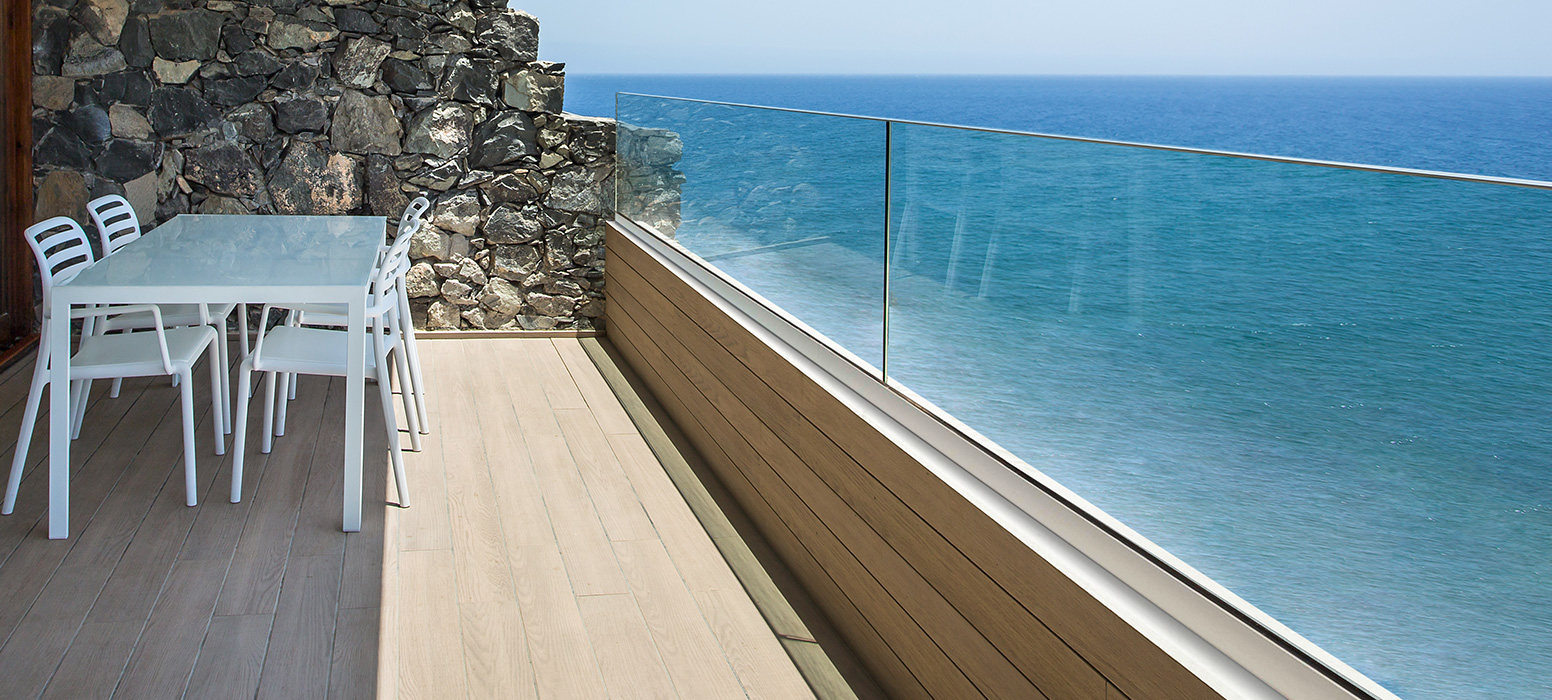

As a result, you can confidently use Easy Glass Up in settings such as apartment balconies, roof terraces, penthouses and walkways.
The 'Easy Glass Up' system is comprised of a top-mount base shoe, matching end caps and rubber sets for different glass thicknesses.
Installation of glass infill could not be easier, thanks to the ingenious Rubber and Wedge system.
This allows you mount balcony railings from inside parapet walls, without the need for assembly stands or scaffolding.
Easy Glass Up Specification
| Designed for: | Light and medium use |
| Usage: | Indoor and outdoor |
| Application: | Upright frameless glass balustrade for parapet walls |
| Infill: | Glass (up to 800 mm high) |
| Glass Thickness: | 12 to 17.52 mm |
| Top Finish: | Optional: Cap Rail, U-profile or Edge Protection |
Easy Glass Up Test Data:
PDF Data Sheet
Installation Advice - Easy Glass Up for Parapet Walls

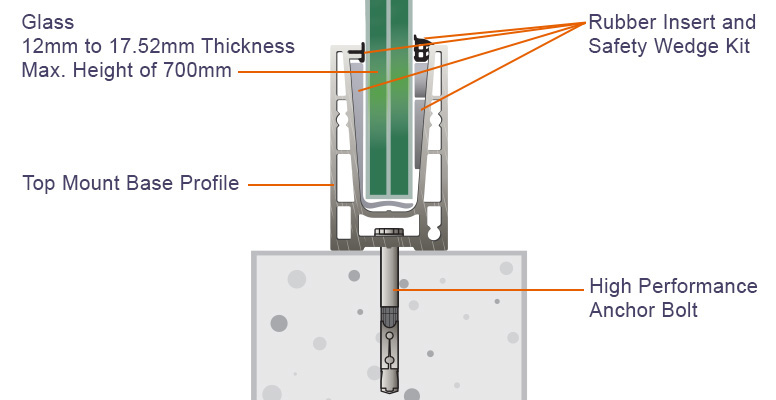

Typical Components for Installation
The Essential Partner

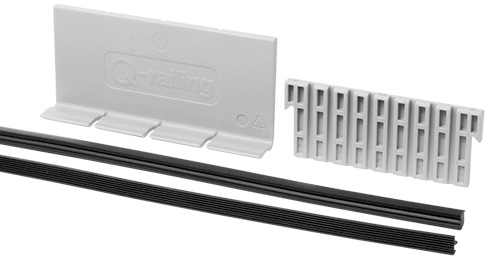

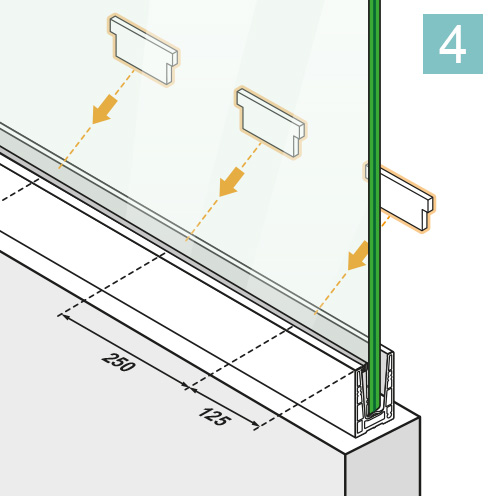

Rubber and Wedge Kit required for a secure fixing and perfect alignment of balustrade glass infill. Easy to use kits that can be trimmed to length.

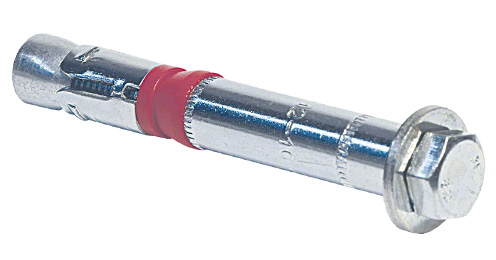

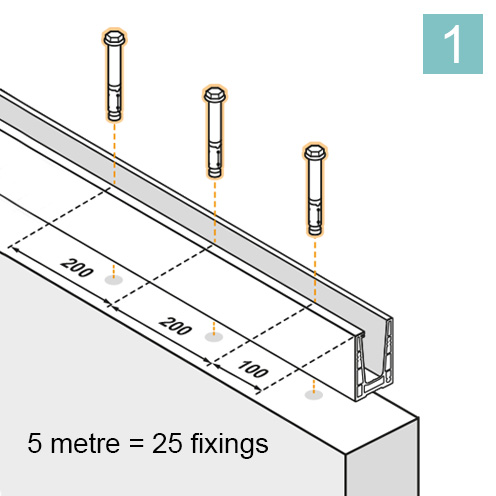

High Performance Anchor Bolt in 316 marine grade stainless steel, for mechanical mounting onto concrete and masonry.

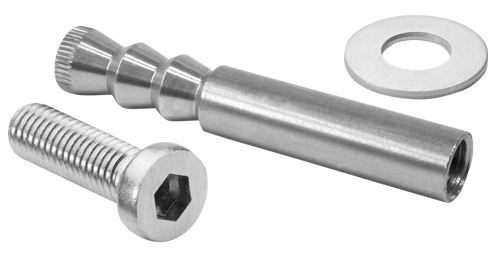

Anchor with Allen Head Bolt in 316 grade stainless steel, for chemical mounting onto concrete and masonry.

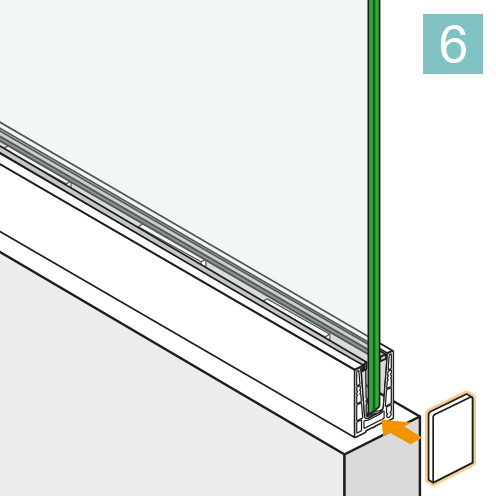

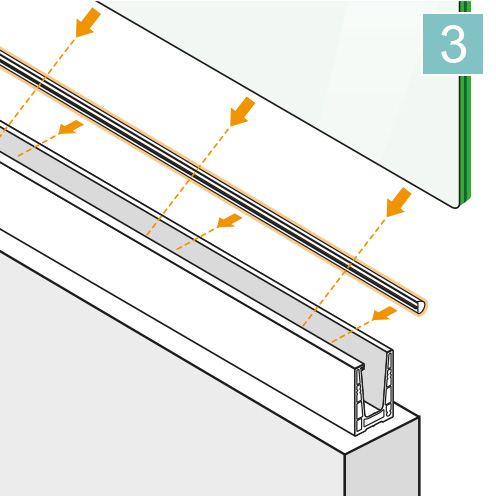

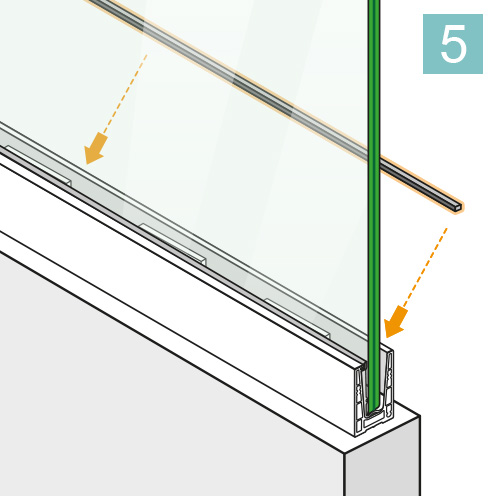

Easy Glass Up Installation
Video: Top Mount Easy Glass Up Parapet Balustrade Installation - S3i Group
Top Mount Easy Glass Up Parapet Balustrade Installation Advice. An easy to understand guide to fitting a top mount parapet balustrade with the Easy Glass Up channel system.
Easy Glass Up has been designed for a quick and straight forward installation and can be installed from the inside of parapet walls, without the need for costly and time consuming scaffolding.
Download:
Top Mount Installation - Easy Glass Up
